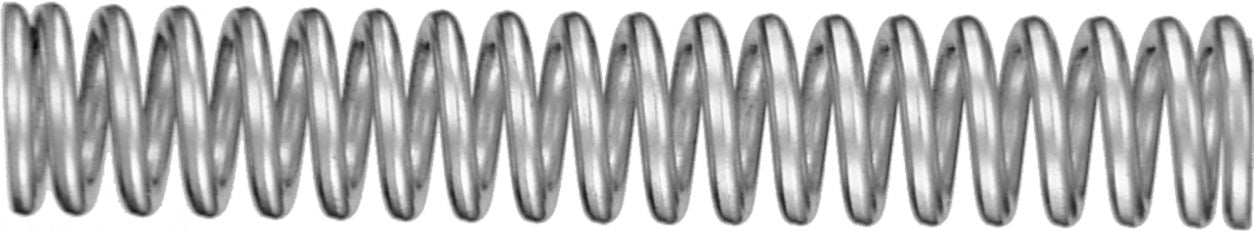

Compression Spring, Steel, 12 Wire Gauge, 15/32" ID, 11/16" OD, 4" Length, 20 Coils, 70lbs Maximum Work Load
(Pack of 2)

SKU:89594 Item#: 89594

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression and Extension Spring Kit 322Pcs

Compression and Extension Spring Kit 76Pcs

Compression Spring 1/4 x 1-1/2"

Seam Sealing Tape 8mm x 26'

Seam Sealing Tape 10mm x 26'

Marker Pen Yellow

Universal Sorbent Pad

Anti-Rattle/Squeak BRS Tape 8 x 10"

Premium Nitrile Gloves, Black, 6 Mil, Large, 100/Box

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Front Fender Push-Type Retainer Nylon 20mm

Drive Rivet Nylon M8

Seam Sealing Tape 10mm x 26'

Marker Pen Yellow

High-Strength Double Side Molding Tape 1/2" x 50'

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89594
Type	Compression Spring
O.D.	11/16 "
Length	4 "
I.D.	15/32 "
Wire Diameter	0.105 "
Wire Gauge	12
Number of Coils	20
Rate	48.8 lb./in.
Maximum Work Load	70 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.23 lb
