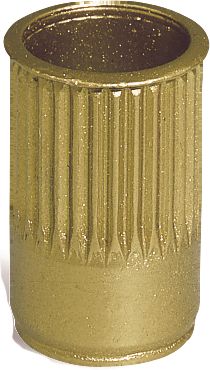

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Large Flange, Fine Thread, #10-32, 0.02 to 0.13" Grip, 0.297" Hole
(Pack of
50)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-95
Frequently Bought Together
Diamond Grip II Threaded Insert 1/4-28
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall #8-32
Couldn't load pickup availability
Diamond Grip II Threaded Insert M10-1.5
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M6
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Diamond Grip II Threaded Insert Assortment
Couldn't load pickup availability
Conversion Kit 5/16-18
Couldn't load pickup availability
Diamond Grip II and Thin Wall Installation Tool
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 51672 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 32 |
| Grip Range | 0.020 – 0.130 " |
| Flange Type | Large Flange |
| Hole Size | 0.297 " |
| Pilot Drill Size | 19/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Fine |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
