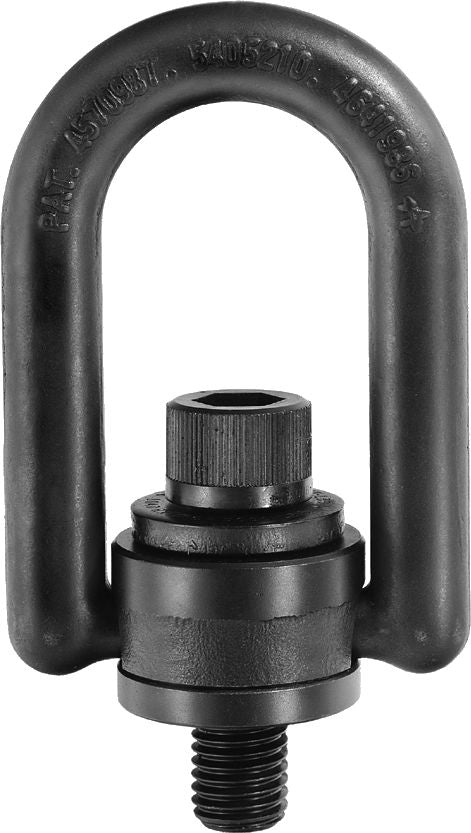

Hoist Ring, Heavy Duty®, Metric, 1,900 kg Load Limit
(Pack of
1.0)
• Material: Forged high strength 4140 alloy steel
• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
*Long bar model
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Turned Eyebolt, Zinc-Plated, 5/16" x 3"
Couldn't load pickup availability
Eyebolt, Machinery, Stainless Steel, 5/16" x 1-1/8"
Couldn't load pickup availability
Shoulder Eyebolt, Machinery, Self-Colored, 7/16" x 1-3/8"
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 1,500 kg Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 2,500 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 800 lb Load Limit
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Product Description
• Material: Forged high strength 4140 alloy steel• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
*Long bar model
Technical Specifications
| Item#: | 1423216 |
|---|---|
| Type | Heavy Duty |
| Thread Size | M16x2.0 |
| Thread Length | 25 mm |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 1,900 kg |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 80.0 N·m |

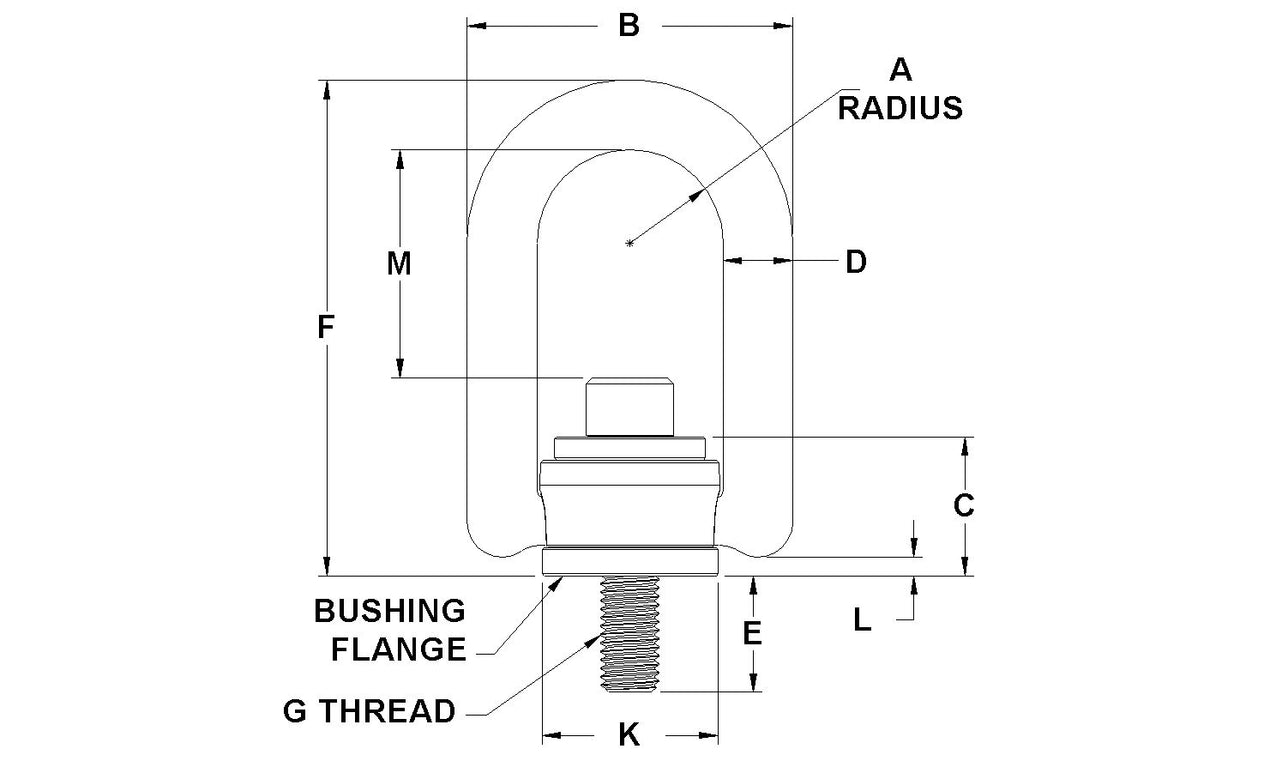

| Dimension A | 25.4 mm |
| Dimension B | 88.9 mm |
| Dimension C | 38.1 mm |
| Dimension D | 19.1 mm |
| Dimension E | 25 mm |
| Dimension F | 174.6 mm |
| Dimension G | M16 x2.0 mm |
| Dimension K | 48.0 mm |
| Dimension L | 4.4 mm |
| Dimension M | 101.7 mm |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
