Home Hardware Hoist Ring, Heavy Duty® Weld Mount, 5,000 lb Load Limit
Hardware

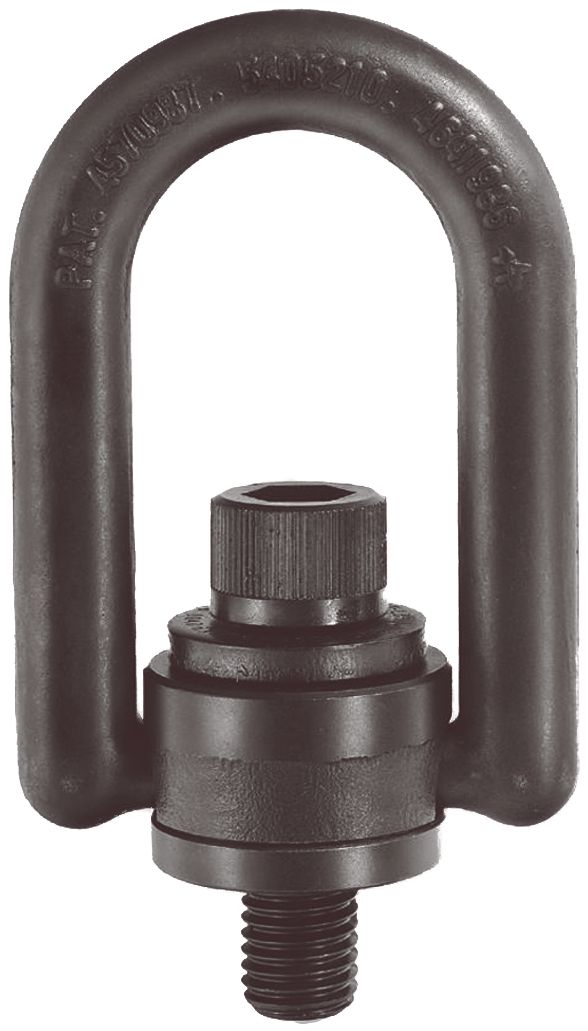

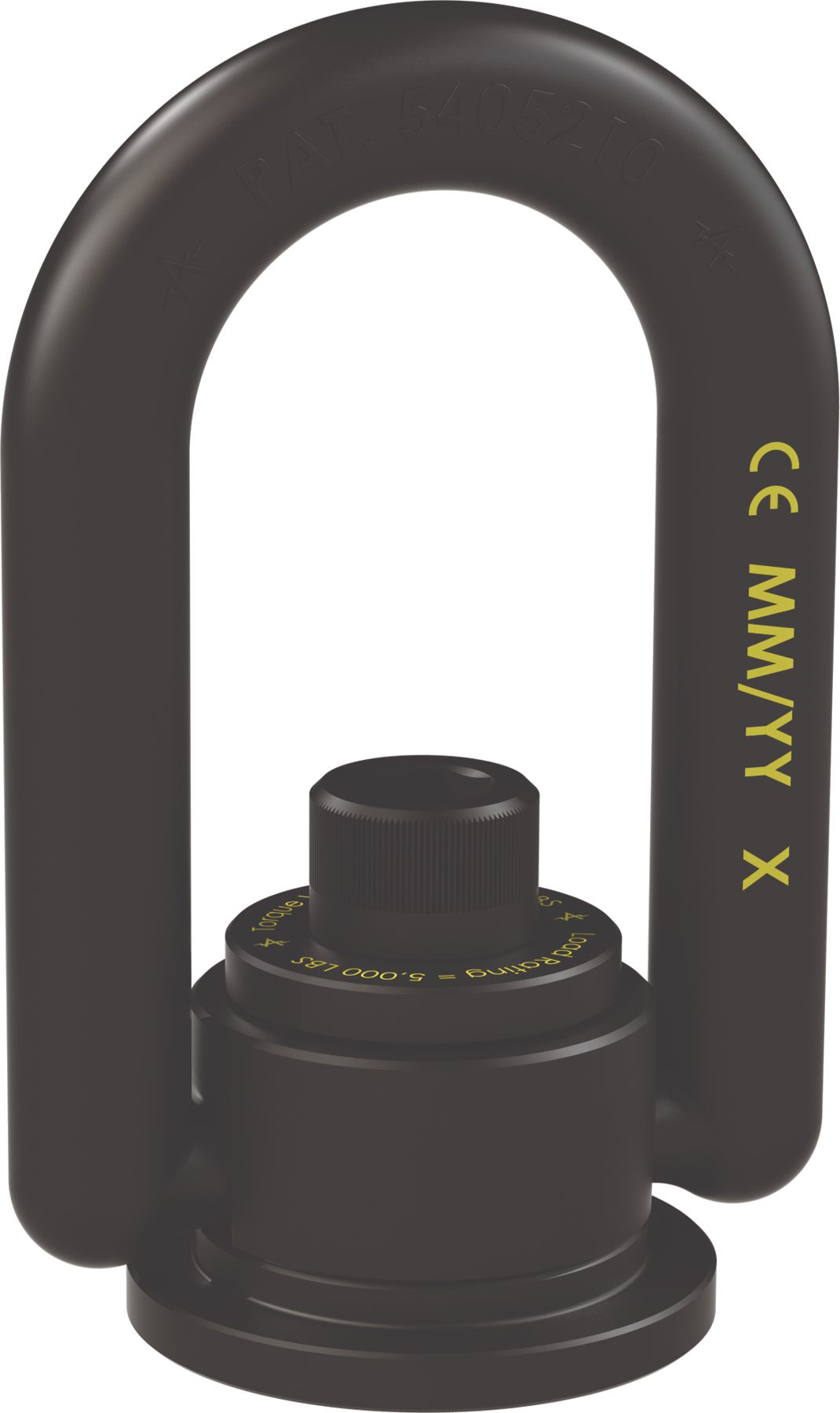

Hoist Ring, Heavy Duty® Weld Mount, 5,000 lb Load Limit
(Pack of 1)

American Drill Bushing®

• Swivel 360° and Pivot 180° Under Load
• Material: High strength 4140 alloy steel
• Safety Factor: 5:1
• Finish: Black Oxide per Mil C-13924B
• Magnetic Particle Inspected Per ASTM 1444

Read More

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Spring Link, Stainless Steel, 3/16", 120 LB WLL

Item#: 1427609

Hoist Ring, Heavy Duty®, Metric, 2,200 kg Load Limit

Item#: 1423221

Hoist Ring, Heavy Duty®, Metric, 1,500 kg Load Limit

Item#: 1423213

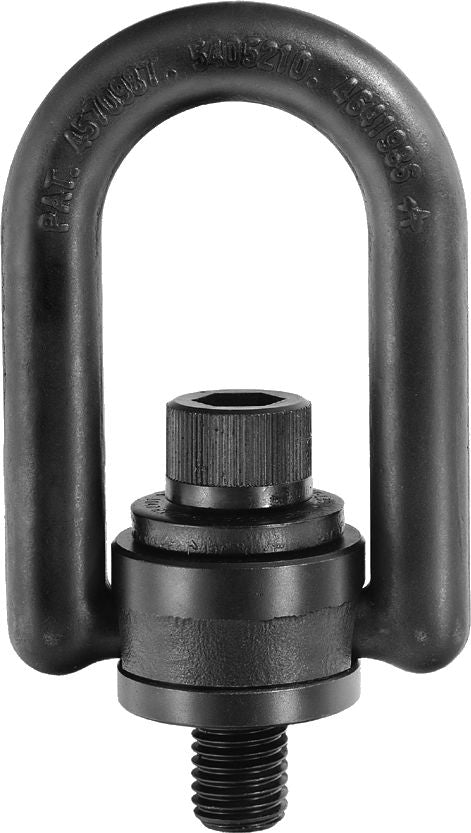

Hoist Ring, Heavy Duty®, 2,500 lb Load Limit

Item#: 1423169

Swivel Eye Bolt Snap, 3/8" Eye Size, 2-15/16" Length, Zinc Finish

Item#: 1425000

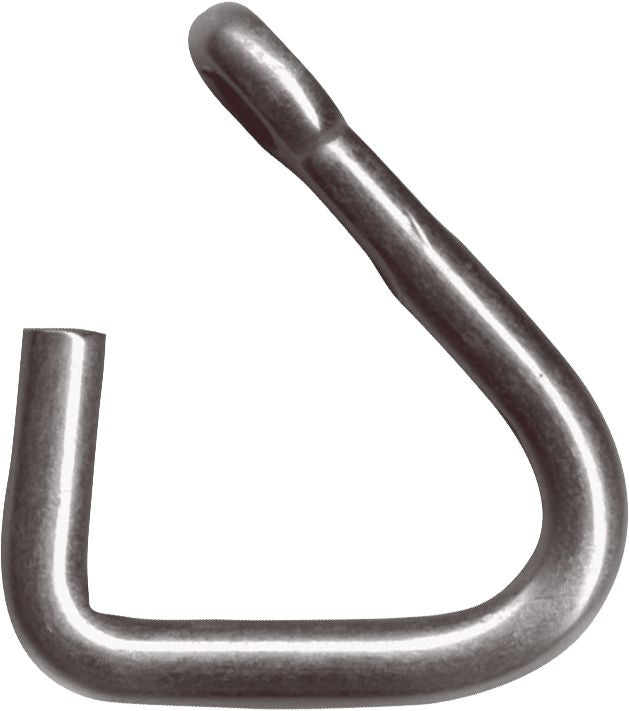

Cold Shut 3/16" Body 525 Lb Safe Load

Item#: 14588

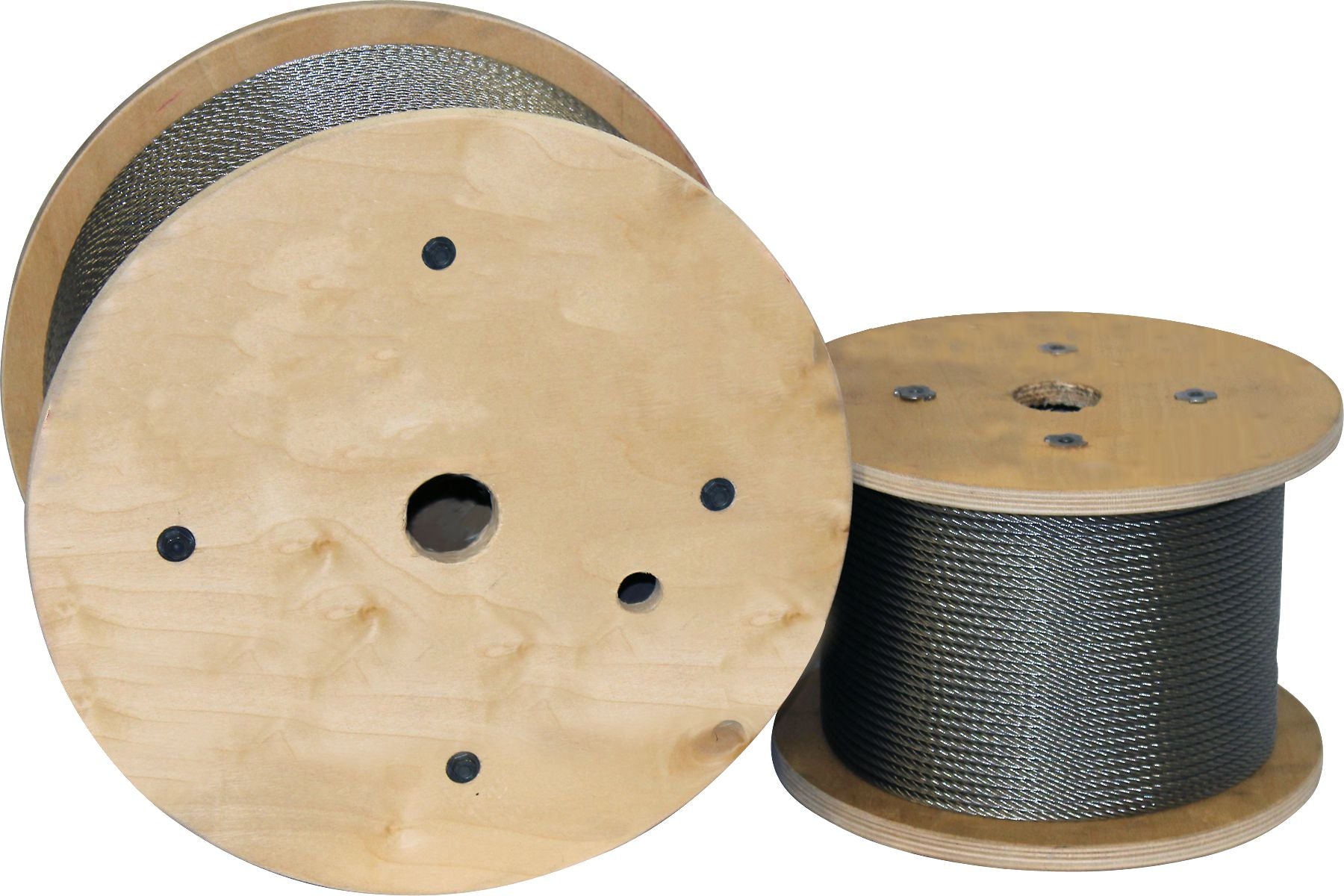

Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength

Item#: 1439615

Rear Bumper Cover Retainer Plastic 18mm

Item#: P23263

Bumper and Wheel Well Liner Push-Type Retainer

Item#: 1404768

Acrysol Paint Preparation and Auto Body Solvent

Item#: P20005

Product Description

• Swivel 360° and Pivot 180° Under Load
• Material: High strength 4140 alloy steel
• Safety Factor: 5:1
• Finish: Black Oxide per Mil C-13924B
• Magnetic Particle Inspected Per ASTM 1444

Technical Specifications

Item#: 1423435
Type Weld Mount
Material Alloy Steel
Finish Black Oxide
Working Load Limit 5,000 lb
Swivel 360 °
Pivot 180 °

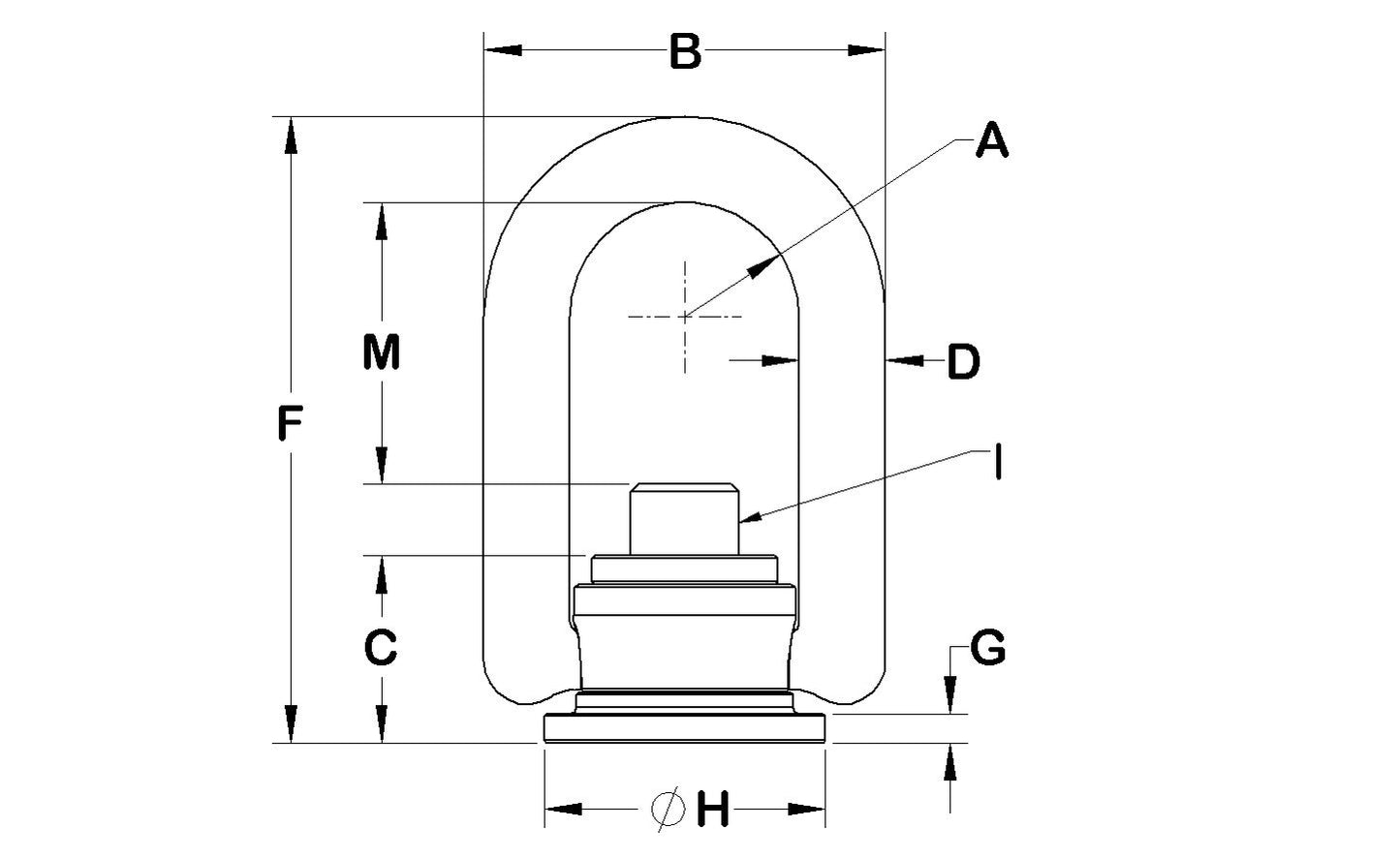

Dimension A 1.00 "
Dimension B 3.50 "
Dimension C 1.63 "
Dimension D 0.75 "
Dimension F 5.47 "
Dimension G 1/4 "
Dimension H 2.45 "
Dimension I 5/8-11 "
Dimension M 2.46 "
UNSPSC #: 24101602
TAA Compliant: Yes
