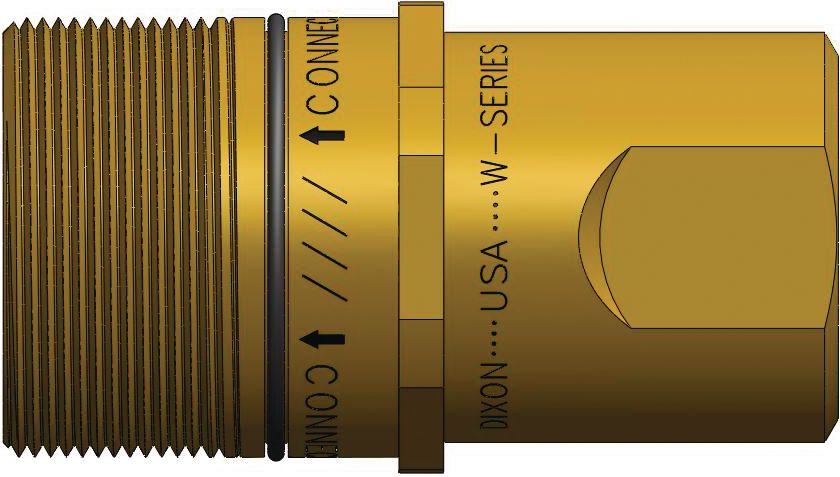

Hydraulic Quick Connect Nipple, Brass, Wing Style, 1-1/2" x 1-1/2-11-1/2, Female NPTF, 4.11" Length, 2500PSI
(Pack of
1)
SKU:20973 Item#: 20973
• Provides no-spill connections between trucks/tractors and trailers
• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series WParker: 6100 SeriesAeroquip: 5100 SeriesSnap-Tite: Series 78Faster: Series FB
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Spacer Ring Green/White
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN Green
$0.00
Couldn't load pickup availability
Braided Collet Orange
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 3/4" ORBF X 1/2" Plug
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/8" x 1/4-18
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 1/2" FPT X 1/2" Body
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
• Provides no-spill connections between trucks/tractors and trailers• Threaded wing or hex sleeves enable easy connection and disconnection under pressure
• O-ring on nipple provides “good connection” indicator and keeps contaminants out of threads when connected
• Coupler has a high-flow tubular valve designed to reduce pressure drop and turbulence, and improve flow performance
• Flanged bonded valve seal in coupler prolongs coupling life and is integral in the reduction of spillage and air inclusion
Dixon: Series WParker: 6100 SeriesAeroquip: 5100 SeriesSnap-Tite: Series 78Faster: Series FB
Technical Specifications
| Item#: | 20973 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Wing Style |
| Body Size | 1-1/2 " |
| Thread Size | 1-1/2-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 8,800 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Brass |
| Locking Mechanism | Threaded |
| Flow | 100 gal/min |
| Length | 4.11 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 2,500 PSI |
| Hex Size | 2-1/2 " |
| Maximum Diameter | 2.83 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 2.35 lb |
