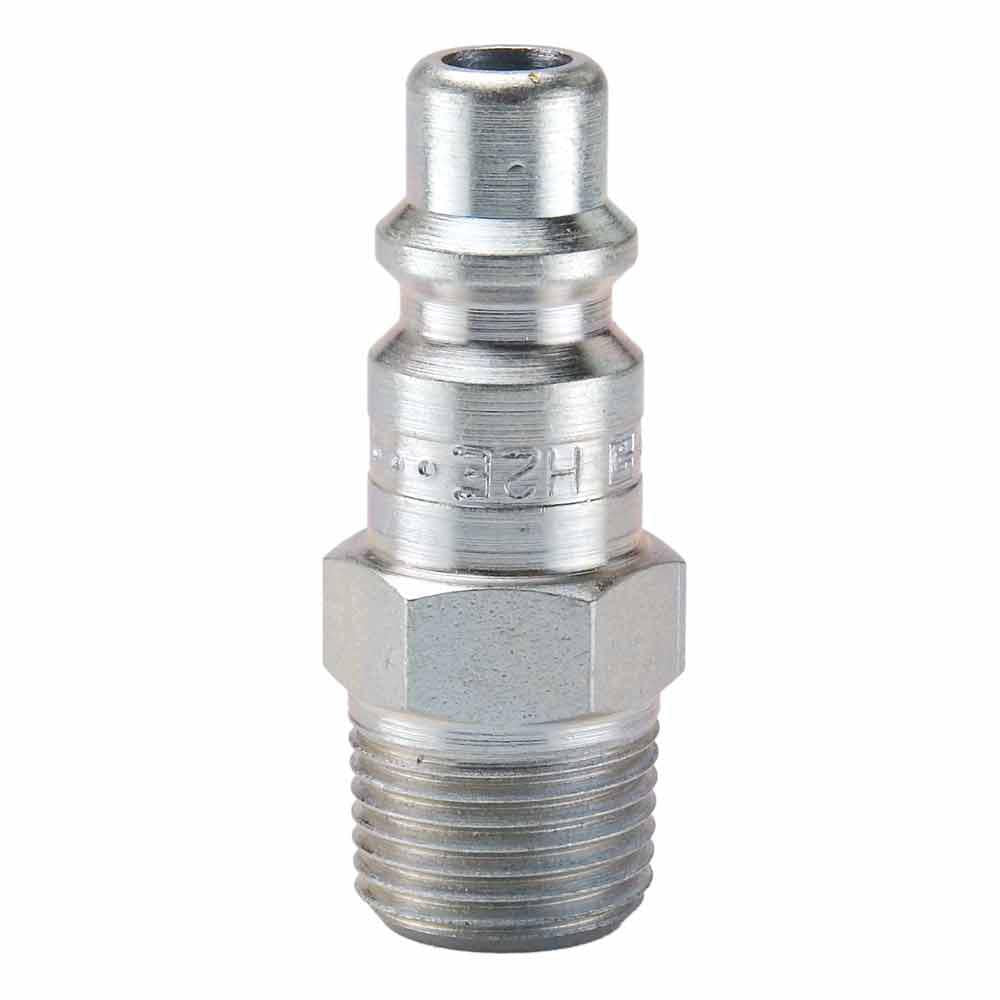

Industrial Interchange Nipples, Steel, Standard Industrial, Male NPTF, 3/8" Body Size, 1/8-27 Thread Size
(Pack of
1)
SKU:1268613 Item#: 1268613
Parker Industrial Interchange Nipples are compatible for use with 20 Series, 30 Series, HF Series, Universal or E-z-mate couplers. The standard male tip of the pneumatic industry, these nipples are interchangeable with similar nipples manufactured to the same requirements.
• Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) requirements for global interchangeability
• Steel nipples have hardened wear points and load-bearing areas
• Unvalved style nipple mates with valved couplers
• Air compressors
• Pneumatic tools
• Drop-down air lines
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Product Description
Parker Industrial Interchange Nipples are compatible for use with 20 Series, 30 Series, HF Series, Universal or E-z-mate couplers. The standard male tip of the pneumatic industry, these nipples are interchangeable with similar nipples manufactured to the same requirements.• Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) requirements for global interchangeability
• Steel nipples have hardened wear points and load-bearing areas
• Unvalved style nipple mates with valved couplers
• Air compressors
• Pneumatic tools
• Drop-down air lines
Technical Specifications
| Item#: | 1268613 |
|---|---|
| Manufacturer Model #: | H00E |
| Type | Nipple |
| Style | Standard Industrial |
| Body Size | 3/8 " |
| Thread Style | Male NPTF |
| Thread Size | 1/8-27 |
| Working Pressure | 300 PSI |
| Material | Steel |
| Length | 1.68 " |
| Hex Size | 0.62 " |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
