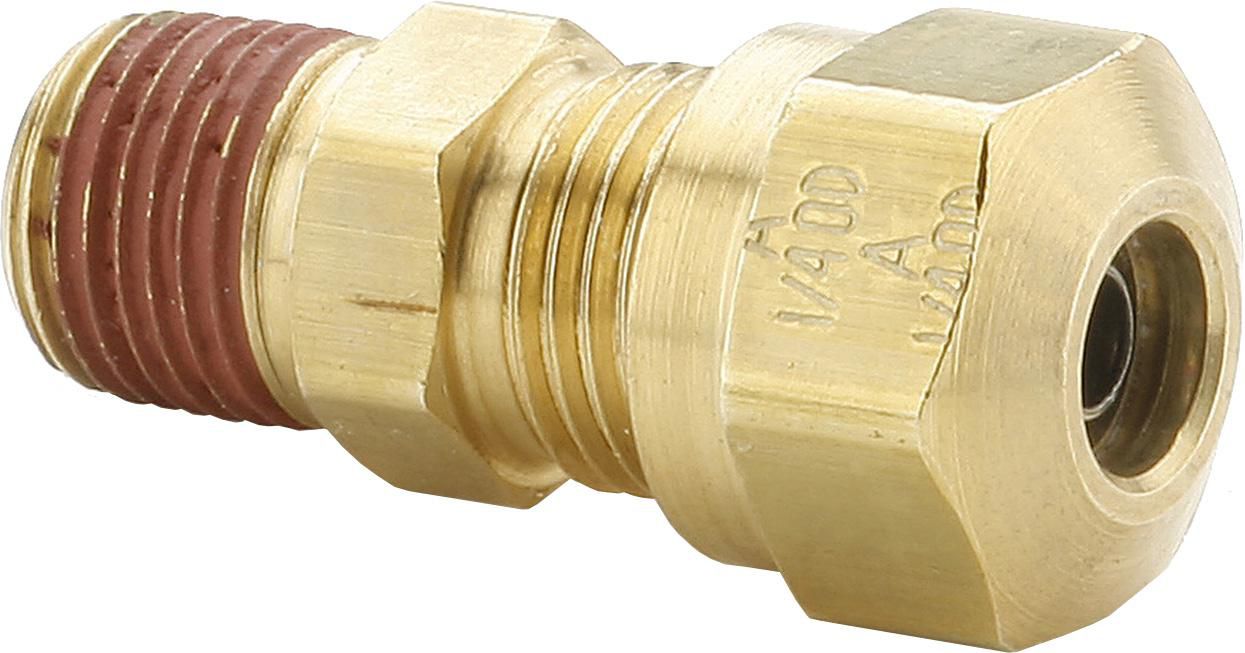

Parker DOT Brass Air Brake Compression - Nylon Male Connector 1/4x1/4
(Pack of
10)
SKU:84267P Item#: 84267P
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-10
Frequently Bought Together
Air Brake Compression Nut Brass 5/32"
$0.00
Couldn't load pickup availability
DOT Compression Spring Guard Steel 3/8"
$0.00
Couldn't load pickup availability
Parker DOT Compression - Nylon Compression Sleeve 3/8
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/4 x 1/4"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 45° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Vacuum Hose Connector Straight 1/8 x 1/8"
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Master O-Ring Assortment HNBR 33 Items 335Pcs
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 84267P |
|---|---|
| Manufacturer Model #: | 68NTA-4-4 |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Connector |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 1/4 " |
| Fitting Dimension B | 1/4-18 " |
| Parker Reference No. | 68NTA-4-4 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.645 lb |
