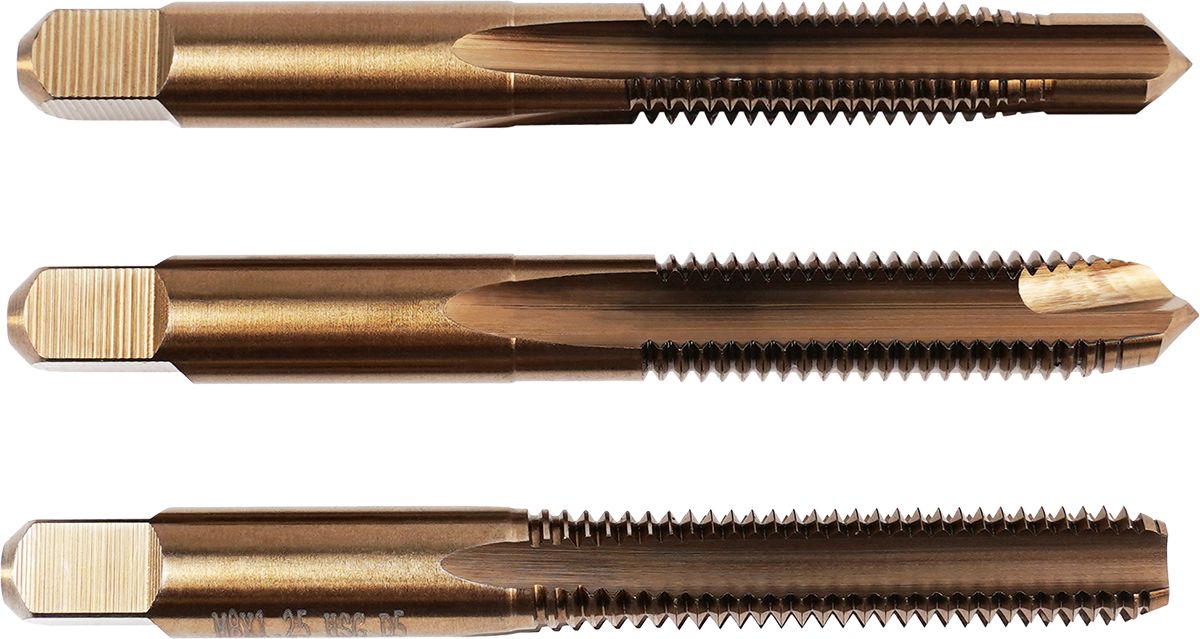

Pilotdrive Cryotap M8 x 1.25 Metric Tri-Pak, Taper, Plug, Bottoming
(Pack of
1)
SKU:DY80690813 Item#: DY80690813
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
General Purpose Reciprocating Saw Blade 8"
$0.00
Couldn't load pickup availability
Zirconium Grain Locking Grinding Disc 2"
$0.00
Couldn't load pickup availability
Reinforced Mini Cut-Off Wheel 3"
$0.00
Couldn't load pickup availability
Cryotap 5/16"-18 Tri-Pak
$0.00
Couldn't load pickup availability
Cryotap M10 x 1.5 Metric Bottoming Hand Tap
$0.00
Couldn't load pickup availability
Cryotap #4-40 Plug Hand Tap
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
HSS Combination Drill-Tap M8
$0.00
Couldn't load pickup availability
Cryotap 7/16"-20 Bottoming Hand Tap
$0.00
Couldn't load pickup availability
4-Flute HSS Hand Tap Kit M18 x 2.5
$0.00
Couldn't load pickup availability
1/4" Cordless Impact Hex Driver Charging Bundle
$0.00
Couldn't load pickup availability
8" Dual Jaw Adj and Pipe Wrench
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80690813 |
|---|---|
| Type | Metric |
| Style | Set |
| Material | CM-8™ Tool Steel |
| Diameter | M8 |
| Pitch | 1.25 mm |
| Flutes | 4 |
| Thread Length | 2-23/32 " |
| H Limits | 4 |
| Recommended Drill Size | 6.75 mm |
| Description | One each of Pilotdrive, Plug, and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.21 lb |
