Professional Thread Repair Kit M6 x 1
(Pack of
1.0)
• Solid bushing insert guarantees easy installation and allows full load use of tapped hole, ensuring protection against stress and vibration
• Thin-walled due to synchronized internal external threads – thin cross sectional area for installation in areas of limited space and clearance material
• Positive placement – a flange on the top of the insert ensures that the insert will have positive placement and cannot wind down into the newly repaired hole
• Self-locking – the bottom internal threads of the insert are cold-rolled to expand the mating external threads into the base material locking the insert in place; the locking mechanism is at the bottom of the insert

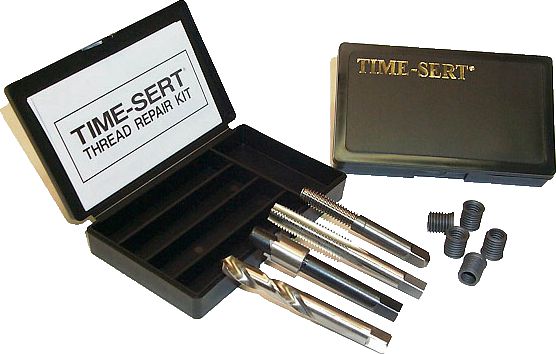

Each kit contains:
• Drill
• Counterbore
• Tap
• Insert driver
• Five steel inserts

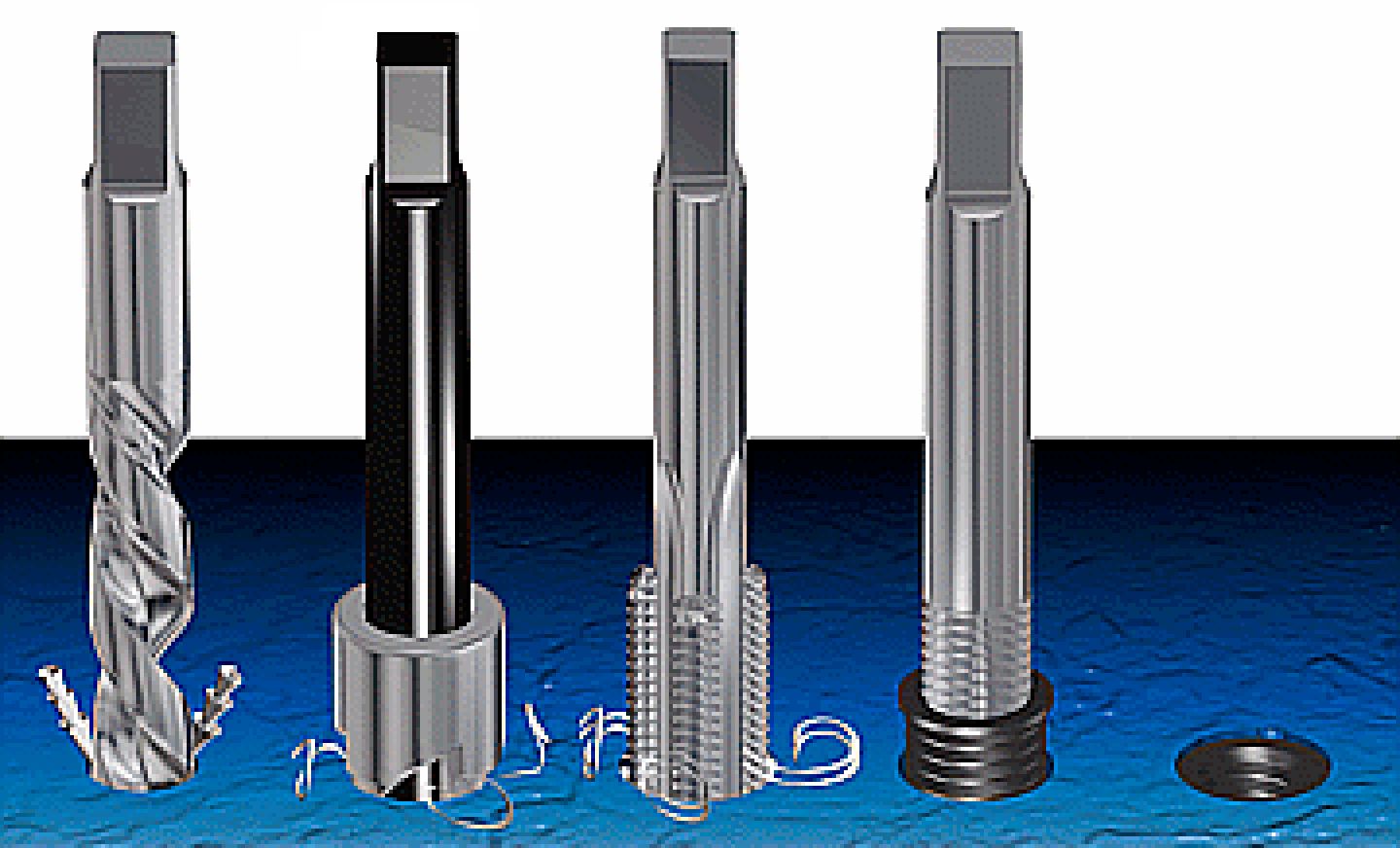

Counterbores are flat bottom. It is recommend to use step drills for production applications.
Use of a cutting fluid is recommended for drilling, counterboring and tapping. Oil must be used on the insert driver.
Tool kits are designed for a suitable tap wrench or power tools such as a drill press, electric or air hand drills and tappers.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Zirconium Grain Locking Grinding Disc 2"
Couldn't load pickup availability
Abrasive Bristle Wire Belt Steel 23mm
Couldn't load pickup availability
Polymer Wheel Rubber Eraser 30mm
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Universal External Thread Repair 5/32 to 11/16"
Couldn't load pickup availability
Universal External Thread Repair Kit 2Pcs
Couldn't load pickup availability
Universal External Thread Repair 5/32 to 11/16"
Couldn't load pickup availability
HD Locking Thread Insert Kit 5/16-20 to 1/2-20
Couldn't load pickup availability
Thread Repair Kit
Couldn't load pickup availability
Professional Thread Repair Kit M14 x 2
Couldn't load pickup availability
Wire Stripper-Cutter 6" Stainless Steel Jaws
Couldn't load pickup availability
Hex Key Set, Balldriver, Ball Hex, 9pc
Couldn't load pickup availability
Nutsetter & Bit Set, Magnetic, 22pc
Couldn't load pickup availability
Product Description
• Solid bushing insert guarantees easy installation and allows full load use of tapped hole, ensuring protection against stress and vibration• Thin-walled due to synchronized internal external threads – thin cross sectional area for installation in areas of limited space and clearance material
• Positive placement – a flange on the top of the insert ensures that the insert will have positive placement and cannot wind down into the newly repaired hole
• Self-locking – the bottom internal threads of the insert are cold-rolled to expand the mating external threads into the base material locking the insert in place; the locking mechanism is at the bottom of the insert
Each kit contains:
• Drill
• Counterbore
• Tap
• Insert driver
• Five steel inserts
Counterbores are flat bottom. It is recommend to use step drills for production applications.
Use of a cutting fluid is recommended for drilling, counterboring and tapping. Oil must be used on the insert driver.
Tool kits are designed for a suitable tap wrench or power tools such as a drill press, electric or air hand drills and tappers.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1434186 |
|---|---|
| Type | Metric |
| Material | Carbon Steel |
| Style | Thinwall |
| Thread Size Internal | M6 x 1.0 |
| Length | 9.4 mm |
| Inserts Per Kit | 5 |
| Recommended Drill Size | D |
| Recommended Tap Size | 0.290 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.2866 lb |
