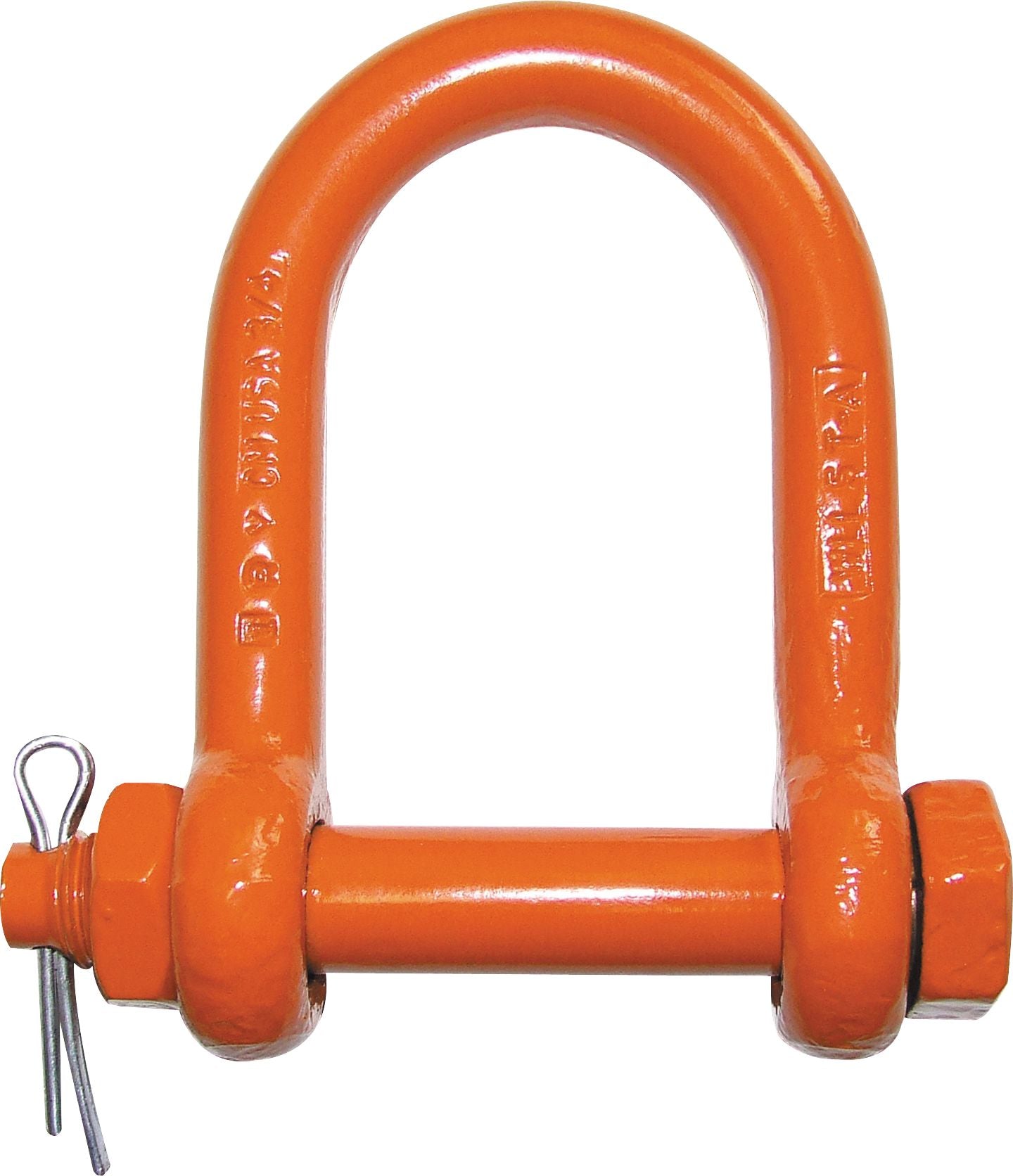

Round Pin Anchor Shackle, 1/4", 1,500 lb WLL
(Pack of
2.0)
Round pin shackles afford easy removal of the pin which is secured by a cotter pin. Perform well where the pin is subjected to a torque or twisting action. Unsatisfactory in applications where the pin is subjected to an axial load.
• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 1
• Design factor 5:1
CAUTION: Do not exceed working load limits.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Oversize Screw Pin Anchor Shackle, Stainless Steel, 3/8", 2,000 lb WLL
Couldn't load pickup availability
Shoulder Eye Bolt with Nut, Stainless Steel, 3/8", 1,000 lb WLL
Couldn't load pickup availability
Eye Bolt with Nut 1/4" x 4" Long
Couldn't load pickup availability
Cold Shut 3/16" Body 525 Lb Safe Load
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Couldn't load pickup availability
Oversize Screw Pin Anchor Shackle, Stainless Steel, 3/8", 2,000 lb WLL
Couldn't load pickup availability
Bolt, Nut and Cotter Long Reach Shackle, 1", 19,000 lb WLL
Couldn't load pickup availability
Bolt, Nut and Cotter Anchor Shackle, 1/2", 6,000 lb WLL
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Couldn't load pickup availability
Product Description
Round pin shackles afford easy removal of the pin which is secured by a cotter pin. Perform well where the pin is subjected to a torque or twisting action. Unsatisfactory in applications where the pin is subjected to an axial load.• Carbon steel bodies
• Alloy steel pins
• Working Load Limit and traceability codes shown as permanent marking on body and pin
• All shackles meet or exceed Federal Specification RRC-271F, Type IVA, Grade A, Class 1
• Design factor 5:1
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429899 |
|---|---|
| Type | Anchor Shackle |
| Style | Round Pin |
| Body Material | Carbon Steel |
| Finish | Galvanized |
| Size | 1/4 " |
| Working Load Limit | 1,500 lb |
| Pin Diameter | 5/16 " |
| Pin Material | Alloy Steel |
| Width Between Eyes | 15/32 " |
| Bow Width | 3/4 " |
| Depth | 1-1/8 " |
| UNSPSC #: | 31162803 |
| TAA Compliant: | Yes |
| Weight: | 0.25 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
