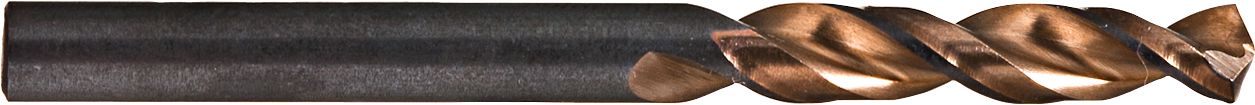

Screw Machine Drill Bit, High Speed Steel, Gold Finish, 135° Modified Split Point, 1-3/16" Flute Length, 13/64 x 2-7/16"
(Pack of
1)
SKU:P57893 Item#: P57893
• 135° modified split point
• Self-centering point eliminates drill walking
• Drill size equals the shank size
• Made in USA
• Unique modified parabolic flute for faster drilling and superior chip removal
• Shorter than ordinary jobber length drills; provides rounder holes and added stability and control in tight spaces
• For hand drilling in close quarters
• Resists “grabbing” – excellent for drilling stainless steel and socket head bolts
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Spot Weld Remover Drill Bit
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
$0.00
Couldn't load pickup availability
Abrasive Bristle Wire Belt Steel 23mm
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
$0.00
Couldn't load pickup availability
Double Flute Step Drill Bit 3/16 to 7/8"
$0.00
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 5/32"
$0.00
Couldn't load pickup availability
Screw Machine Length Drill Bit HSS #20
$0.00
Couldn't load pickup availability
Screw Machine Length Drill Bit HSS 7/64"
$0.00
Couldn't load pickup availability
Screw Machine Length Drill Bit HSS 15/32"
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
$0.00
Couldn't load pickup availability
10" Forman's Favorite Heavy-Duty Copper & Aluminum Cable Cutter Pliers
$0.00
Couldn't load pickup availability
Double Flute Step Drill Bit 1/8 to 1/2"
$0.00
Couldn't load pickup availability
Product Description
• 135° modified split point• Self-centering point eliminates drill walking
• Drill size equals the shank size
• Made in USA
• Unique modified parabolic flute for faster drilling and superior chip removal
• Shorter than ordinary jobber length drills; provides rounder holes and added stability and control in tight spaces
• For hand drilling in close quarters
• Resists “grabbing” – excellent for drilling stainless steel and socket head bolts
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | P57893 |
|---|---|
| Drill Length | Screw Machine |
| Drill Type | Fractional |
| Type | Heavy Duty |
| Material | High Speed Steel |
| Finish | Gold |
| Diameter | 13/64 " |
| Decimal Equivalent | 0.2031 " |
| Point | 135° Modified Split |
| Flute Length | 1-3/16 " |
| Shank | Straight |
| Flats | None |
| Overall Length | 2-7/16 " |
| SAE Code | TD9CSX 0.2031 H3701 / 01.19 - 02.44 |
| UNSPSC #: | 23241635 |
| TAA Compliant: | Yes |
| Weight: | 0.02 lb |
