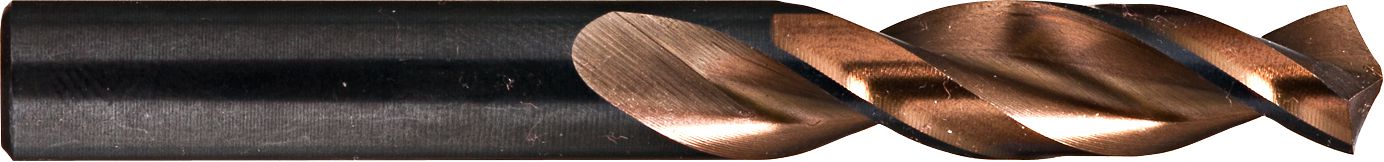

Screw Machine Drill Bit, High Speed Steel, Gold Finish, 135° Modified Split Point, 1-7/8" Flute Length, 25/64 x 3-1/4"
(Pack of
1)
SKU:P57938 Item#: P57938
• 135° modified split point
• Self-centering point eliminates drill walking
• Drill size equals the shank size
• Made in USA
• Unique modified parabolic flute for faster drilling and superior chip removal
• Shorter than ordinary jobber length drills; provides rounder holes and added stability and control in tight spaces
• For hand drilling in close quarters
• Resists “grabbing” – excellent for drilling stainless steel and socket head bolts
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Abrasive Bristle Wire Belt Steel 23mm
$0.00
Couldn't load pickup availability
Polymer Wheel Rubber Eraser 30mm
$0.00
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
$0.00
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 5/32"
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
$0.00
Couldn't load pickup availability
Double End Drill Bit 1/8"
$0.00
Couldn't load pickup availability
Screw Machine Length Drill Bit HSS 15/32"
$0.00
Couldn't load pickup availability
Screw Machine Length Drill Bit HSS 17/64"
$0.00
Couldn't load pickup availability
Screw Machine Length Drill Bit HSS 11/32"
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Double Flute Step Drill Bit 1/8 to 1/2"
$0.00
Couldn't load pickup availability
Small Index-Tend Pry Bar
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
Product Description
• 135° modified split point• Self-centering point eliminates drill walking
• Drill size equals the shank size
• Made in USA
• Unique modified parabolic flute for faster drilling and superior chip removal
• Shorter than ordinary jobber length drills; provides rounder holes and added stability and control in tight spaces
• For hand drilling in close quarters
• Resists “grabbing” – excellent for drilling stainless steel and socket head bolts
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | P57938 |
|---|---|
| Drill Length | Screw Machine |
| Drill Type | Fractional |
| Type | Heavy Duty |
| Material | High Speed Steel |
| Finish | Gold |
| Diameter | 25/64 " |
| Decimal Equivalent | 0.3906 " |
| Point | 135° Modified Split |
| Flute Length | 1-7/8 " |
| Shank | Straight |
| Flats | None |
| Overall Length | 3-1/4 " |
| SAE Code | TD9CSX 0.3906 H3701 / 01.88 - 03.25 |
| UNSPSC #: | 23241635 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
