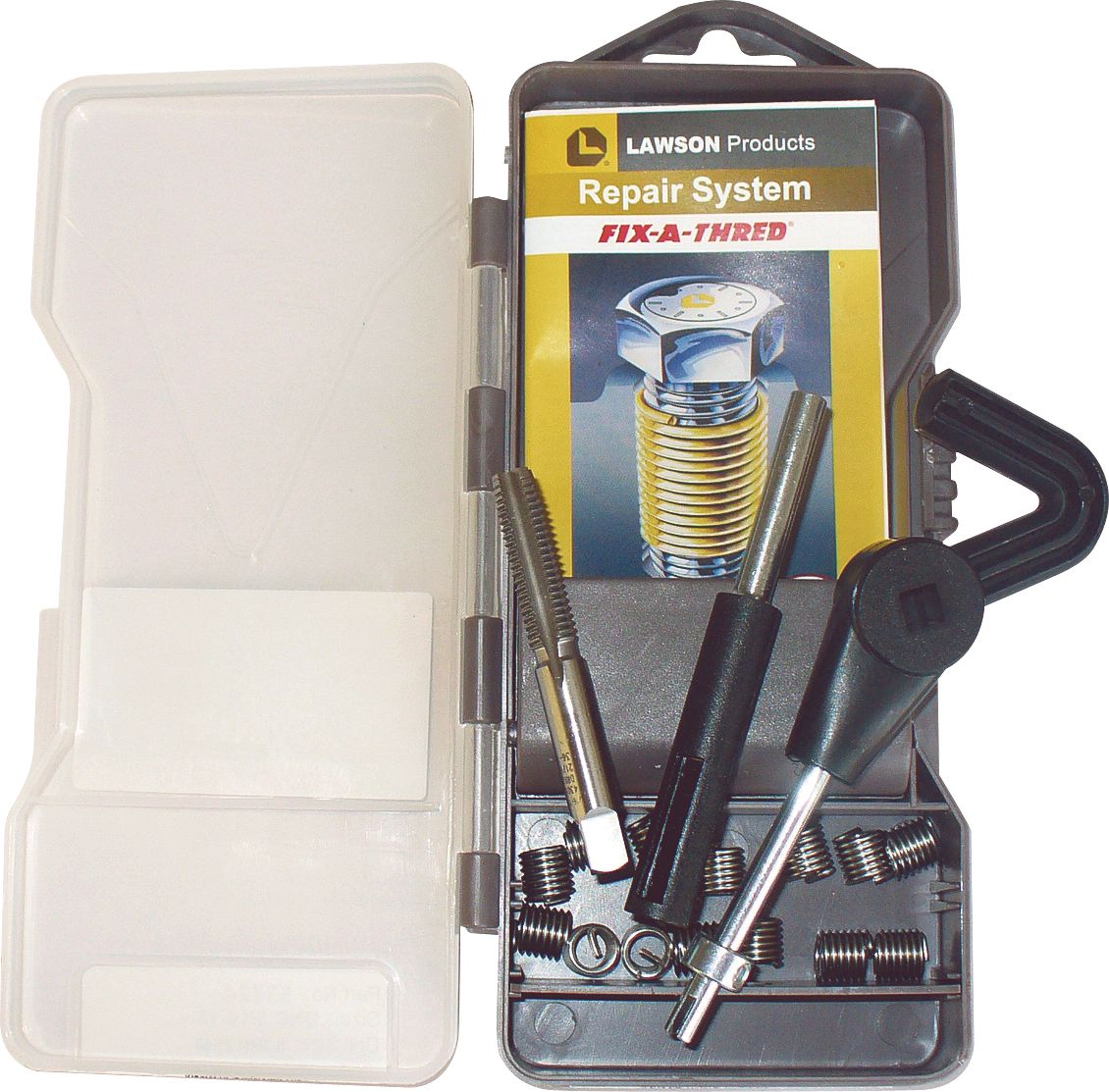

Wire Thread Insert Repair Kit, 8 Pieces, M20-2.5, 304 Stainless Steel, 200000PSI Tensile Strength
(Pack of
1)
SKU:53853 Item#: 53853
• Helically-wound thread repair – universally accepted and most cost-effective method of thread repair
• Manufactured from precision cold-formed 18-8 (Type 304) stainless steel
• Kits contain tap, inserts, installation tool, tang removal tool (select kits) and instructions, packaged in a sturdy and convenient storage box
• Inserts compensate for pitch and angle errors and share the load over more of the thread for stronger assemblies
• Tensile strength of at least 200,000 PSI
• Wide effective temperature range: –275°F to +774°F (–170°C to +412°C)
Fix-A-Thred® Insert Installation Instructions
Drill to clear out the damaged thread (if necessary).
Thread insert tap supplied. Tap thread should match up with bolt.
Wind insert in with light downward pressure until 1/4 to 1/2 turn below surface, driving tang towards bottom of the hole.
Remove tool and sit back on top of tang. Tap down sharply. Do not try to twist tang off. For large fine threads, use long nose pliers and pull tang out.
To insure proper installation of inserts, always use the correct and corresponding tools.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 10-68
Frequently Bought Together
Spot Weld Remover Drill Bit
$0.00
Couldn't load pickup availability
Jobber Length Drill Bit HSS 6.5mm
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
HD Locking Thread Insert Kit 5/16-20 to 1/2-20
$0.00
Couldn't load pickup availability
Damaged Screw Remover Extractor #2
$0.00
Couldn't load pickup availability
Damaged Screw Remover Extractor #3
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter
$0.00
Couldn't load pickup availability
Spinning Handmaster Driver Set 5Pc Set
$0.00
Couldn't load pickup availability
Wire Thread Insert Repair Kit 5/16-24
$0.00
Couldn't load pickup availability
Wire Thread Insert Repair Kit 5/16-18
$0.00
Couldn't load pickup availability
Wire Thread Insert Repair Kit M14-1.5
$0.00
Couldn't load pickup availability
Product Description
• Helically-wound thread repair – universally accepted and most cost-effective method of thread repair• Manufactured from precision cold-formed 18-8 (Type 304) stainless steel
• Kits contain tap, inserts, installation tool, tang removal tool (select kits) and instructions, packaged in a sturdy and convenient storage box
• Inserts compensate for pitch and angle errors and share the load over more of the thread for stronger assemblies
• Tensile strength of at least 200,000 PSI
• Wide effective temperature range: –275°F to +774°F (–170°C to +412°C)
Fix-A-Thred® Insert Installation Instructions
Drill to clear out the damaged thread (if necessary).
Thread insert tap supplied. Tap thread should match up with bolt.
Wind insert in with light downward pressure until 1/4 to 1/2 turn below surface, driving tang towards bottom of the hole.
Remove tool and sit back on top of tang. Tap down sharply. Do not try to twist tang off. For large fine threads, use long nose pliers and pull tang out.
To insure proper installation of inserts, always use the correct and corresponding tools.
Technical Specifications
| Item#: | 53853 |
|---|---|
| Type | Insert Repair Kit |
| Size | M20 x 2.5 |
| Recommended Drill Size | 13/16 " |
| Number of Pieces | 8 |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 1.38 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
