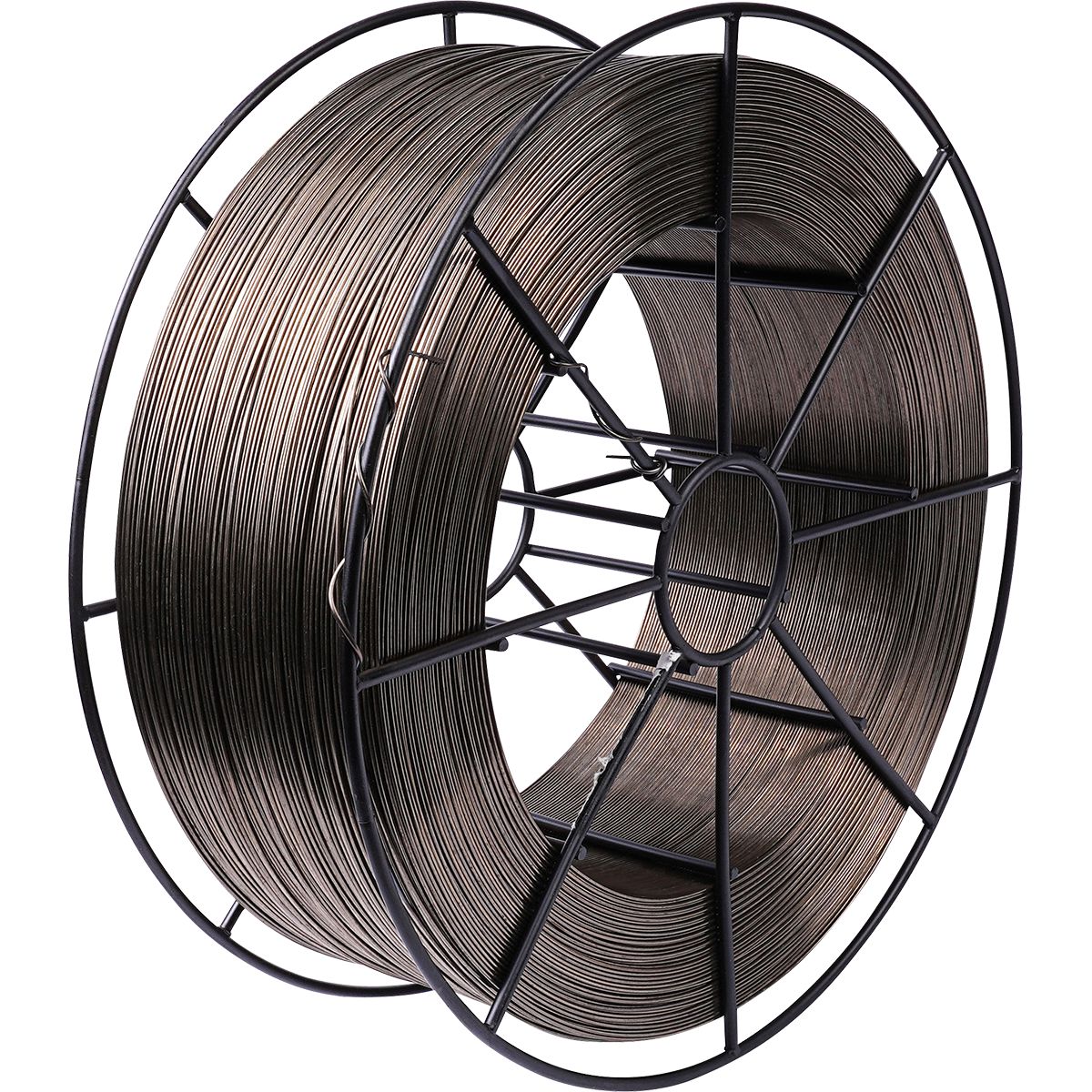

Xl Gold Dissimilar Metals Flux Core Mig Wire Tensile 122000 Gas 98% Ar 2%Co2 75Ar 2%Co2 Polarity Dcep 22-28Rc
(Pack of
33)
SKU:EG60380062 Item#: EG60380062
• Designed for welding all steels— manganese, stainless, AR plate, high-carbon and dissimilar combinations
• Superior welding speed — three times faster than stick welding and over 1-3/4 times faster than solid wires
• High recovery rate — over 90% deposition efficiency
• Low heat input means less distortion and better tolerance control
• All-position
• Self-lifting slag
• Tensile strengt: as deposited 122,000 psi/841 MPa
• Yield strength: as deposited 92,000 psi/634 MPa
• Elongation: 25%
• Hardness: As deposited 22-28Rc/work-hardened 31-37Rc
• Service temperature: 500°F/260°C
• Gas: 100% CO2 or 75% Ar/25% CO2 or 98% Ar/2% O2
• Current: DCEP (DC+)
Frequently Bought Together
X-Tractalloy Welding Electrode Non-Conductive Flux 5/64 3/32 1/8 2LB E
$0.00
Couldn't load pickup availability
333 Dissimilar Steel MIG Welding Wire 0.035"
$0.00
Couldn't load pickup availability
601Xl Fc Multi Steel Flux Core Mig Wire .035X10LB
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Heat Stick 850F Degrees
$0.00
Couldn't load pickup availability
Cap Whip-Lead Connector #4 to #1
$0.00
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
$0.00
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 1/4"
$0.00
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/16"
$0.00
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" SS Wire Dia., 1/4" Shank
$0.00
Couldn't load pickup availability
Upper Grille Retainer Nylon 1-1/4"
$0.00
Couldn't load pickup availability
DTM Primer Tan
$0.00
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" SS Wire Dia., 1/4" Shank
$0.00
Couldn't load pickup availability
Upper Grille Retainer Nylon 1-1/4"
$0.00
Couldn't load pickup availability
DTM Primer Tan
$0.00
Couldn't load pickup availability
Product Description
• Designed for welding all steels— manganese, stainless, AR plate, high-carbon and dissimilar combinations• Superior welding speed — three times faster than stick welding and over 1-3/4 times faster than solid wires
• High recovery rate — over 90% deposition efficiency
• Low heat input means less distortion and better tolerance control
• All-position
• Self-lifting slag
• Tensile strengt: as deposited 122,000 psi/841 MPa
• Yield strength: as deposited 92,000 psi/634 MPa
• Elongation: 25%
• Hardness: As deposited 22-28Rc/work-hardened 31-37Rc
• Service temperature: 500°F/260°C
• Gas: 100% CO2 or 75% Ar/25% CO2 or 98% Ar/2% O2
• Current: DCEP (DC+)
Technical Specifications
| Item#: | EG60380062 |
|---|---|
| Welding Process | MIG |
| Type | Flux-Cored Wire |
| Diameter | .062 " |
| Tensile Strength | 122,000 PSI |
| Yield Strength | 92,000 PSI |
| Elongation | 25 % |
| Hardness | 31-37 HRC |
| Shielding Gas | 75% Ar/25% CO2 or 100% CO2 |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 37.67 lb |
