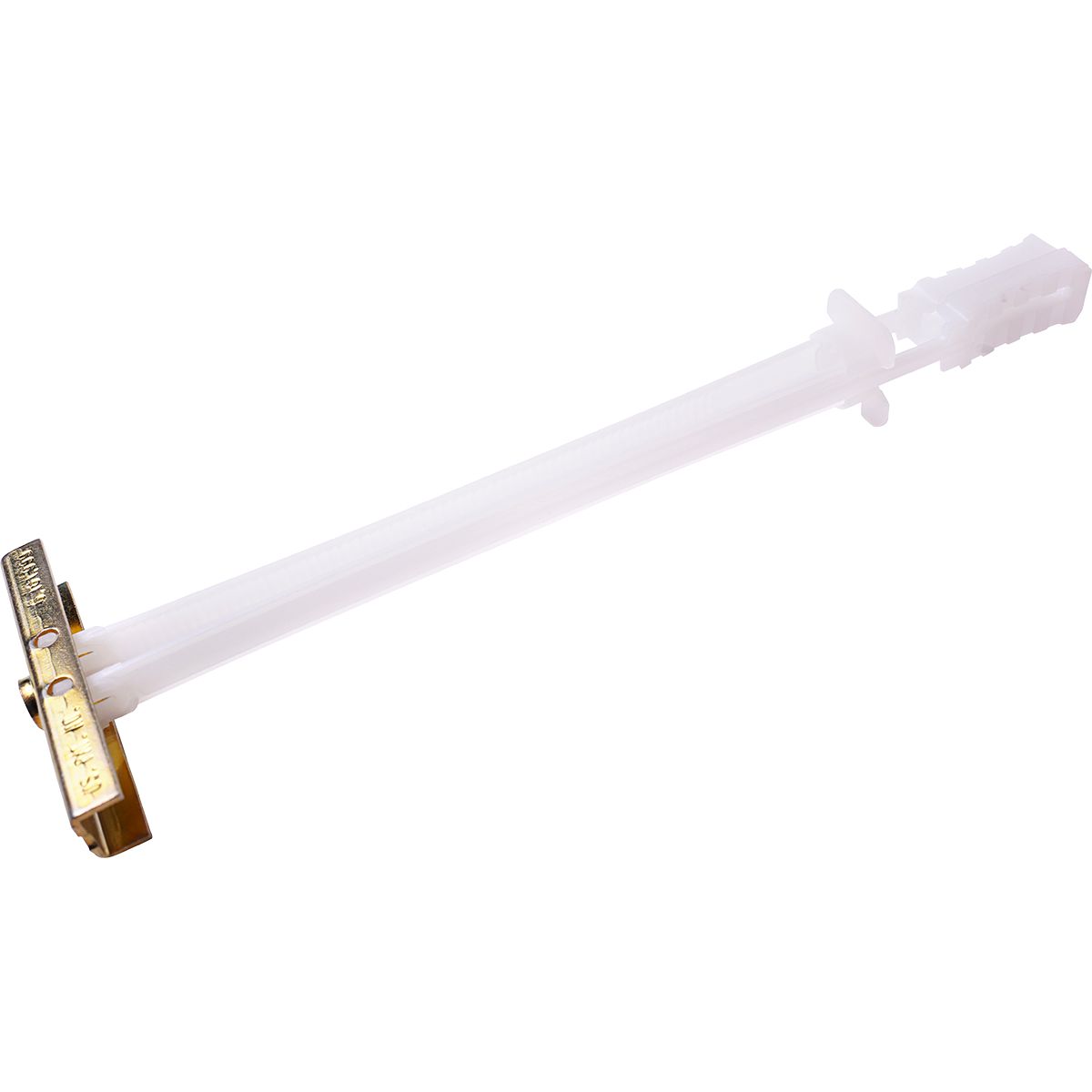

1/4-20 Joggle-A-Toggle Plus Wall Anchor
(Pack of
25)
SKU:DY09700800 Item#: DY09700800
• Pre-installs without a bolt
• Enables removal of bolt/fixture without anchor falling behind wall
• Leaves clean reinforced hole when not being used
• Handy pull ring makes installation and clipment a breeze
• Material: High-density plastic and zinc-plated 1010 cold-rolled steel
• Grip Range: 3/8" – 2-1/2"
• To establish length of bolt needed, add fixture thickness and wall/ceiling thickness to 1/2”
Frequently Bought Together
Sleeve Type Stud Bolt Anchor Steel 5/16 x 3-1/2"
Couldn't load pickup availability
Double Expansion Shield Anchor Alloy Steel 5/16"
Couldn't load pickup availability
Sleeve Type Stud Bolt Anchor Steel 5/8 x 4-1/4"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Hex Flange Nut Grade 10 Steel M8-1.25
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Couldn't load pickup availability
E-Z Toggle™ Self-Drilling Wall Anchor
Couldn't load pickup availability
Wing Type Toggle Bolt Round Head 1/4-20 x 6"
Couldn't load pickup availability
Pin Drive Anchor Mushroom Head Nylon 1/4 x 1/2"
Couldn't load pickup availability
Product Description
• Pre-installs without a bolt• Enables removal of bolt/fixture without anchor falling behind wall
• Leaves clean reinforced hole when not being used
• Handy pull ring makes installation and clipment a breeze
• Material: High-density plastic and zinc-plated 1010 cold-rolled steel
• Grip Range: 3/8" – 2-1/2"
• To establish length of bolt needed, add fixture thickness and wall/ceiling thickness to 1/2”
Technical Specifications
| Item#: | DY09700800 |
|---|---|
| Type | Toggle Bolt Anchor |
| Size | 1/4-20 " |
| Diameter | 1/4 " |
| Material | Steel/Plastic |
| Thread | Coarse |
| Thread Pitch | 20 |
| Drill Size | 1/2 " |
| Grip Range | 3/8" - 2-1/2" (9mm - 64mm) |
| Pullout Ultimate Average Lbs.Drywall Thickness 5 / 8" | 306 lb |
| Tensile Proof Test Load In Concrete | 925 lb |
| Pullout Ultimate Average Lbs.Steel Thickness 1 / 2" | 1,283 lb |
| Bolt Size | 1/4-20 " |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.79 lb |
