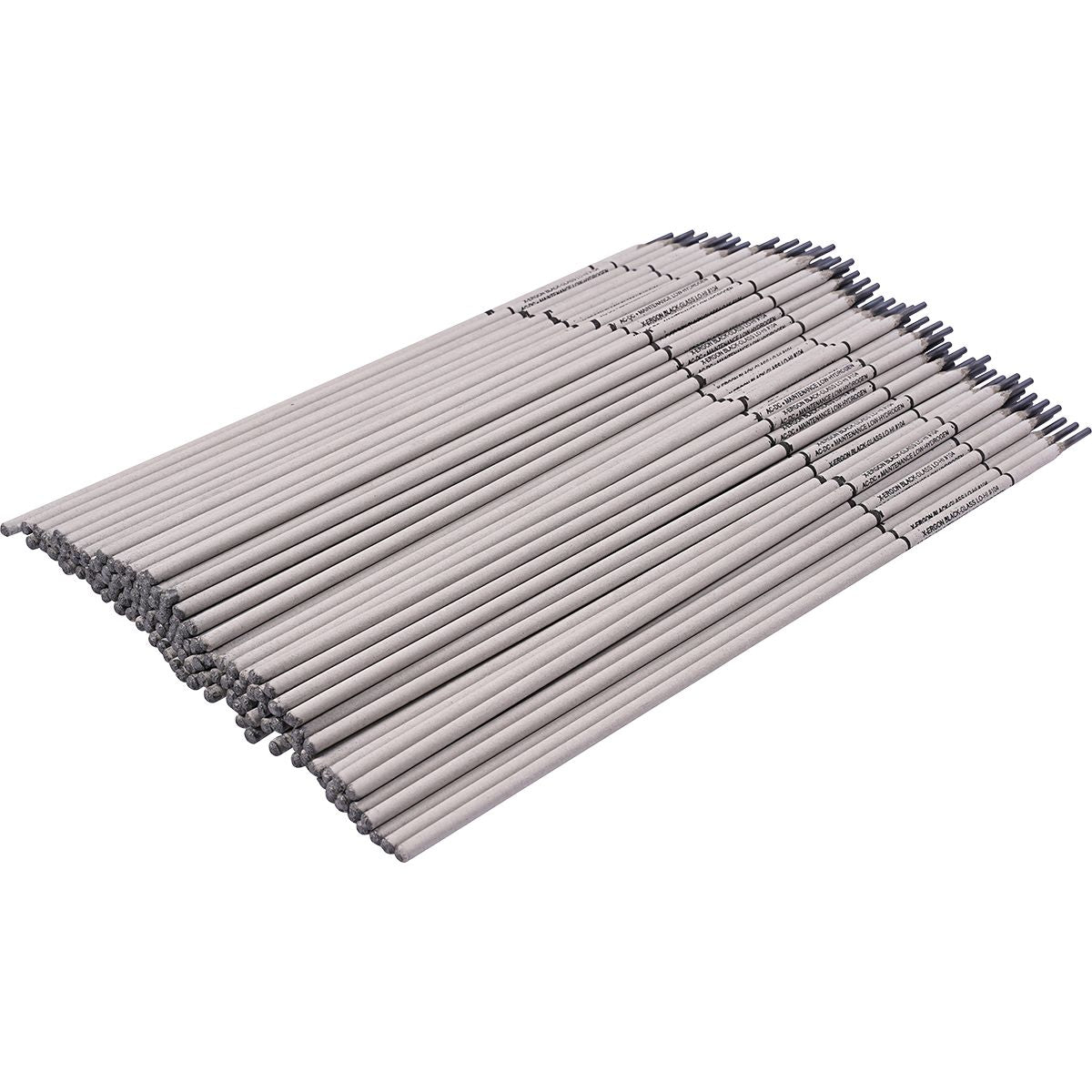

104 Mild Steel Low Hydrogen Stick Electrode
(Pack of
15.0)
Designed for maintenance. Features a special Chem-A-Tized2 flux coating that produces a slag that consumes contaminants like lava including rust, grease, dirt and paint. The low hydrogen coating makes the weld deposit tough and strong, yet still machinable.
• Superior Cleaning Action – The Black Glass slag consumes contaminates like lava
• Low-Hydrogen Toughness – Designed for tough maintenance applications
• Special double-coated Chem-A-Tized coating provides better arc control, low spatter and better bead appearance
• Has the cleaners in the outside coating and the arc stabilizers on the inside, where they’re needed to improve performance
• Operates on AC or DCEP
• Easy to use in all positions whether uphill, horizontal or overhead
• Designed to Operate at Lower Amperage – Reduced distortion and burn-through tenance applications
• Tensile Strength: Up to 87,000 PSI/600 Mpa
• Yield Strength: 72,000 PSI/496 Mpa
• Elongation: 31%
• Machinability: Excellent
• Hardness: 86 Rb
• Impact Resistance: 50 ft.-lbs. @ -20°F/-29°C
• Current: DCEP (DC+) or AC
Frequently Bought Together
602 High -Strength Flux Core Electrode 1/16X33LB SPOOL
Couldn't load pickup availability
106 Mild Steel All Purpose Electrode 1/16
Couldn't load pickup availability
602 High -Strength Flux Core Electrode .045X10LB SPOOL
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Heat Stick 250F Degrees
Couldn't load pickup availability
Heat Stick 650F Degrees
Couldn't load pickup availability
Heat Stick 850F Degrees
Couldn't load pickup availability
9-6501 Plasma Cutting Tip
Couldn't load pickup availability
9-6004 Plasma Cutting Shield Cup
Couldn't load pickup availability
177888 Plasma Cutting Deflector
Couldn't load pickup availability
Product Description
Designed for maintenance. Features a special Chem-A-Tized2 flux coating that produces a slag that consumes contaminants like lava including rust, grease, dirt and paint. The low hydrogen coating makes the weld deposit tough and strong, yet still machinable.• Superior Cleaning Action – The Black Glass slag consumes contaminates like lava
• Low-Hydrogen Toughness – Designed for tough maintenance applications
• Special double-coated Chem-A-Tized coating provides better arc control, low spatter and better bead appearance
• Has the cleaners in the outside coating and the arc stabilizers on the inside, where they’re needed to improve performance
• Operates on AC or DCEP
• Easy to use in all positions whether uphill, horizontal or overhead
• Designed to Operate at Lower Amperage – Reduced distortion and burn-through tenance applications
• Tensile Strength: Up to 87,000 PSI/600 Mpa
• Yield Strength: 72,000 PSI/496 Mpa
• Elongation: 31%
• Machinability: Excellent
• Hardness: 86 Rb
• Impact Resistance: 50 ft.-lbs. @ -20°F/-29°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG1045000B |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 3/32 " |
| Elongation | 31 % |
| Base Metal | Mild And Medium Carbon Steel |
| Hardness | 86 HRB |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 15.32 lb |
