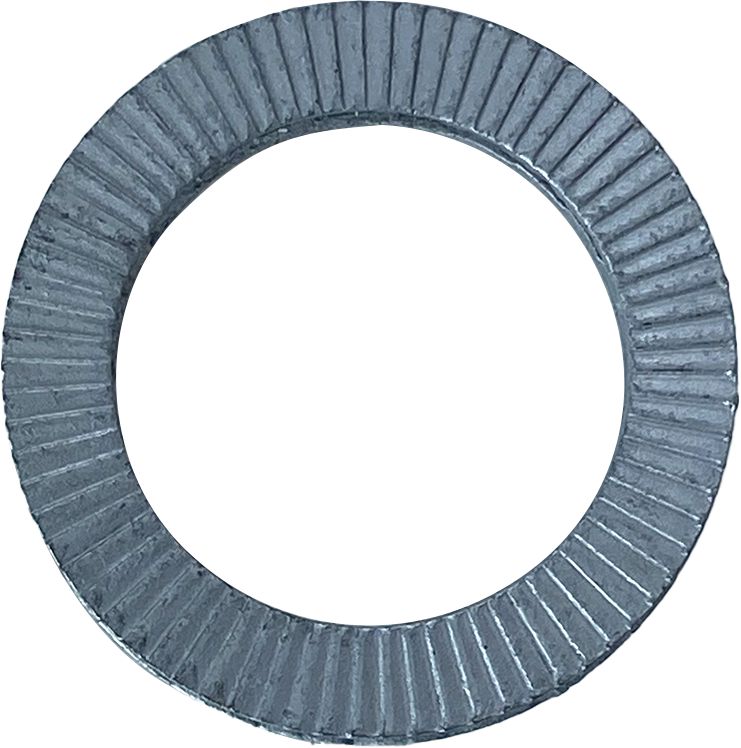

20mm Standard Anti-Vibration Serated Self Lock Washer
(Pack of
20)
SKU:DY03682000 Item#: DY03682000
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 25mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
$0.00
Couldn't load pickup availability
Lock Washer External Flat Shakeproof #14
$0.00
Couldn't load pickup availability
DIN 137 Spring Washer Low Carbon Steel M8
$0.00
Couldn't load pickup availability
DIN 137 Spring Washer Low Carbon Steel M7
$0.00
Couldn't load pickup availability
130C Linerless Rubber Splicing Tape Black 2" x 30'
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Black
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 18 AWG 100' Yellow
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
$0.00
Couldn't load pickup availability
Flexi-Finish Plastics 2-Part Epoxy
$0.00
Couldn't load pickup availability
Hinge Pin and Bushing Kit 4 Items 7Pcs
$0.00
Couldn't load pickup availability
Bumper and Lower Deflector Specialty Rivet 4.8mm
$0.00
Couldn't load pickup availability
Flexi-Finish Plastics 2-Part Epoxy
$0.00
Couldn't load pickup availability
Hinge Pin and Bushing Kit 4 Items 7Pcs
$0.00
Couldn't load pickup availability
Bumper and Lower Deflector Specialty Rivet 4.8mm
$0.00
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Technical Specifications
| Item#: | DY03682000 |
|---|---|
| Manufacturer Model #: | TEC-M20 |
| Nominal Size | M20 |
| Type | Self-Locking Lock Washer |
| Material | Carbon Steel |
| I.D. | 0.84 " |
| O.D. | 1.21 " |
| Finish | Delta Protekt® |
| Thickness | 0.13 " |
| Quantity Per Package | 20.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.35 lb |
