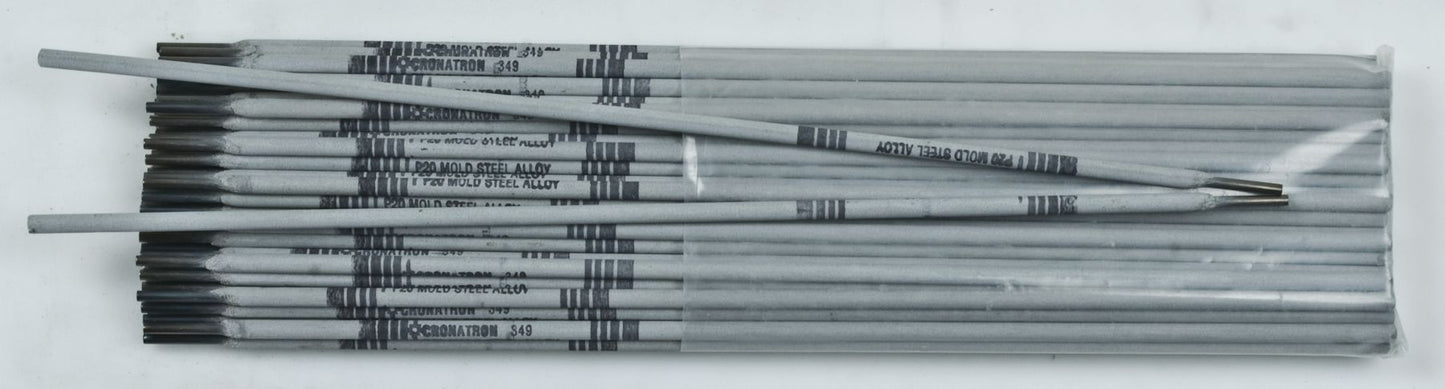

349 Tool Steel Stick Rod Electrode, 33 to 36 HRC Hardness, 100 to 140 Amps, 26% Elongation, DCRP Polarity, Crack-Resistant, 1/8"
(Pack of
5)
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC Reverse
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Frequently Bought Together
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
345 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
344 Tool Steel Stick Rod Electrode 3/32"
Couldn't load pickup availability
349 Tool Steel TIG Wire 0.02"
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
Couldn't load pickup availability
9-6003 Plasma Cutting Shield Cup
Couldn't load pickup availability
9-6507 Plasma Cutting Gas Distributor
Couldn't load pickup availability
21008 Plasma Cutting Tip
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC Reverse
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW4853 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Polarity | DCRP |
| Quantity Per Package | 5.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
Product Restrictions
