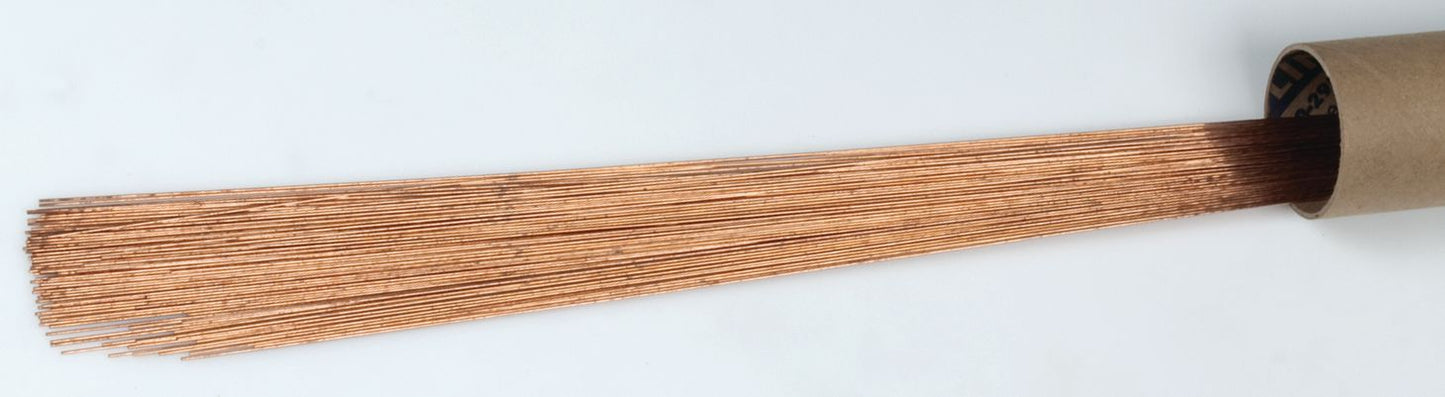

349 Tool Steel TIG Wire, Solid, 33 to 36 HRC Hardness, 100% Ar Shielding Gas, 26% Elongation, 36" Length, 0.035"
(Pack of
1)
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.
Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC StraightGas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Frequently Bought Together
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
349 Tool Steel TIG Wire 1/8"
Couldn't load pickup availability
345 Tool Steel TIG Wire 5/32"
Couldn't load pickup availability
346 Tool Steel TIG Wire 1/16"
Couldn't load pickup availability
Light Weight Composite Wear Plates 36X4X13/64
Couldn't load pickup availability
Acetylene Safety Cap Heavy Duty
Couldn't load pickup availability
Round Soapstone Holder Heavy Duty
Couldn't load pickup availability
360 Mild and Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 1/4"
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/32"
Couldn't load pickup availability
Product Description
Specially formulated for welding P-mold steels and most chrome-moly alloy steels.Superior Advantages
• Crack-resistant
• Premium operability
• High wear resistance
Tensile Strength: 89,700 PSIYield Strength: 73,400 PSIElongation: 26%Hardness: Rc 33-36Polarity: DC StraightGas: 100% Ar
Typical Applications
• Die-casting dies
• Injection molds
• Compression molding of plastics and chrome-moly steels like AISI 4130, 4140, 8620 and 8640
Usage ProcedureMaintain a short arc with minimal weave. Preheat as prescribed by base metal.
Technical Specifications
| Item#: | CW1986 |
|---|---|
| Welding Process | TIG |
| Type | Solid |
| Diameter | .035 " |
| Length | 36 " |
| Tensile Strength | 89,700 PSI |
| Yield Strength | 73,400 PSI |
| Elongation | 26 % |
| Base Metal | Tool Steel |
| Hardness | 33-36 HRC |
| Shielding Gas | 100% Ar |
| Polarity | DCSP |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 23271810 |
| TAA Compliant: | No |
| Weight: | 1.5 lb |
