Home Hydraulics Hydraulic End Fittings 4S Series Crimp-On Elbow 1-1/4 x 2.38"
End Fittings

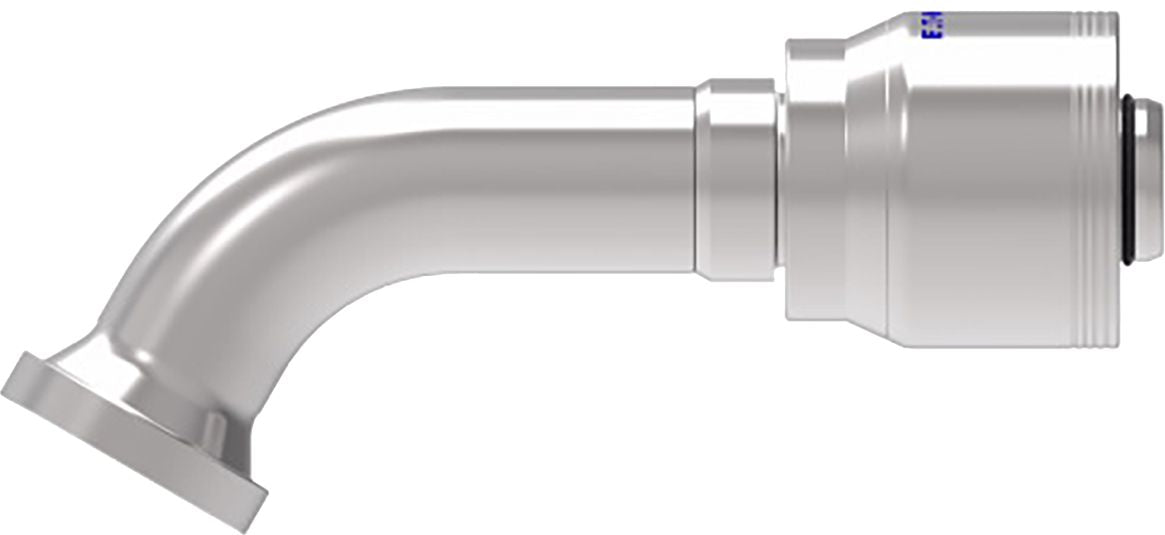

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 60°, SAE 61, 1-1/4 (-20) x 2.38" (-24)
(Pack of 1)

Item#: 1647728

Danfoss®

Compatible Hoses:
• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together

No product placeholder

GlobalSpiral Coupler, JIC 37 Deg Flare 734729245

Item#: 1644494

SAE R16S Hydraulic Hose Rubber 0.94" x 200'

Item#: 1562966A

SAE R16S Hydraulic Hose Rubber 1.39" x 200'

Item#: 1562953A

Monsoon Hose Nozzle 3/4"

Item#: 61323

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11961

Anti-Rattle/Squeak BRS Tape 10mm x 10'

Item#: KT13485

NANOSKIN® AutoScrub™ Wash Mitt Medium

Item#: 1434563

Bumper Fascia Push-Type Retainer Nylon 18mm

Item#: KT12847

Push-Type Retainer Nylon 15mm

Item#: 1372010

Odor Eliminator - New Car

Item#: 1633827

Silver Fixed-Angle Metal TPMS Valve

Item#: 1635720

Odor Eliminator - New Car

Item#: 1633827

Silver Fixed-Angle Metal TPMS Valve

Item#: 1635720

Product Description

Compatible Hoses:
• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 1647728
Manufacturer Model #: 4S24FLG20
Manufacturer Series Number 4S Series
Attachment Method Crimp-On
Dash Size -20
Gender Split Flange
Fitting End Style Split Flange Code 61
Fitting End Type Code 61
Fitting Angle 60 °
Weatherhead No. 4S24FLG20
Fitting Series 4S Series
SAE Code J1176
Material Carbon Steel
Finish DURA-KOTE
UNSPSC #: 27121705
TAA Compliant: No
Weight: 2.44 lb
