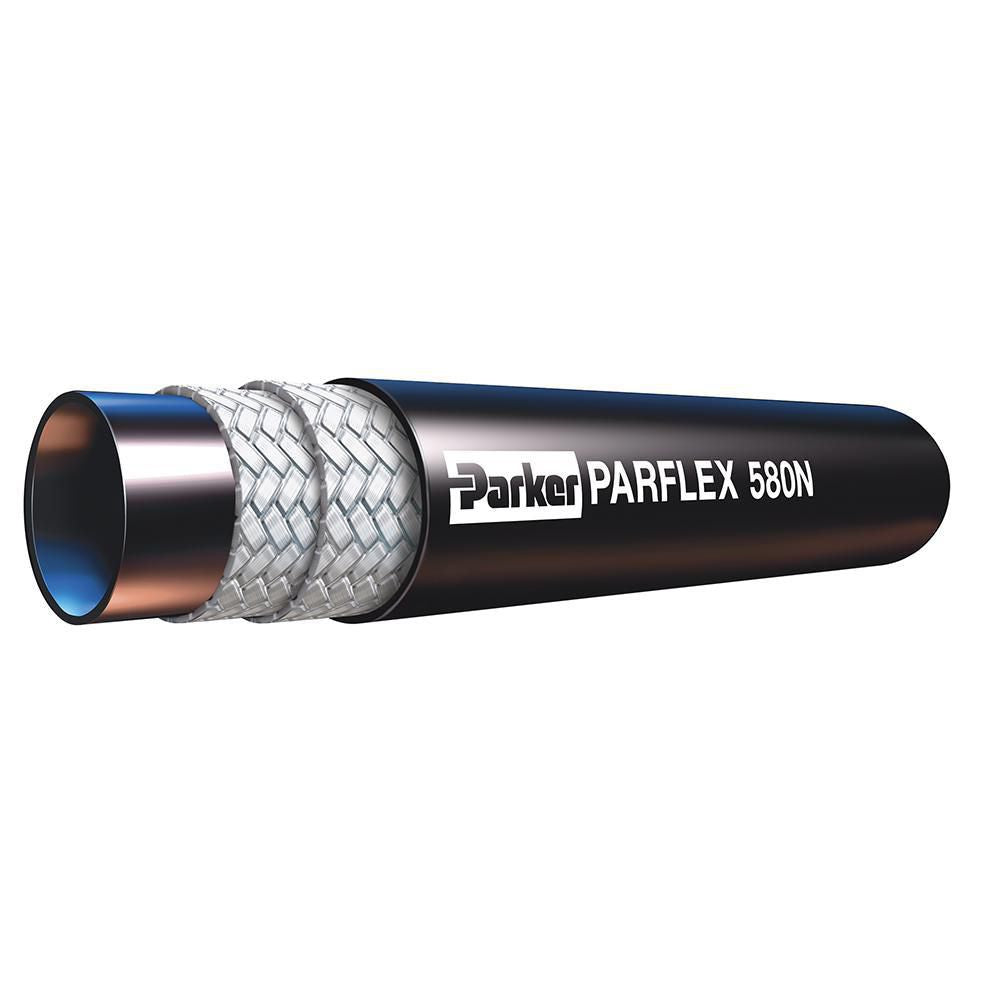

580N Hydraulic Hose, Urethane, 1-Steel Braided, 3/4" ID, 1.16" OD, 50' Length, 2250PSI, SAE 100R8
(Pack of
50)
SKU:90498 Item#: 90498
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.
• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
3TR7 Hydraulic Thermoplastic Hose 0.43" x 50'
$0.00
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.75" x 50'
$0.00
Couldn't load pickup availability
3TR8 Hydraulic Thermoplastic Hose 0.75" x 50'
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"
$0.00
Couldn't load pickup availability
Spacer Ring Black
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.617 x 0.769"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.82" x 50'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.49" x 50'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.65" x 50'
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Adjustable 4-Pos T-Handle 1/2 Drive
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Adjustable 4-Pos T-Handle 1/2 Drive
$0.00
Couldn't load pickup availability
Product Description
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 90498 |
|---|---|
| Manufacturer Model #: | 580N-12 |
| Type | Thermoplastic Hose |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R8 |
| Manufacturer Series Number | 580N |
| Manufacturer Series Name | Parflex |
| Dash Size | -12 |
| Working Pressure | 2,250 PSI |
| Burst Pressure | 9,000 PSI |
| Minimum Bend Radius | 8 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | Aramid Fiber |
| Hose Cover Material | Perforated Urethane |
| Fitting Series | 58 |
| Temperature | -40F to +212F |
| Color | Black |
| Size | 3/4 (-12) |
| Parker Crimp Fitting Series | 58 |
| Swage Die Selection | 90558 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 15.5 lb |
