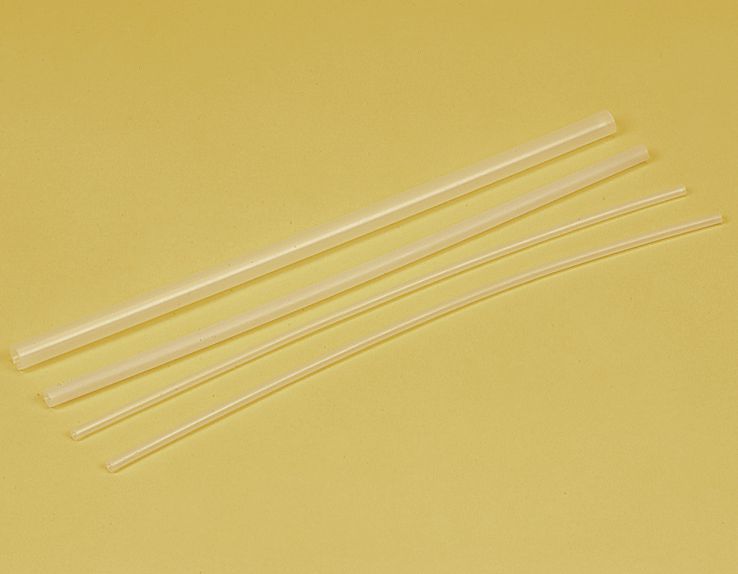

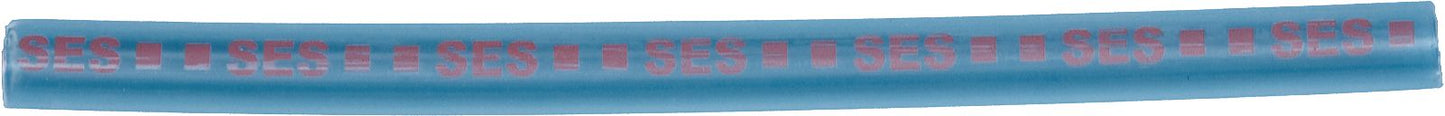

Adhesive Heat Shrink Tubing, 22 to 10 AWG, Clear/Red, 6" Length, 0.3" ID Before and 0.06" ID After Shrinkage, 4:1 Shrink Ratio
(Pack of
8)
SKU:16324 Item#: 16324
• 4:1 shrink ratio
• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
H11 Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 21CP
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Heat Shrink Tubing 20 to 14 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 24 to 22 AWG Clear
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Insulform Heat Shrink Tubing 22 to 18 AWG Black
Couldn't load pickup availability
Temflex™ 165 Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Insulform Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Product Description
• 4:1 shrink ratio• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 16324 |
|---|---|
| Type | Pre-Cut |
| Wire Gauge Coverage | 22-10 AWG |
| Length | 6 " |
| Color | Clear/Red |
| I.D. Before Shrinkage | 0.300 " |
| I.D. After Shrinkage | 0.06 " |
| Shrink Ratio | 4 to 1 |
| Dielectric Strength | 500 V/mm |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.05 lb |
