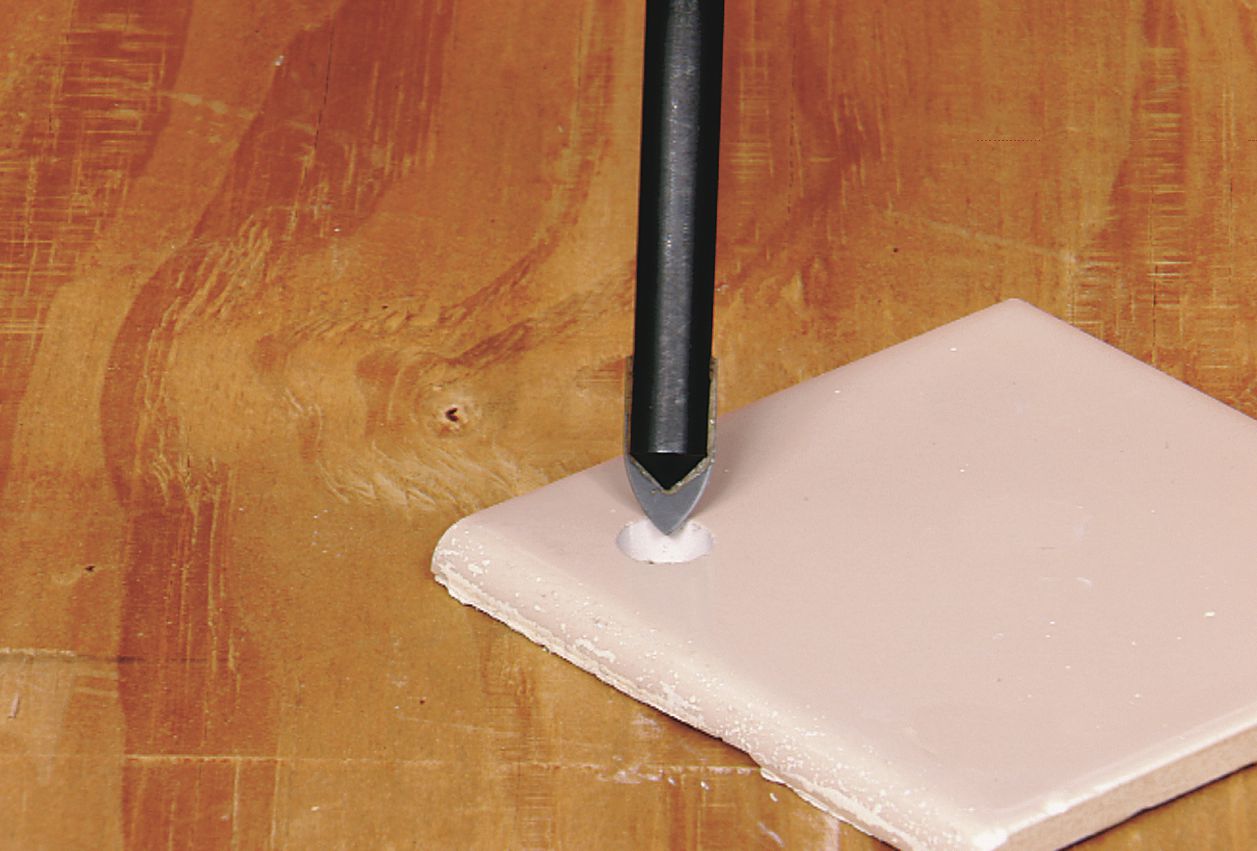

Arrowhead Ceramic Drill Bit 3/8"
(Pack of
1.0)
• Carbide-tipped point reduces cutting pressure for cleaner holes in difficult-to-cut materials
• Spear design provides clean, smooth holes without chipping or fracturing
• High-strength, special alloy steel shaft promotes longer tool life
• Use on ceramics, tile, glass, mirror, acrylic, fiberglass and most hard plastic materials
• Can be used in hand-held portable drill motors and stationary drill presses
• Not for use in hammer or percussion drills
General Operating Directions
• Before drilling, back up or support with a flat piece of similar material or wood if possible
• Use a variable speed drill motor and slow drilling speed
• When cutting glass or mirror, apply a lubricant to maximize cutting efficiency
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
3/8" Dia. Spear Point Bit, Glass, Tile, Ceramic Drill Bit
Couldn't load pickup availability
Arrowhead Ceramic Drill Bit 1/4"
Couldn't load pickup availability
1/8" Dia.Spear Point Bit, Glass, Tile, Ceramic Drill Bit
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/4"
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
Couldn't load pickup availability
Aluminum Oxide Grain Locking Grinding Disc 2"
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-3/4" (M8)
Couldn't load pickup availability
Cryobit 1/8" Dia. Maintenance Drill Bit , 135o Split Point, No Flats
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Interchangeable Hex Bit Set 24Pc SAE
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
Couldn't load pickup availability
Master Security Bit Set 203Pc
Couldn't load pickup availability
Product Description
• Carbide-tipped point reduces cutting pressure for cleaner holes in difficult-to-cut materials• Spear design provides clean, smooth holes without chipping or fracturing
• High-strength, special alloy steel shaft promotes longer tool life
• Use on ceramics, tile, glass, mirror, acrylic, fiberglass and most hard plastic materials
• Can be used in hand-held portable drill motors and stationary drill presses
• Not for use in hammer or percussion drills
General Operating Directions
• Before drilling, back up or support with a flat piece of similar material or wood if possible
• Use a variable speed drill motor and slow drilling speed
• When cutting glass or mirror, apply a lubricant to maximize cutting efficiency
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | P62283 |
|---|---|
| Type | Arrowhead Drill Bit |
| Diameter | 3/8 " |
| Decimal Equivalent | 0.3900 " |
| Overall Length | 3-7/8 " |
| Shank Size | 1/4 " |
| Steady Pressure Recommended | 300 - 500 RPM |
| Shank | Straight |
| UNSPSC #: | 23241600 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
