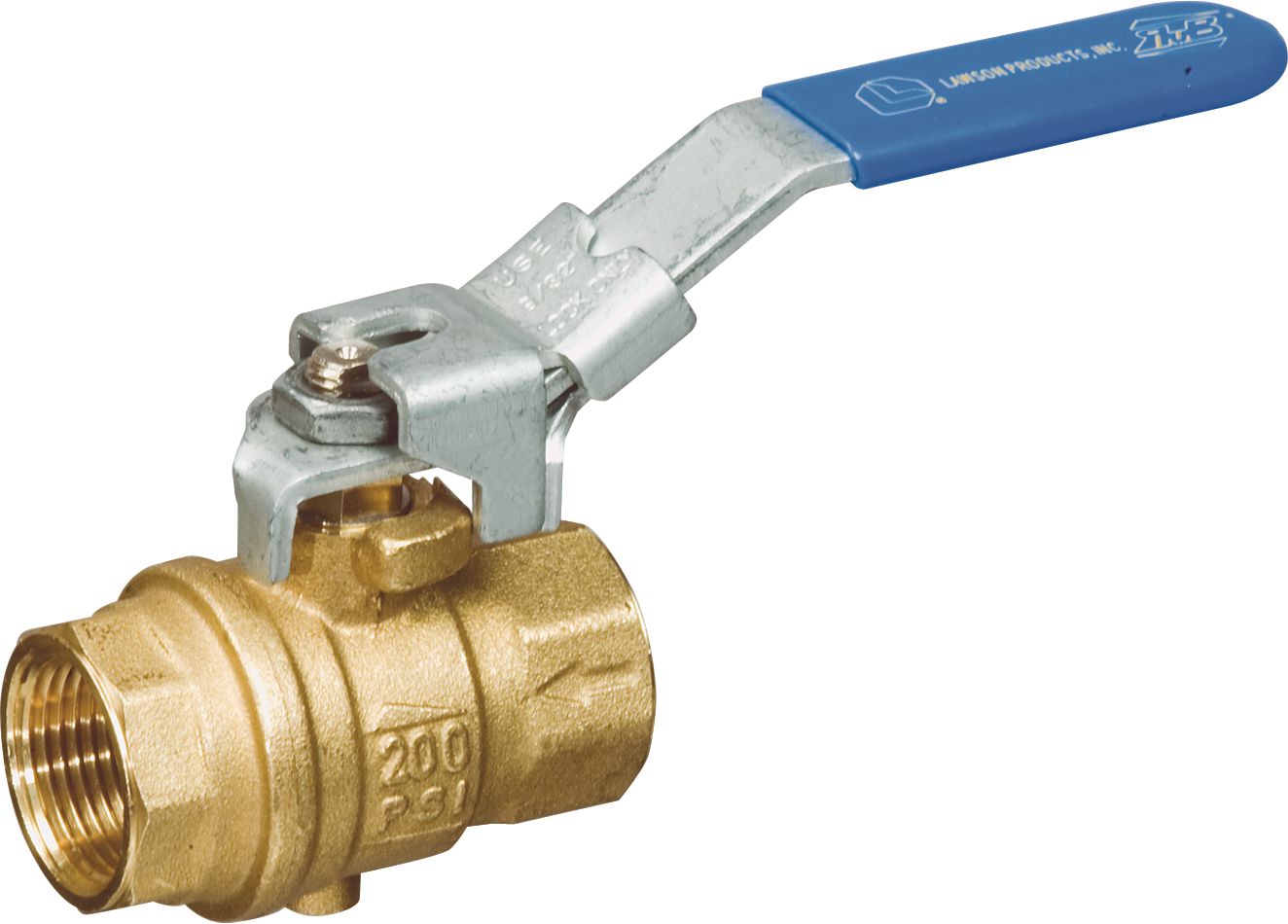

Brass Ball Valve Vented Forged Body with Lockout 1-11-1/2x 1-11-1/2
(Pack of
1)
SKU:51212 Item#: 51212
• No metal-to-metal moving parts
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged sand blasted, unplated brass body and cap sealed with Loctite or equivalent thread sealant
• The valve body includes a tapped downstream depressurization venting outlet to direct exhaust air and assemble mufflers for noise control
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
• Geomet® carbon steel lockable handle patent n. 7074-B/90 with thick PVC dip coating. Handle coating offers both thermal and electrical protection
• Handle removable with valve in service
• Glass filled pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 200 PSI
• Operating Temperature: 15°F to 210°F
• Approvals: Helps meet OSHA regulations
Applications: Pneumatic lines
Frequently Bought Together
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
• No metal-to-metal moving parts• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged sand blasted, unplated brass body and cap sealed with Loctite or equivalent thread sealant
• The valve body includes a tapped downstream depressurization venting outlet to direct exhaust air and assemble mufflers for noise control
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
• Geomet® carbon steel lockable handle patent n. 7074-B/90 with thick PVC dip coating. Handle coating offers both thermal and electrical protection
• Handle removable with valve in service
• Glass filled pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 200 PSI
• Operating Temperature: 15°F to 210°F
• Approvals: Helps meet OSHA regulations
Applications: Pneumatic lines
Technical Specifications
| Item#: | 51212 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | Vented Forged Body with Lockout |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1-11-1/2 |
| Fitting Dimension B | 1-11-1/2 |
| Working Pressure | 200 PSI |
| Temperature Range | 15 to 210 °F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 1.52 lb |
