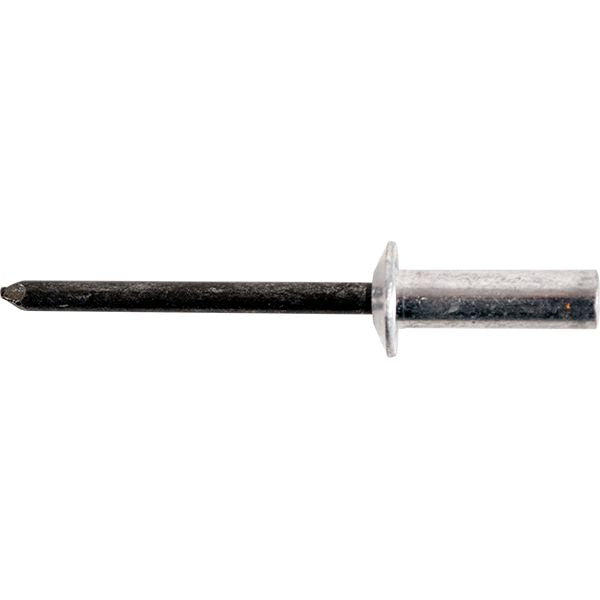

Closed End Rivet, Dome Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.376 to 0.5" Grip Range, 0.781" Body Length
(Pack of
500)
SKU:1543583 Item#: 1543583
Dome Head
• Seals out liquids, moisture, air and other contaminants
• Complete stem retention
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Frequently Bought Together
Closed End Rivet Dome Head Aluminum 3/16"
Item#: 97069
$0.00
Couldn't load pickup availability
Closed End Rivet Dome Head Aluminum 3/16"
Item#: 97068
$0.00
Couldn't load pickup availability
Closed End Rivet Dome Head Aluminum 1/8"
Item#: 97065
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Item#: 28680
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Item#: FA88436
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M12
Item#: 80265
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Item#: 85107
$0.00
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Item#: 41637
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Item#: 85105
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
Item#: P86117
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Item#: P85035
$0.00
Couldn't load pickup availability
Product Description
Dome Head• Seals out liquids, moisture, air and other contaminants
• Complete stem retention
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1543583 |
|---|---|
| Type | Closed End |
| Head Style | Dome Head |
| Material Body / Mandrel | Aluminum/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.376 – 0.500 " |
| Industry Number | 68 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.375 " |
| Head Height | 0.060 " |
| Body Length | 0.781 " |
| Shear Strength | 500 lb |
| Tensile Strength | 690 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 3.49 lb |
