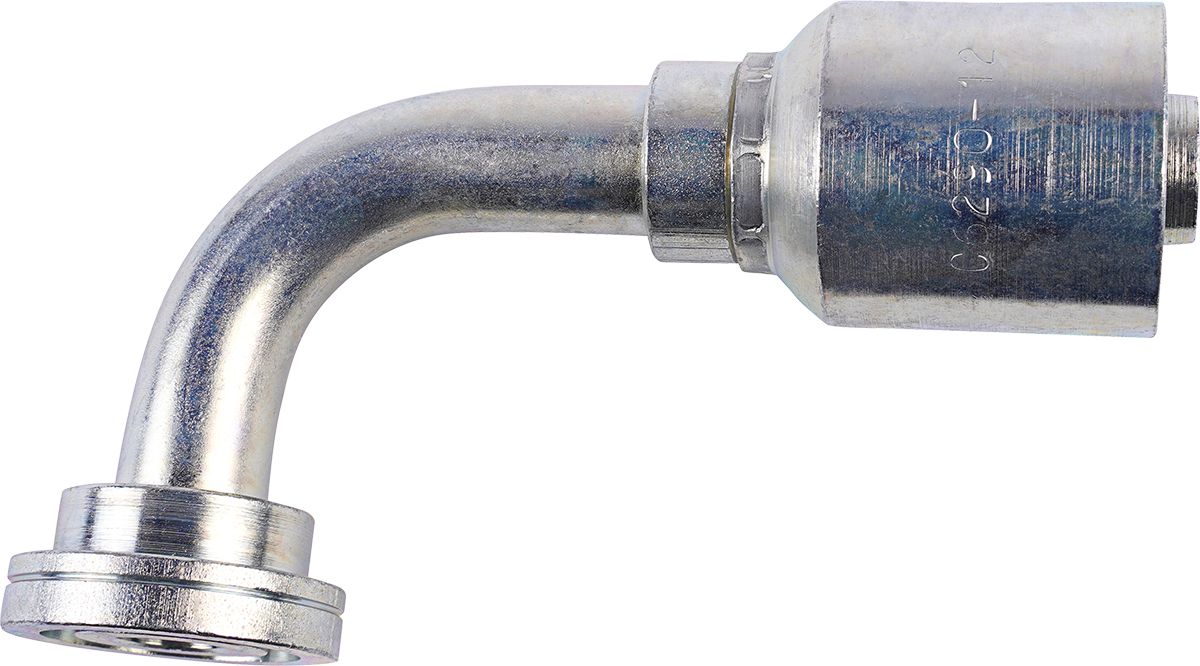

Crimp-On Coupling Code 62, 90° Bend Rigid, 3/4"(-12) x 3/4"(-12)
(Pack of
1.0)
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Frequently Bought Together
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260921 |
|---|---|
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 62 |
| Fitting End Type | Code 62 |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 1.62 (-12) |
| Flange Diameter | 1.62 " |
| Flange Size | 3/4 " |
| Fitting Series | W |
| Size | (-12)X(-12) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.88 lb |
