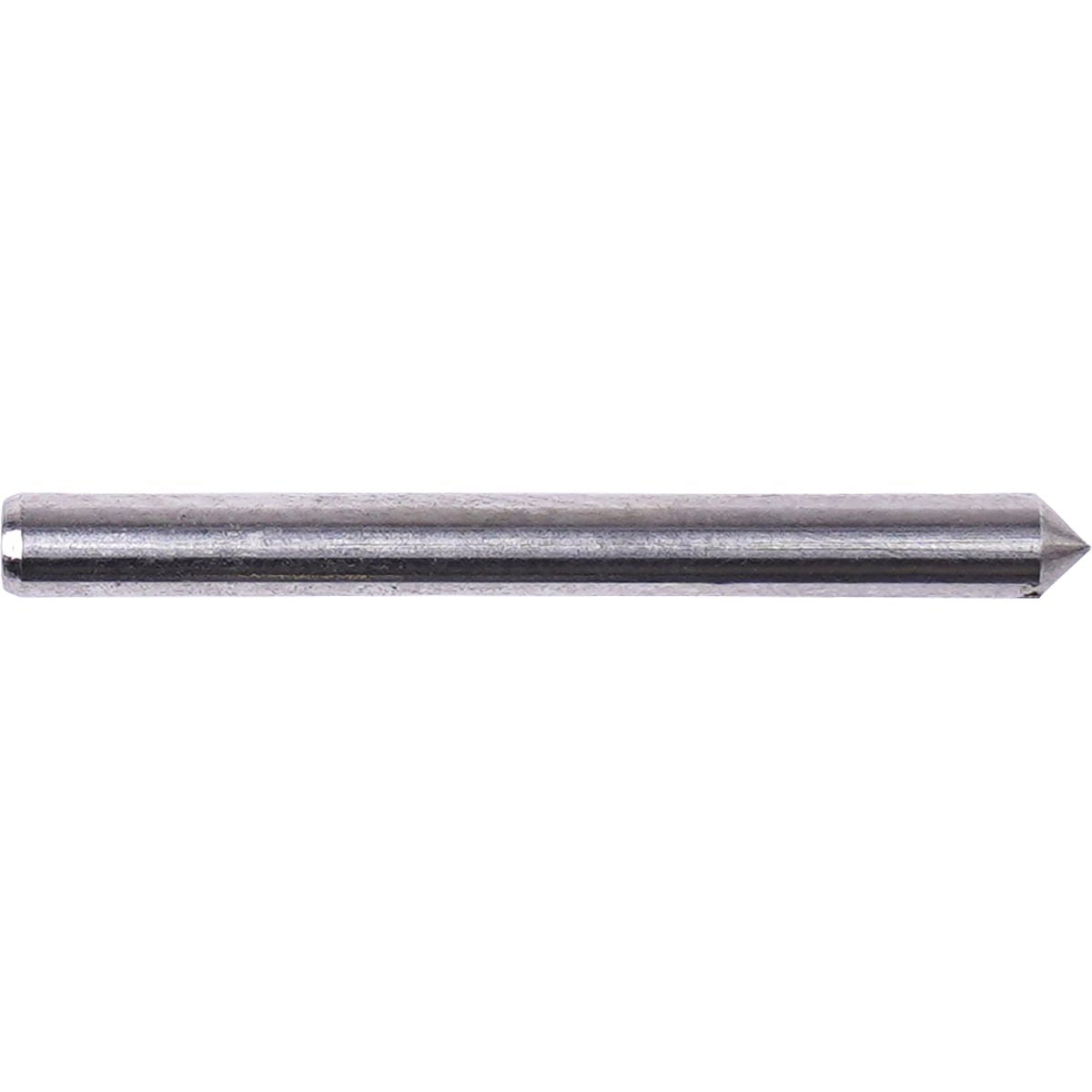

Cryocut 1/8" Body Dia. 90o Angle Countersink, 1-Flute
(Pack of
1.0)
• Three-flute center reamers cut countersinks and recesses for extisting holes
• Cryophase™ treatment extends the wear resistance and useful life of these high speed steel countersinks
• 82°, 90° and 100° angles cover countersink requirements for most common fastener head styles
Specifications
• Material: High Speed Steel
• Hardness: 64-66Rc
• Cryophase™: Thermal cycling cryogenic treatment
Applications
• 82° - commonly found on oval countersunk head machine screws, flat head tapping screws, oval trim head tapping screws, socket flat head cap screws and countersunk head plow bolts
• 90° - Commonly found on oval head rivets and flat head countersunk rivets
• 100° - Commonly found on flat head blind rivets, self-plugging rivets, flush head drive pin rivets, close tolerance flat countersunk head machine screws, and flat head tapping screws
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Chatterless Countersink 90° Six Flute 3/8"
Couldn't load pickup availability
Chatterless Countersink 90° Six Flute 1/4"
Couldn't load pickup availability
Cryocut 3/4" Body Dia. 90o Angle Countersink, 3-Flute
Couldn't load pickup availability
Cryocut 1-1/4" Body Dia. 100o Angle Countersink, 3-Flute
Couldn't load pickup availability
Cryocut 3/8" Body Dia. 100o Angle Countersink, 3-Flute
Couldn't load pickup availability
Cryocut 1/4" Body Dia. 100o Angle Countersink, 3-Flute
Couldn't load pickup availability
Abrasive Hand Pad All Purpose 6 x 9"
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
Couldn't load pickup availability
Polymer Wheel Rubber Eraser 30mm
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Master Security Bit Set 203Pc
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 1/4" (M6)
Couldn't load pickup availability
Comfort Grip Ergonomic Mini Awl, 4 pc Hook & Pick Set
Couldn't load pickup availability
Product Description
• Three-flute center reamers cut countersinks and recesses for extisting holes• Cryophase™ treatment extends the wear resistance and useful life of these high speed steel countersinks
• 82°, 90° and 100° angles cover countersink requirements for most common fastener head styles
Specifications
• Material: High Speed Steel
• Hardness: 64-66Rc
• Cryophase™: Thermal cycling cryogenic treatment
Applications
• 82° - commonly found on oval countersunk head machine screws, flat head tapping screws, oval trim head tapping screws, socket flat head cap screws and countersunk head plow bolts
• 90° - Commonly found on oval head rivets and flat head countersunk rivets
• 100° - Commonly found on flat head blind rivets, self-plugging rivets, flush head drive pin rivets, close tolerance flat countersunk head machine screws, and flat head tapping screws
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80850202 |
|---|---|
| Type | Countersink |
| Body Diameter | 1/8 " |
| Flutes | Single |
| Included Angle | 90 ° |
| Centerline Angle | 45 ° |
| Shank Size | 1/8 " |
| Shank Length | 7/8 " |
| Overall Length | 1-1/4 " |
| UNSPSC #: | 23241603 |
| TAA Compliant: | No |
| Weight: | 0.01 lb |
