Diamond Grip Threaded Inserts

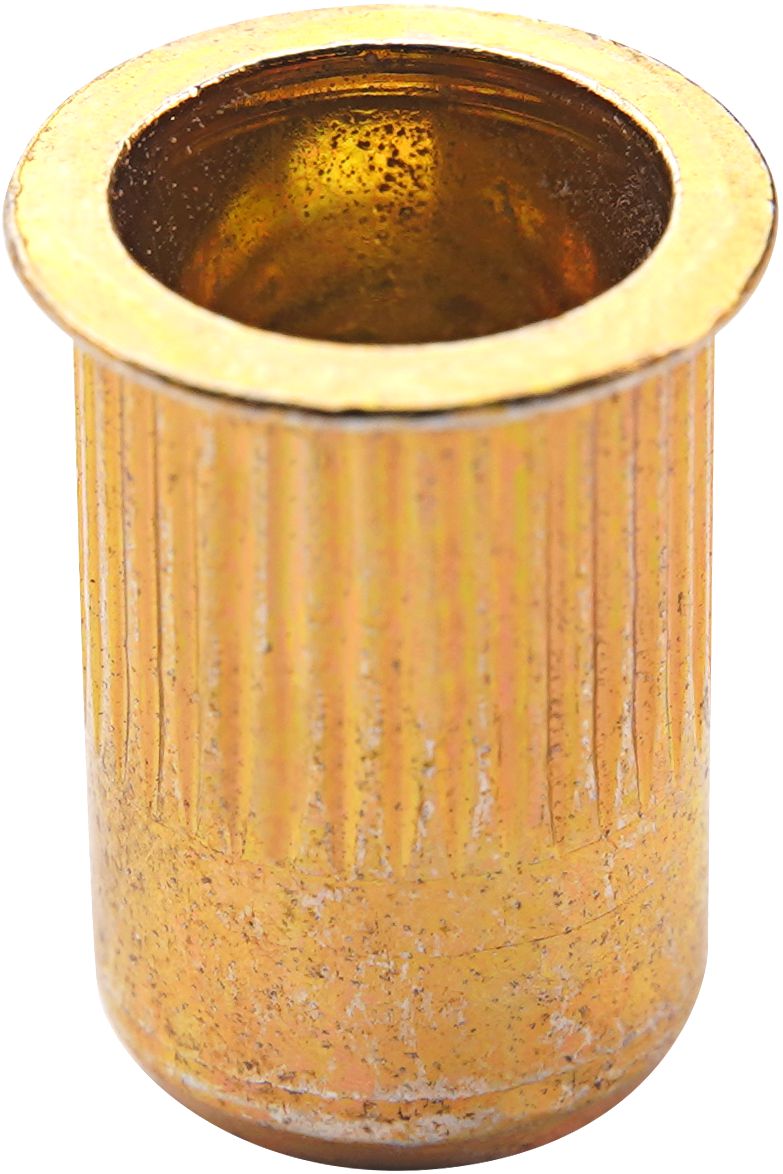

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Fine Thread, 1/4-28, 0.027 to 0.165" Grip
(Pack of 25)

Item#: 94735

Kent Automotive

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Read More
Check Availability

Catalog page#: 11-93

Frequently Bought Together


Sheet Metal Screw Phillips Truss Head #14 x 3/4"

Item#: 59456

Diamond Grip II Threaded Insert M6-1

Item#: 51681

Hex Cap Screw Property Class 8.8 M10-1.5 x 40mm

Item#: 61272

Bumper Fascia Push-Type Retainer Nylon 18mm

Item#: KT12847

Push-Type Retainer Nylon 15mm

Item#: 1372010

Wheel Opening Drive Rivet Aluminum 5/32"

Item#: P13787

Diamond Grip II Threaded Insert 3/8-16

Item#: 51677

Standard Threaded Insert M6-1

Item#: 85897

Diamond Grip II Threaded Insert 5/16-24

Item#: 94737

Product Description

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Technical Specifications

Item#: 94735
Diameter 1/4 "
Thread Pitch 28
Grip Range 0.027 – 0.165 "
Flange Type Standard Flange
Hole Size 0.391 "
Pilot Drill Size 25/64 "
Finish Yellow Zinc
Material Steel
Thread Fine
UNSPSC #: 31161616
TAA Compliant: Yes
Weight: 0.23 lb
