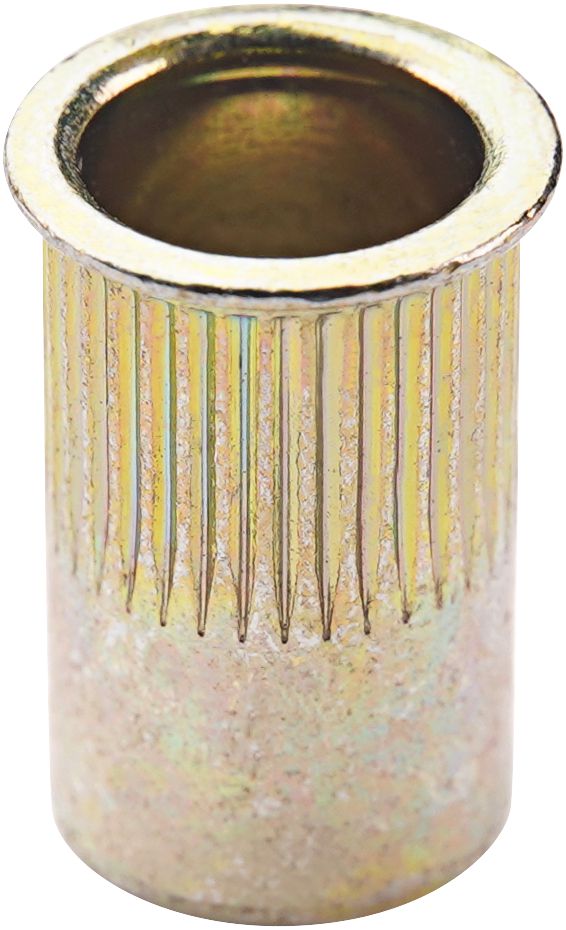

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Coarse Thread, M5-0.8, 0.5 to 3.3mm Grip, 7.6mm Hole
(Pack of
25)
SKU:94741 Item#: 94741
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Frequently Bought Together
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M8-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Conversion Kit #10-32
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 94741 |
|---|---|
| Diameter | M5 |
| Thread Pitch | 0.8 mm |
| Grip Range | 0.50 – 3.30 mm |
| Flange Type | Standard Flange |
| Hole Size | 7.60 mm |
| Pilot Drill Size | 19/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
