Home Diamond Grip Threaded Inserts Diamond Grip II Threaded Insert M10-1.5
Diamond Grip Threaded Inserts

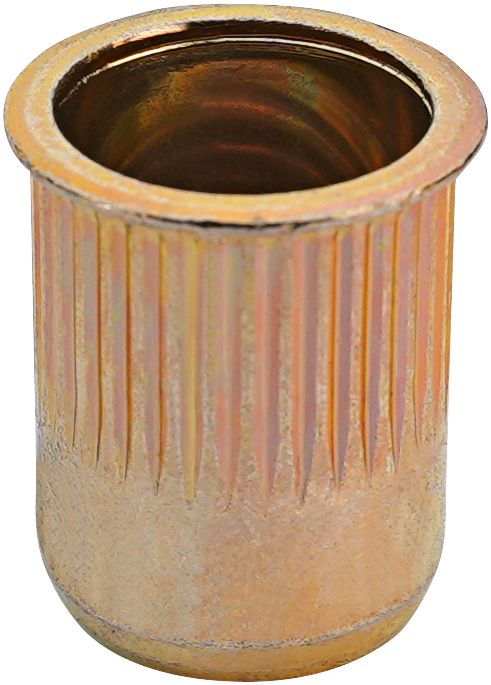

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Coarse Thread, M10-1.5, 0.7 to 3.8mm Grip
(Pack of 25)

Item#: 94744

Kent Automotive

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Read More
Check Availability

Catalog page#: 11-95

Frequently Bought Together


Blind Rivet Nut Insert Thin Wall #8-32

Item#: 1405481

Diamond Grip II Threaded Insert M6-1

Item#: 94742

Diamond Grip II Threaded Insert #10-32

Item#: 94733

Hex Flange Bolt Grade 10.9 M6-1 x 20mm

Item#: 28680

Open End Rivet Dome Head Aluminum 5/32"

Item#: 1968

DIN 125A Flat Washer Grade 140 HV M8

Item#: 80263

Front Bumper Specialty Nut Steel M4.2-1.41

Item#: 1420584

Front Fender Liner Push-Type Retainer Nylon 20mm

Item#: P24252

Rocker Panel Molding Clip Nylon White 12 x 20mm

Item#: P85316

Conversion Kit 5/16-18

Item#: 28619

Diamond Grip II and Thin Wall Installation Tool

Item#: 84211

Threaded Insert Installation Tool

Item#: 84220

Product Description

• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.

Technical Specifications

Item#: 94744
Diameter M10
Thread Pitch 1.5 mm
Grip Range 0.70 – 3.80 mm
Flange Type Standard Flange
Hole Size 13.50 mm
Pilot Drill Size 17/32 "
Finish Yellow Zinc
Material Steel
Thread Coarse
UNSPSC #: 31161616
TAA Compliant: Yes
Weight: 0.41 lb
