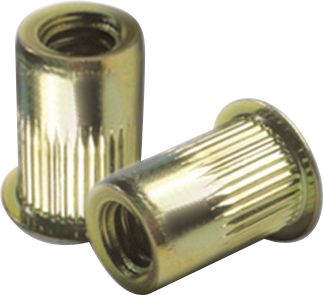

Diamond Grip II Threaded Insert 3/8-16
(Pack of
25.0)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Frequently Bought Together
Blind Rivet Nut Insert Thin Wall #8-32
Couldn't load pickup availability
Diamond Grip II Threaded Insert #8-32
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M5-0.8
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/4-20 x 1/2"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.5 x 50mm
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Gray 12mm
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Replacement Mandrel for M4/M5 Tool 3/8-16
Couldn't load pickup availability
Replacement Head Set for M4/M5 Tool M5
Couldn't load pickup availability
Riv-Float Rivet Nut Hand Tool #8-32
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 51677 |
|---|---|
| Diameter | 3/8 " |
| Thread Pitch | 16 |
| Grip Range | 0.027 – 0.150 " |
| Flange Type | Large Flange |
| Hole Size | 0.531 " |
| Pilot Drill Size | 17/32 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.41 lb |
Product Restrictions
