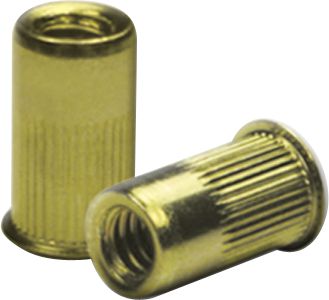

Diamond Grip II Threaded Insert #8-32
(Pack of
50)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Frequently Bought Together
Blind Rivet Nut Insert Thin Wall 3/8-16
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 1/4-20
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 3/8-16
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Replacement Mandrel for FLEX-5 Tool 8-32
Couldn't load pickup availability
Replacement Mandrel for LHF 202 Tool 8-32
Couldn't load pickup availability
Replacement Head Set for SSG Tool 10-24
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 51670 |
|---|---|
| Diameter | #8 |
| Thread Pitch | 32 |
| Grip Range | 0.020 – 0.080 " |
| Flange Type | Large Flange |
| Hole Size | 0.266 " |
| Pilot Drill Size | 17/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.19 lb |
Product Restrictions
