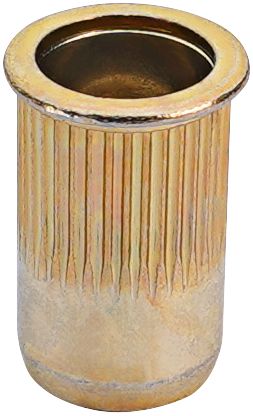

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Coarse Thread, #10-24, 0.02 to 0.13" Grip
(Pack of
50)
SKU:94732 Item#: 94732
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
Dash Panels
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Frequently Bought Together
Diamond Grip II Threaded Insert #10-32
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert 5/16-18
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert M10-1.5
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M10-1.5
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert 1/4-20
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
$0.00
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
Dash Panels
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 94732 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 24 |
| Grip Range | 0.020 – 0.130 " |
| Flange Type | Standard Flange |
| Hole Size | 0.297 " |
| Pilot Drill Size | 19/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
