EFG4K Hydraulic Hose, Neoprene Type A, 4-Spiral Steel Plies, 1" ID, 1.5" OD, 50' Length, 4000PSI, SAE 100R12
(Pack of
50)
SKU:58442 16 Item#: 58442 16
Recommended for extremely high-pressure hydraulic applications, Global 4-Spiral EFG4K hoses are effective with a broad temperature range while delivering superior impulse cycle life.
• See crimp chart for applicable settings
SAE 100R12

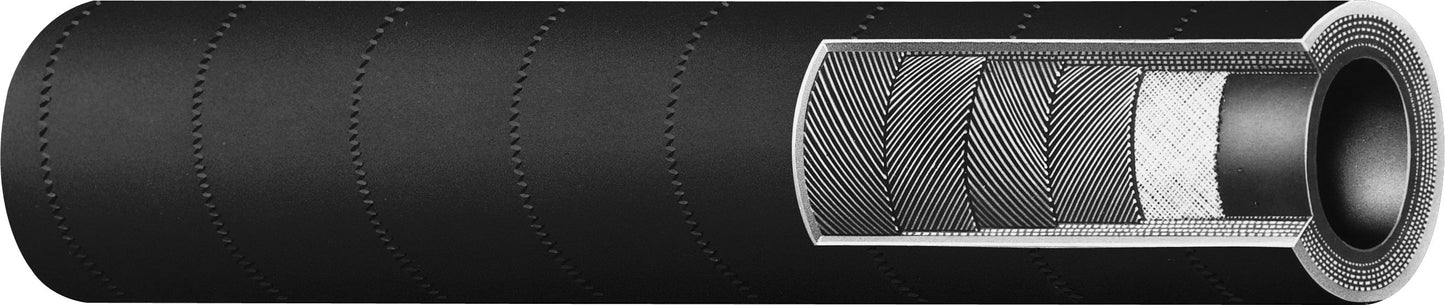

• Temperature range: –40°F to +250°F (–40°C to +121°C)• Tube and cover: Black, oil-resistant, synthetic rubber• Reinforcement: Four layers of alternated, spiraled, high tensile steel wire over a layer of fabric• Meets MSHA flame resistance acceptance requirements• Meets or exceeds SAE Specification 100R12
Use with GlobalSpiral™ Non-Skive Fittings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
One continuous 50-foot length (±10%).
Frequently Bought Together
3TR7 Hydraulic Thermoplastic Hose 0.93" x 50'
$0.00
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 400 Foot
$0.00
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 300 Foot
$0.00
Couldn't load pickup availability
Industrial O-Ring Buna-N 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.82" x 50'
$0.00
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 1" x 100'
$0.00
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 50'
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 5/8" x 100'
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Product Description
Recommended for extremely high-pressure hydraulic applications, Global 4-Spiral EFG4K hoses are effective with a broad temperature range while delivering superior impulse cycle life.• See crimp chart for applicable settings
SAE 100R12
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Tube and cover: Black, oil-resistant, synthetic rubber• Reinforcement: Four layers of alternated, spiraled, high tensile steel wire over a layer of fabric• Meets MSHA flame resistance acceptance requirements• Meets or exceeds SAE Specification 100R12
Use with GlobalSpiral™ Non-Skive Fittings
Crimp settings are available on-line at www.gates.com/ecrimp. Simply indicate the hose and fittings to be crimped, and E-Crimp generates a custom crimp chart.
One continuous 50-foot length (±10%).
Technical Specifications
| Item#: | 58442 16 |
|---|---|
| Manufacturer Model #: | 16EFG4K |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Spiral Plies |
| Category / Performance | Extremely High Pressure |
| Industry Rating 1 | SAE 100R12 |
| Industry Rating 2 | EN 856 R12 |
| Industry Rating | MSHA 2G |
| Manufacturer Series Number | EFG4K |
| Manufacturer Series Name | EFG4K |
| I.D. | 1 (-16) " |
| Hose O.D. | 1.50 " |
| Working Pressure | 4,000 PSI |
| Burst Pressure | 16,000 PSI |
| Fitting Series | Global Spiral (-6 to -20), GlobalSpiral™ One–Piece Couplings (MC 4–20) (–20 only), Global Spiral High Pressure (-24, -32), Stainless Steel Spiral Couplings (-6 to -20) |
| Bend Radius | 6.0 " |
| Inner Tube Material | Nitrile - Type C |
| Hose Reinforcement | 4 Spiral Steel Plies |
| Hose Cover Material | Neoprene - Type A |
| Temperature | Normal |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Impulse |
| Temperature Range | Petroleum based Fluids -40F to +250F, Water based emulsions to +200F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 55.0 lb |
