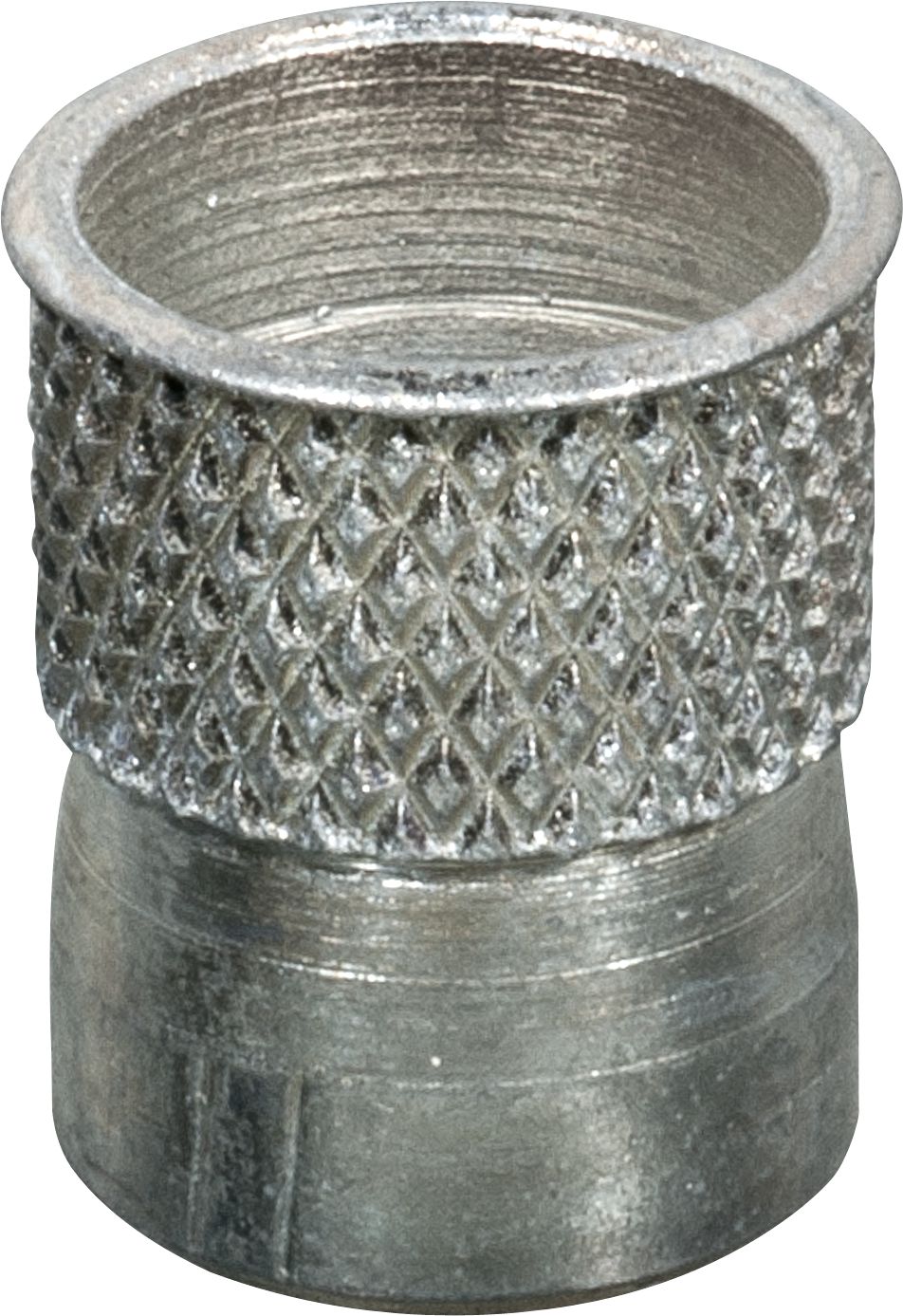

For Soft Material, CAD-Plated Finish, 3/8-24
(Pack of
25)
SKU:95979 Item#: 95979
• Tin-plated
• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Frequently Bought Together
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Item#: P58130
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Item#: P85035
$0.00
Couldn't load pickup availability
Product Description
• Tin-plated• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Technical Specifications
| Item#: | 95979 |
|---|---|
| Diameter | 3/8 " |
| Thread Pitch | 24 |
| Thread | Fine |
| Flange Type | Small Flange |
| Type | Soft Material Threaded Inserts |
| Body Type | Diamond Knurled |
| Hole Size | 0.594 " |
| Pilot Drill Size | 19/32 " |
| Pilot Drill Number | 81034 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.615 " |
| Body Diameter | 0.590 " |
| Length | 0.740 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | No |
| Weight: | 0.49 lb |
Product Restrictions
