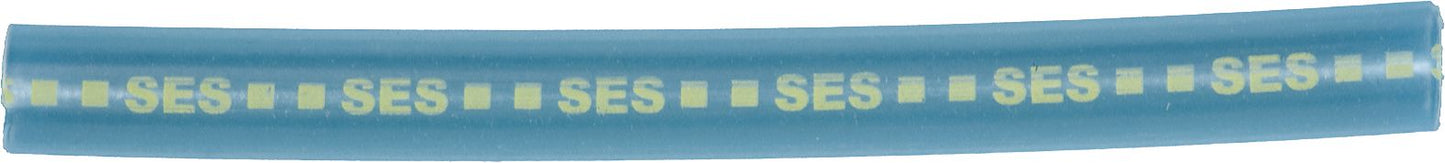

Adhesive Heat Shrink Tubing, 14 to 4 AWG, Clear/Yellow, 6" Length, 0.45" ID Before and 0.105" ID After Shrinkage, 4:1 Ratio
(Pack of
8)
SKU:16326 Item#: 16326
• 4:1 shrink ratio
• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 3CP
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Insulform Heat Shrink Tubing 22 to 18 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 20 to 14 AWG Black
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 60', 10 Rolls Per Pack
Couldn't load pickup availability
Product Description
• 4:1 shrink ratio• Very active, free-flowing adhesive flows between multiple wires to provide a barrier for contaminants that cause wire corrosion
• Flexible polyolefin material conforms to irregular shapes
• Clear tubing allows for visual inspection of the electrical components
• Color-coded by diameter
• 6" pre-cut lengths
• Dielectric strength: 500V/mil
• Continuous operating temperature: –67°F to +230°F (–55°C to +110°)
Excellent choice for wire harness and trailer wire applications. Adhesive-lined heat shrink tubing provides excellent protection for electrical terminations of primary wire and battery cables that are subjected to extreme conditions.
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 16326 |
|---|---|
| Type | Pre-Cut |
| Wire Gauge Coverage | 14-4 AWG |
| Length | 6 " |
| Color | Clear/Yellow |
| I.D. Before Shrinkage | 0.450 " |
| I.D. After Shrinkage | 0.105 " |
| Shrink Ratio | 4 to 1 |
| Dielectric Strength | 500 V/mm |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
