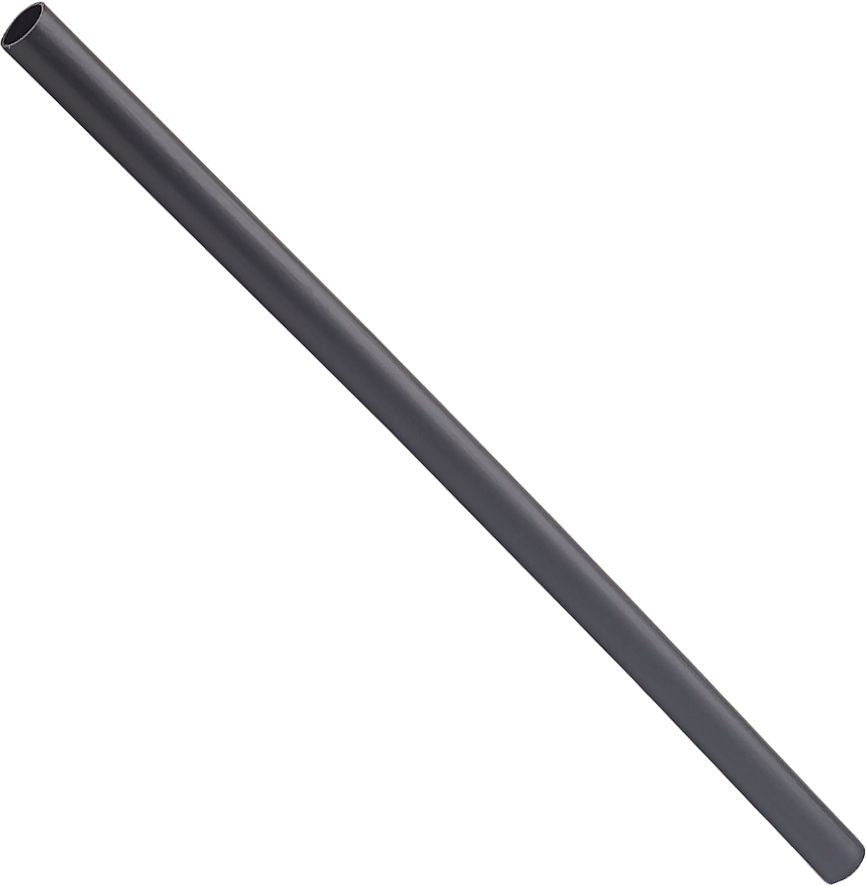

Heat Shrink Tubing, 20 to 14 AWG, Black, 6" Length, 0.187" ID Before and 0.06" ID After Shrinkage, 2.5:1 Shrink Ratio
(Pack of
10)
Protect and insulate your wiring projects with this Heat Shrink Tubing. Designed with a 2.5:1 shrink ratio and medium wall thickness, this tubing bridges the gap between thin and heavy-wall alternatives, making it perfect for light-duty electrical and mechanical applications. Its dual-layer construction combines high-grade polyolefin with a heat-activated adhesive sealant, ensuring a moisture-tight seal that withstands temperatures up to 230°F (110°C) and remains flexible even at –67°F (–55°C). Trusted by auto technicians and electricians alike, this electrical shrink tube provides superior corrosion, fluid, and fungus resistance while meeting MIL-1-23053/4 specifications. An essential tool, it delivers unmatched durability and protection with every application.
• 6" length
• Non-corrosive
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
H11 Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 21CP
Couldn't load pickup availability
Heat Shrink Tubing 18 to 12 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 24 to 22 AWG Clear
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 12 to 10 AWG Black
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
H11 Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 21CP
Couldn't load pickup availability
Temflex™ 165 Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Insulform Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Product Description
Protect and insulate your wiring projects with this Heat Shrink Tubing. Designed with a 2.5:1 shrink ratio and medium wall thickness, this tubing bridges the gap between thin and heavy-wall alternatives, making it perfect for light-duty electrical and mechanical applications. Its dual-layer construction combines high-grade polyolefin with a heat-activated adhesive sealant, ensuring a moisture-tight seal that withstands temperatures up to 230°F (110°C) and remains flexible even at –67°F (–55°C). Trusted by auto technicians and electricians alike, this electrical shrink tube provides superior corrosion, fluid, and fungus resistance while meeting MIL-1-23053/4 specifications. An essential tool, it delivers unmatched durability and protection with every application.• 6" length
• Non-corrosive
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 51879 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 20-14 AWG |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | .187 " |
| I.D. After Shrinkage | .060 " |
| Shrink Ratio | 2.5 to 1 |
| Wall Thickness After Shrinkage | 0.043 " |
| Dielectric Strength | 1000 V/mm |
| Voltage Rating | 600 V |
| Elongation | 450 % |
| Tensile Strength | 2,600 PSI |
| Heat Shock | 168 hours at 482 degrees F |
| Secant Modulus | 16,000 PSI |
| Longitudinal Change | Less than 10% |
| Approvals | Meets MIL-1-23053/4 Specification |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
