Home Bolts Hex Cap Screw Grade 5 1/4-20 x 1"
Bolts

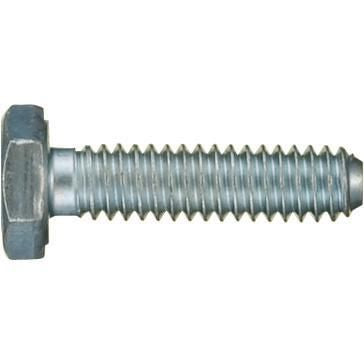

Hex Cap Screw, Grade 5, Steel, Zinc Finish, Coarse Thread, 5/32" Head Height, 7/16" Across Flats, 1/4-20 x 1"
(Pack of 100)

Item#: FA65002

FalconGrip®

• 120,000 PSI minimum tensile strength (SAE Grade 5)
• Conforms to SAE J429 material and mechanical properties
• High quality
• Available in coarse (UNC) and fine (UNF) thread types
• Product dimensions to ANSI B18.2.1

Read More
Check Availability

Catalog page#: 11-20

Frequently Bought Together


Hex Flange Bolt Grade 10.9 M6-1 x 20mm

Item#: 28680

DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm

Item#: 59411

Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm

Item#: 55607

Hex Cap Screw Grade 5 5/16-18 x 2"

Item#: FA65021

Hex Cap Screw Property Class 8.8 M6-1 x 25mm

Item#: 27332

Hex Cap Screw Grade 5 1/4-20 x 1/2"

Item#: FA65000

Serrated Hex Flange Nut Alloy Steel M6-1

Item#: 28699

DIN 125A Flat Washer Grade 140 HV M10

Item#: 80264

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82353

Hex Flange Bolt Grade 10.9 M6-1 x 12mm

Item#: 28678

Hex Nut Grade 8 Steel M10-1.5

Item#: 4305

Serrated Hex Flange Nut Alloy Steel M8-1.25

Item#: 28700

Fender Splash Shield Push Rivet Nylon 7mm Hole

Item#: KT14296

Front Fender Liner Push-Type Retainer Nylon 20mm

Item#: P24252

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Item#: KT13763

Product Description

• 120,000 PSI minimum tensile strength (SAE Grade 5)
• Conforms to SAE J429 material and mechanical properties
• High quality
• Available in coarse (UNC) and fine (UNF) thread types
• Product dimensions to ANSI B18.2.1

Technical Specifications

Item#: FA65002
Style Industry Standard
Diameter 1/4 "
Thread Pitch 20
Thread Coarse
Length 1 "
Type Hex Cap Screw
Across Flats 7/16 "
Material Carbon Steel
Grade 5
Finish Bright Zinc
Tensile Strength 120,000 PSI
Head Style Hex
Head Height 5/32 "
Thread Form UNR
Thread Length Partial
Thread Length Minimum 3/4 "
UNSPSC #: 31161501
TAA Compliant: No
Weight: 1.73 lb
