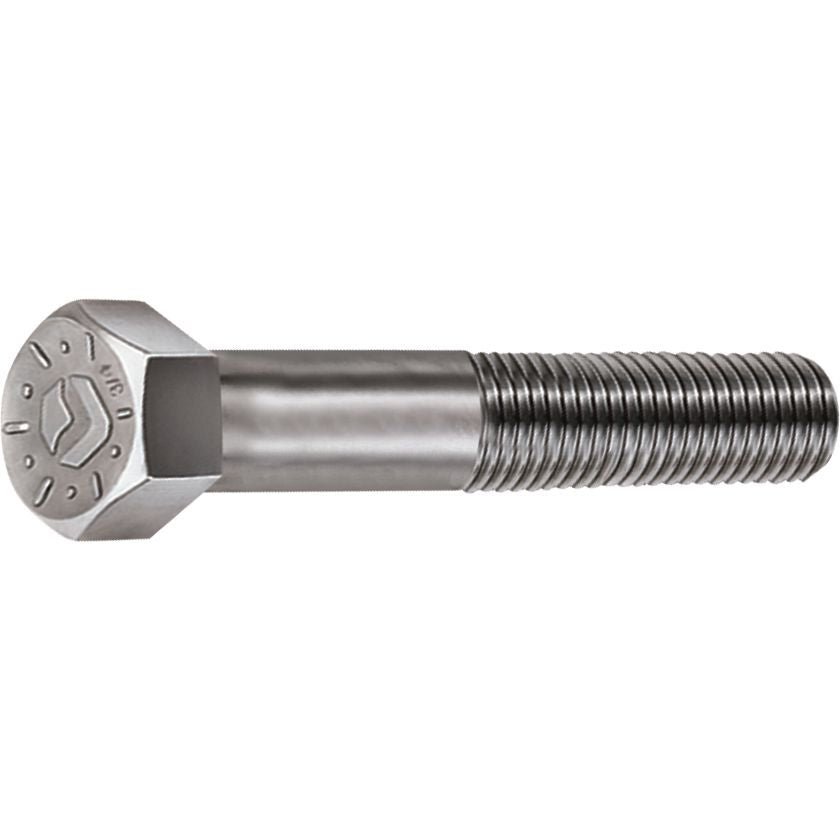

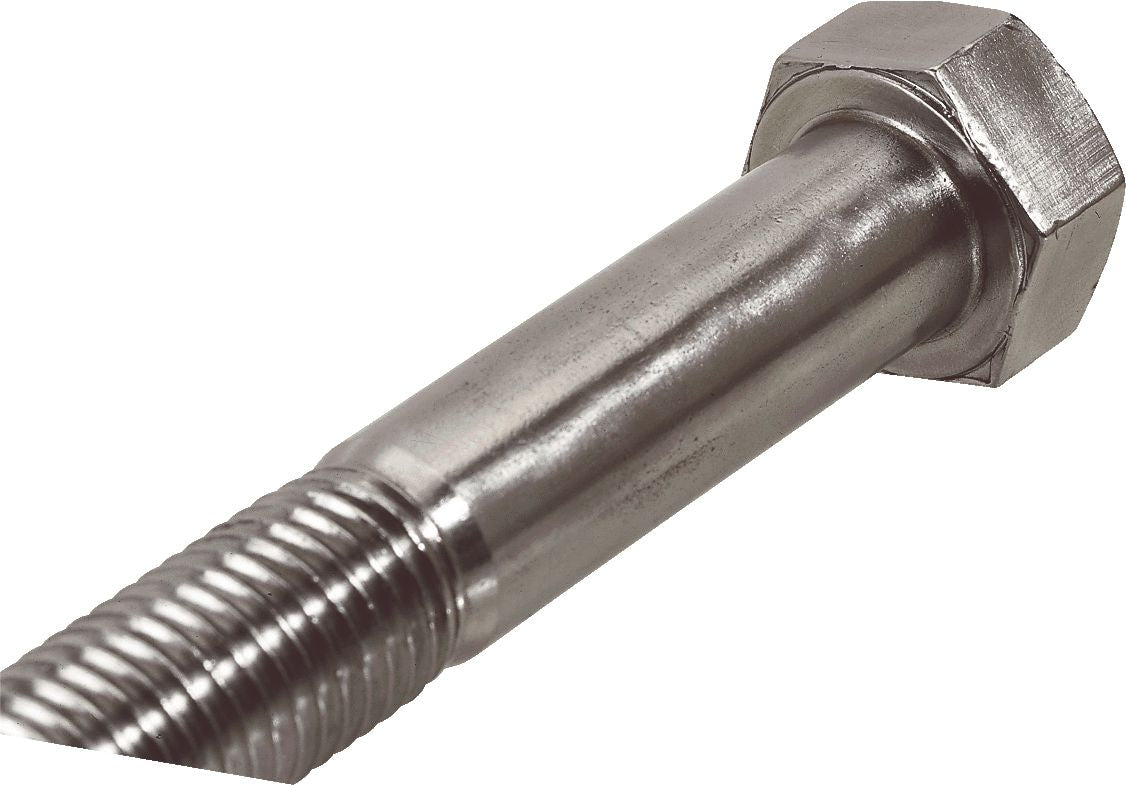

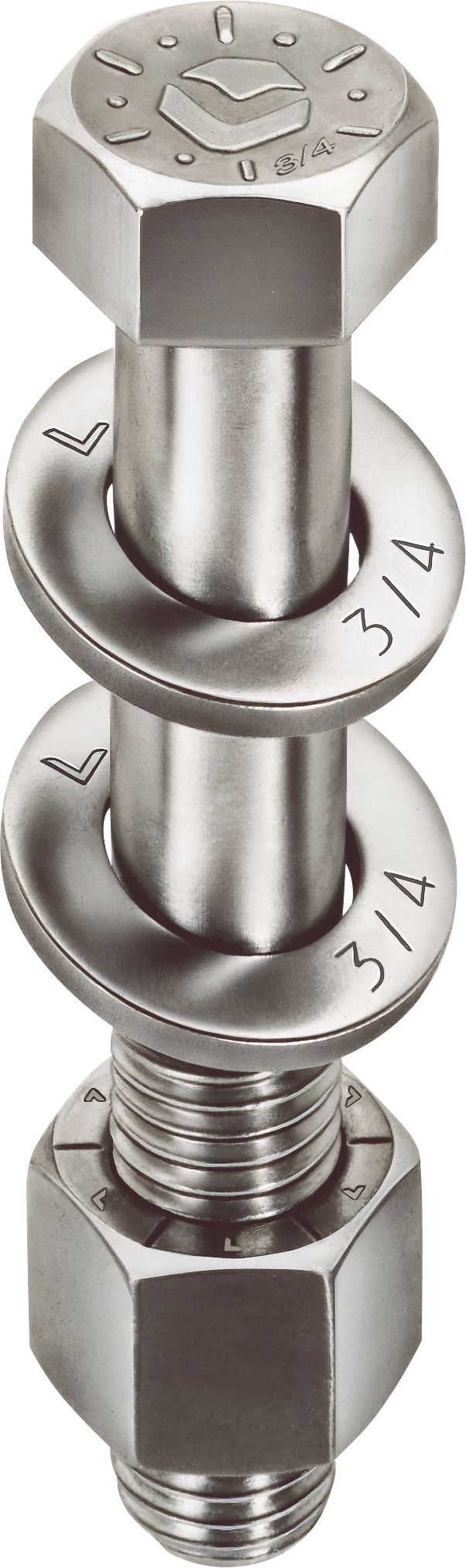

Hex Cap Screw Grade 9 Alloy Steel 7/8-9 x 5"
(Pack of
1.0)
• Ultra-high-strength matched component fastening system
• 20% stronger than Grade 8
• Fatigue/vibration-resistant UNJ thread design

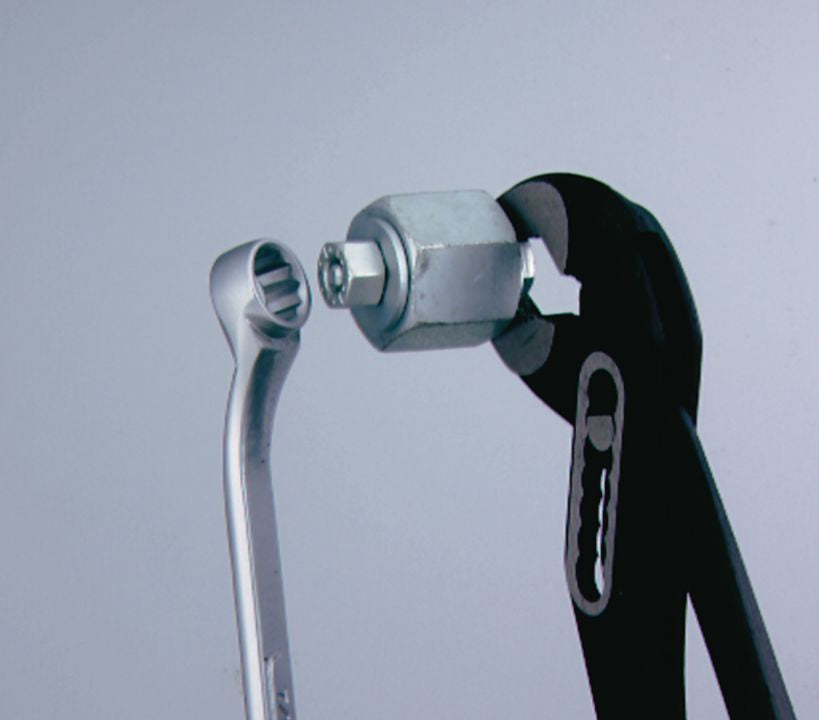

• 20% higher-than-normal wrenching surface for increased safety and even distribution of torque forces
• Heat-treated, quenched and tempered
• Perma Plated for superior corrosion protection
• Proprietary head marking for improved traceability
• Diameter marked on head for easy identification

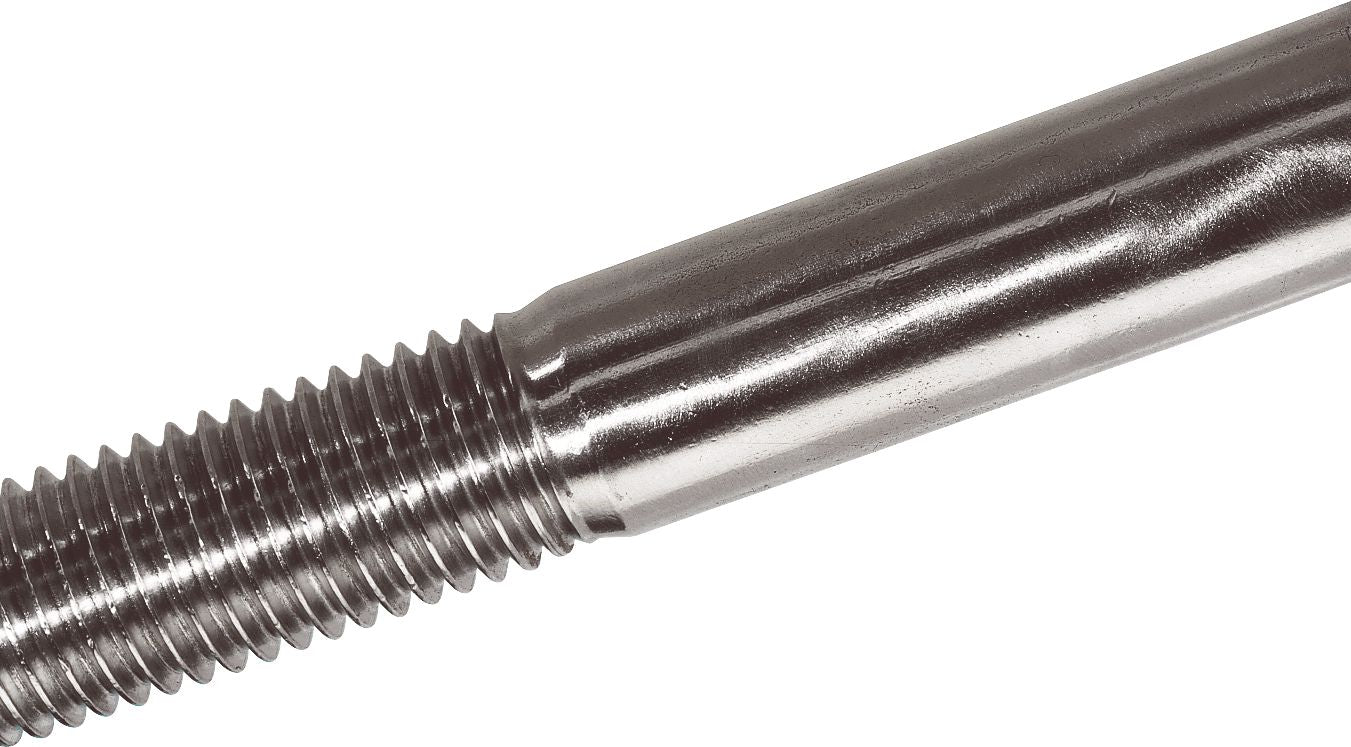

• Trailing thread does not enter the extrusion angle

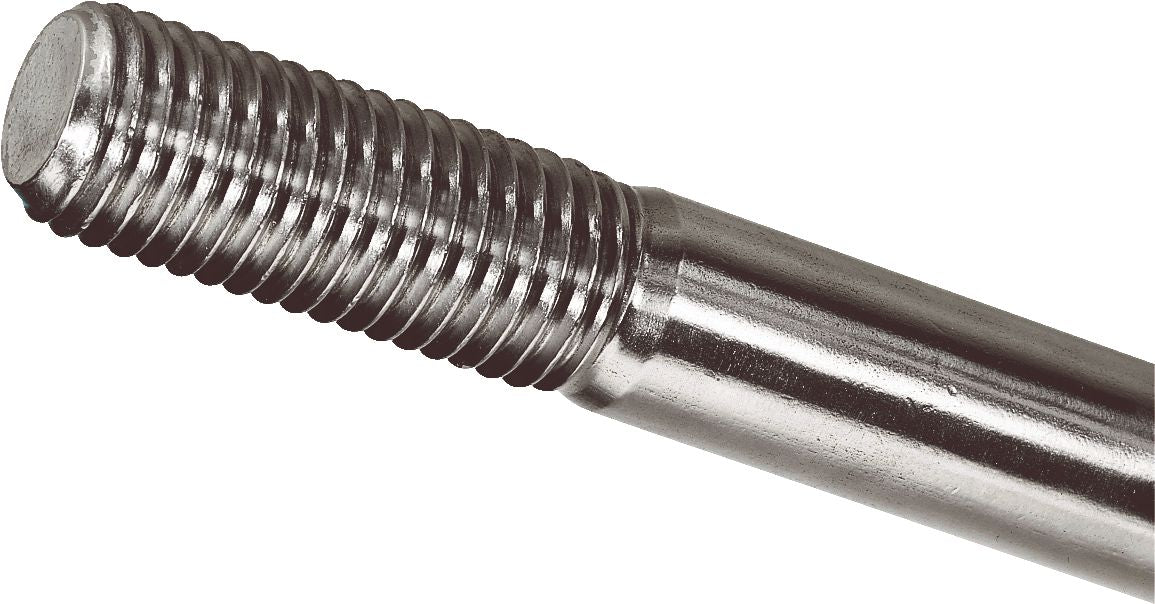

• Increased length of chamfer allows easier alignment and assembly
• Matched strength nuts, flat washers and lock nuts available
• Minimum 180,000 PSI tensile strength
• Exceeds SAE, ASTM and Military Grade 8 strength requirements
• Designed for the most demanding maintenance requirements
• For use in critical applications
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4"; Over 6" Long: (2 x Diameter) + 1/2
Frequently Bought Together
Hex Cap Screw Grade 8 Alloy Steel 5/8-18 x 2-1/2"
Couldn't load pickup availability
Hex Flange Bolt Grade 8 1/4-20 x 1"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 16mm
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Couldn't load pickup availability
Hex Cap Screw Grade 5 3/8-16 x 2-1/2"
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M8-1.25 x 30mm
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Product Description
• Ultra-high-strength matched component fastening system• 20% stronger than Grade 8
• Fatigue/vibration-resistant UNJ thread design
• 20% higher-than-normal wrenching surface for increased safety and even distribution of torque forces
• Heat-treated, quenched and tempered
• Perma Plated for superior corrosion protection
• Proprietary head marking for improved traceability
• Diameter marked on head for easy identification
• Trailing thread does not enter the extrusion angle
• Increased length of chamfer allows easier alignment and assembly
• Matched strength nuts, flat washers and lock nuts available
• Minimum 180,000 PSI tensile strength
• Exceeds SAE, ASTM and Military Grade 8 strength requirements
• Designed for the most demanding maintenance requirements
• For use in critical applications
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4"; Over 6" Long: (2 x Diameter) + 1/2
Technical Specifications
| Item#: | XA740 |
|---|---|
| Style | Premium |
| Diameter | 7/8 " |
| Thread Pitch | 9 |
| Thread | Coarse |
| Length | 5 " |
| Type | Hex Cap Screw |
| Across Flats | 1-5/16 " |
| Material | Alloy Steel |
| Grade | 9 |
| Finish | Bright Zinc |
| Tensile Strength | 180,000 PSI |
| Head Style | High Hex |
| Head Height | 21/32 " |
| Thread Form | UNJ |
| Thread Length | Partial |
| Thread Length Minimum | 2 " |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 2.05 lb |
