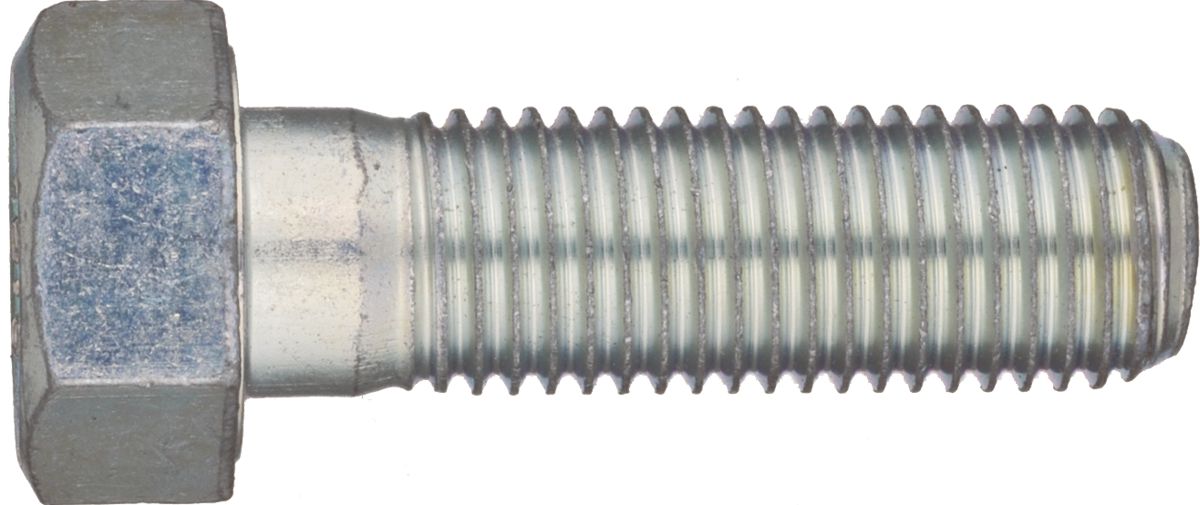

DIN 931 Hex Cap Scrw, Property Class 12.9, Alloy S, Zinc Finish, Coarse Thrd, 15mm Hd Height, 30mm Across Flats, M20-2.5 x 80mm
(Pack of
3)
SKU:84502A Item#: 84502A
The MJ Series thread form that Lawson uses on its cap screws offers improved fatigue strength over common threads. The more generous root radius puts more material at the key stress points of the threads.
• The metric equivalent of Lawson’s Tru-Torq® fasteners
• Exceeds standard 10.9 strength characteristics by 25% for that extra margin of safety
• Dimensions conform to ISO 4014 and 4017 specifications, except for increased head height for better wrenching ability
• Special fatigue-resistant MJ (UNJ) thread form that meets ANSI dimensions
• Fully traceable to Lawson
• Property Class 12.9 – 1,242 MPa (180,000 PSI) minimum ultimate tensile strength
Frequently Bought Together
Hex Flange Bolt Grade 8 3/8-16 x 1-1/2"
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M6-1 x 30mm
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M8-1.25 x 30mm
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M14-2 x 60mm
Couldn't load pickup availability
Hex Cap Screw 316 Stainless Steel 3/8-16 x 1-1/4"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M10-1.5 x 40mm
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Couldn't load pickup availability
Quick Seal 2000 Sprayable Seam Sealer Beige
Couldn't load pickup availability
Swirl Remover 16oz
Couldn't load pickup availability
CryoBoost Cobalt Drill Bit, 17/64" Dia. W/Flats
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/16-18
Couldn't load pickup availability
Hex Nut Grade 8 Steel 1/2-13
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Product Description
The MJ Series thread form that Lawson uses on its cap screws offers improved fatigue strength over common threads. The more generous root radius puts more material at the key stress points of the threads.• The metric equivalent of Lawson’s Tru-Torq® fasteners
• Exceeds standard 10.9 strength characteristics by 25% for that extra margin of safety
• Dimensions conform to ISO 4014 and 4017 specifications, except for increased head height for better wrenching ability
• Special fatigue-resistant MJ (UNJ) thread form that meets ANSI dimensions
• Fully traceable to Lawson
• Property Class 12.9 – 1,242 MPa (180,000 PSI) minimum ultimate tensile strength
Technical Specifications
| Item#: | 84502A |
|---|---|
| Style | Premium |
| Diameter | M20 |
| Thread Pitch | 2.5 mm |
| Thread | Coarse |
| Length | 80 mm |
| Type | Hex Cap Screw |
| Across Flats | 30 mm |
| Material | Alloy Steel |
| Grade | 12.9 |
| Finish | Bright Zinc |
| Tensile Strength | 1,242 MPa |
| Specifications | DIN 931 |
| Head Style | High Hex |
| Head Height | 15 mm |
| Thread Length | Partial |
| Thread Length Minimum | 46 mm |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 1.78 lb |
