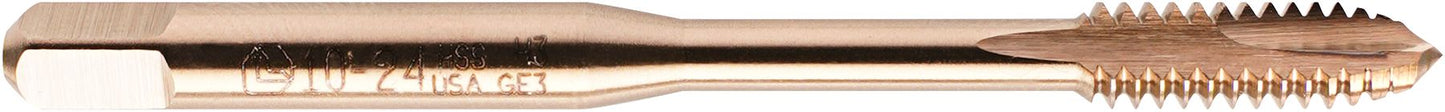

Spiral Point Hand Tap, High Speed Steel, 2 Flute, 10-24, 1/2" Thread Length
(Pack of
1)
SKU:61118 Item#: 61118
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Twist-On Abrasive Disc 2"
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
Couldn't load pickup availability
Aluminum Oxide Grain Locking Grinding Disc 2"
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Pilotdrive Cryotap M7 x 1.0 Starter Hand Tap
Couldn't load pickup availability
HSS Spiral Point Hand Tap M16 x 2
Couldn't load pickup availability
Pilotdrive Cryotap 1/4"-28 Starter Hand Tap
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap 1/2-13
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 1-8
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 8-32
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
Couldn't load pickup availability
2.1 Round Head Ratchet 3/8 Drive 168 Tooth
Couldn't load pickup availability
Abrasive Hand Pad All Purpose 6 x 9"
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61118 |
|---|---|
| Type | Machine Screw |
| Diameter | #10 |
| Pitch | 24 |
| Flutes | 2 |
| Thread Length | 1/2 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | No. 25 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
