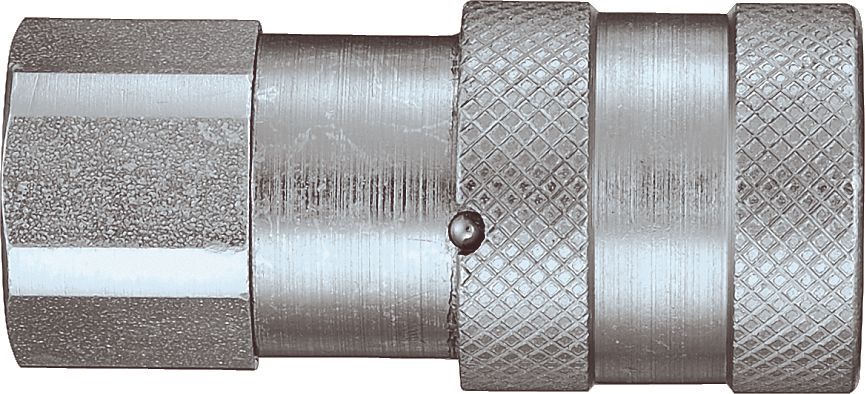

Hydraulic Quick Connect Coupler, Steel, ISO 16028, 1/4" x 1/4-18, Female NPTF, 1.89" Length, 4350PSI
(Pack of
1)
SKU:29969 Item#: 29969
Keep hydraulic connections clear in dirty conditions with this Quick Connect Coupler. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
• Zinc-plated steel body
• PTFE and nitrile rubber seals
• Conforms to ISO 16028 Standards
• Operating temperature range: –4°F to +212°F
• 3/8" body size meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
Frequently Bought Together
08Z-BC48- Hose End (perm) 1S/1R 45 D Male STC
Couldn't load pickup availability
06Z-BC08- Hose End (perm) 1S/1R Str Male STC
Couldn't load pickup availability
06Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 25' air hose
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 1/4" x 1/4-18
Couldn't load pickup availability
Hydraulic Quick Connect Replacement Seal 1/2"
Couldn't load pickup availability
Hydraulic Quick Connect Replacement Seal 1/4"
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
Keep hydraulic connections clear in dirty conditions with this Quick Connect Coupler. The flat face design wipes clean easily and operates successfully in applications involving high pressure pulses. Heavy-duty locking sleeve provides greater strength and prevents accidental disconnection, while non-spill design guards against fluid loss during connection and disconnection. Ideal for use in agriculture, construction, mobile equipment, general industrial, mining and nuclear equipment. To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.• Zinc-plated steel body
• PTFE and nitrile rubber seals
• Conforms to ISO 16028 Standards
• Operating temperature range: –4°F to +212°F
• 3/8" body size meets or exceeds HTMA requirements
Dixon: HT-Series
To couple, wipe the mating faces clean and push the two halves together until they click shut. Twist the sleeve to lock the coupling. To release, align the notched sleeve with the ball and pull back – the coupling springs apart.
Technical Specifications
| Item#: | 29969 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 16028 |
| Standards | ISO 16028 |
| Body Size | 6.3mm (1/4") |
| Thread Size | 1/4-18 |
| Thread Style | Female NPTF |
| Burst Pressure | 17,400 PSI |
| Seal Material | Nitrile |
| Material | Steel |
| Locking Mechanism | 12 Balls |
| Flow | 3.2 gal/min |
| Length | 1.89 " |
| Temperature Range | -40 to 212 F |
| Working Pressure | 4,350 PSI |
| Hex Size | 0.87 " |
| Maximum Diameter | 1.10 " |
| Coupled Length | 3.35 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
