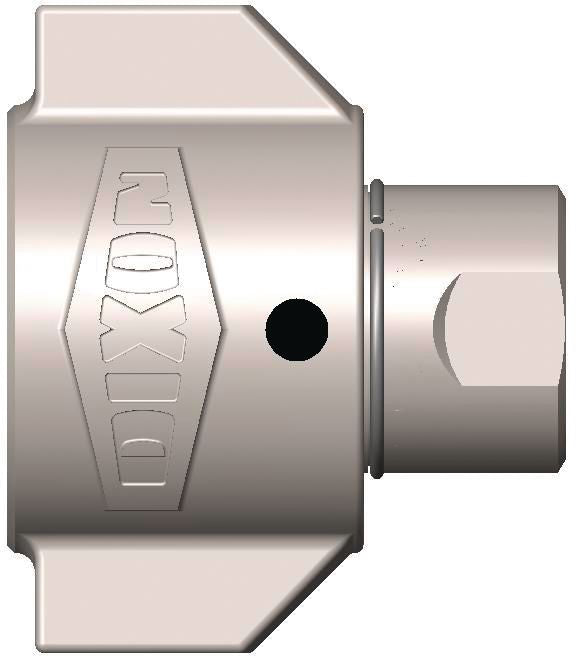

Hydraulic Quick Connect Coupler, Steel, Wing Style, 1" x 1-11-1/2, Female NPTF, 3.45" Length, 5000PSI
(Pack of
1)
SKU:20989 Item#: 20989
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environments
Dixon: WS SeriesSnap-tite: 75 Series
Frequently Bought Together
Braided Collet Orange
$0.00
Couldn't load pickup availability
Z Series Crimp-On Hose End 1/4" x G-3/8-19
$0.00
Couldn't load pickup availability
Spacer Ring Red
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 1/2" FPT X 1/2" Body
$0.00
Couldn't load pickup availability
Hydraulic Check Valve 1-11/12" x 1-11/12
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Brass 3/8" x 1/2-14
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Product Description
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers• Heavy-duty hammer lugs provide optimum durability• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve• Comply with Det Norske Veritas North Sea standards• Unique “initial-thread” profile ensures nipple longevity in tough environmentsDixon: WS SeriesSnap-tite: 75 Series
Technical Specifications
| Item#: | 20989 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | Wing Style |
| Body Size | 1 " |
| Thread Size | 1-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 25,100 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 65 gal/min |
| Length | 3.45 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 5,000 PSI |
| Hex Size | - " |
| Maximum Diameter | 4.00 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 3.26 lb |
