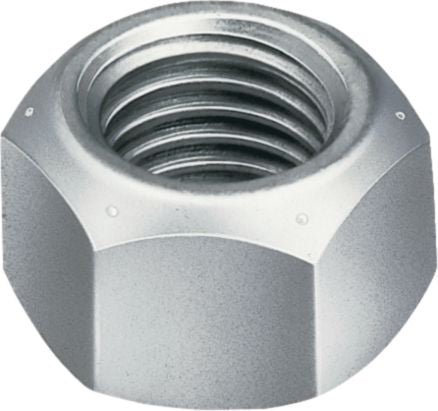

IFI 100/107 Top Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread, 1.018" Thickness, 1-1/2" Across Flats, 1-8
(Pack of
10)
SKU:80936 Item#: 80936
• Heat-treated for matched strength
• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Frequently Bought Together
Open End Rivet Dome Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
$0.00
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
$0.00
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
$0.00
Couldn't load pickup availability
Flange Locknut with Nylon Insert Grade 8 1/4-20
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M6-1
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 30mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
• Heat-treated for matched strength• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Technical Specifications
| Item#: | 80936 |
|---|---|
| Diameter | 1 " |
| Thread Pitch | 8 |
| Grade | C |
| Finish | Zinc/Wax |
| Type | Top Lock Nut |
| Material | Alloy Steel |
| Thickness | 1.018 " |
| Across Flats | 1-1/2 " |
| Thread | Coarse |
| Specifications | IFI 100/107 |
| Maximum Temperature | 450º F |
| Proof | 150,000 PSI |
| Quantity Per Package | 10.0000 |
| UNSPSC #: | 31161716 |
| TAA Compliant: | No |
| Weight: | 2.59 lb |
Product Restrictions
