Home Fasteners Locknut Tri-Lobular Thick Grade C 3/8-16
Fasteners

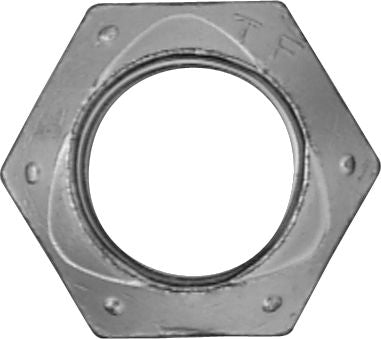

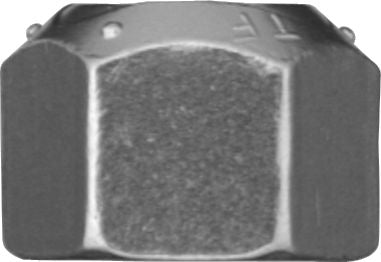

Tri-Lobular Thick Locknut, Grade C, Alloy Steel, Zinc/Wax Finish, Coarse Thread, 13/32" Thickness, 9/16" Across Flats, 3/8-16
(Pack of 50)

Item#: 53697

Tru-Torq®

• Specifically designed for use with Lawson’s Tru-Torq® fastening system
• Tri-lobular locking feature for even pressure distribution and superior engageability
• Cadmium-plated with Friction Control
• 180,000 PSI minimum proof-load strength
• Meets or exceeds SAE J995
• Conforms to ANSI B18.2.2
NOTE: Not recommended for use above 450°F (232°C).

Read More
Check Availability

Catalog page#: 11-10

Frequently Bought Together


DIN 125A Flat Washer Grade 140 HV M12

Item#: 80265

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1965

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

SAE J995C Locknut with Nylon Insert Grade A 7/8-9

Item#: 308

SAE J995C Locknut with Nylon Insert Grade 8 1/4-28

Item#: 53989

Locknut with Nylon Insert 18-8 SS 3/8-16

Item#: 1300247

Hex Nut Grade 5 Steel 1/2-13

Item#: FA95681

Hex Nut Grade 10 Alloy Steel M8-1.25

Item#: 10241

Hex Flange Nut Grade 10 Steel M6-1

Item#: 59767

Hex Cap Screw Property Class 8.8 M6-1 x 16mm

Item#: 27330

Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm

Item#: 28688

DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 20mm

Item#: 59412

Fender and Bumper Push-Type Retainer Nylon 18mm

Item#: P86117

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

Air Distributor Defroster Push-Type Retainer

Item#: P85035

Product Description

• Specifically designed for use with Lawson’s Tru-Torq® fastening system
• Tri-lobular locking feature for even pressure distribution and superior engageability
• Cadmium-plated with Friction Control
• 180,000 PSI minimum proof-load strength
• Meets or exceeds SAE J995
• Conforms to ANSI B18.2.2
NOTE: Not recommended for use above 450°F (232°C).

Technical Specifications

Item#: 53697
Diameter 3/8 "
Thread Pitch 16
Grade C
Finish Zinc/Wax
Type Tri-Lobular Lock Nut
Material Alloy Steel
Thickness 13/32 "
Across Flats 9/16 "
Thread Coarse
Specifications IFI 100/107 and ANSI B18.2.2
Maximum Temperature 450º F
Proof 180,000 PSI
Quantity Per Package 50.0000
UNSPSC #: 31161716
TAA Compliant: Yes
Weight: 0.91 lb
