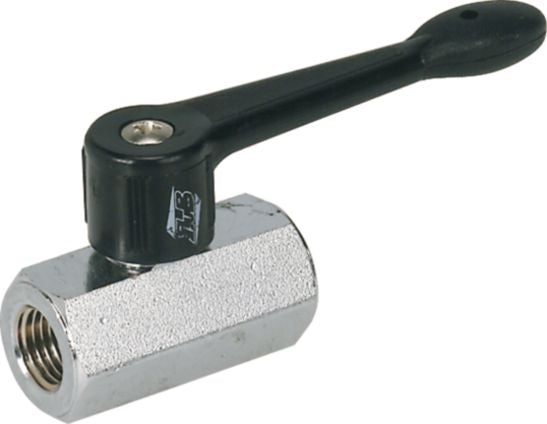

Mini Ball Valve, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 300 WOG PSI
(Pack of
1)
SKU:63155 Item#: 63155
• 24-hour 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• One-piece, drawn, sand blasted brass body incorporating stem neck which provides excellent guidance of the stem
• Finest brass according to EN 12164 specification
• NPT taper ANSI B.1.20.1 female by female threads
• Two FPM O-rings at the stem for maximum safety
• Reinforced nylon black lever or T-handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 200 PSI
• Operating temperature: –4°F to +200°F
Applications:
• Pneumatic
Frequently Bought Together
Pipe Adapter Brass 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Street Tee Brass 1/4-18 x 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 1/2-14
$0.00
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Nipple Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
• 24-hour 100% seal test guaranteed• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• One-piece, drawn, sand blasted brass body incorporating stem neck which provides excellent guidance of the stem
• Finest brass according to EN 12164 specification
• NPT taper ANSI B.1.20.1 female by female threads
• Two FPM O-rings at the stem for maximum safety
• Reinforced nylon black lever or T-handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 200 PSI
• Operating temperature: –4°F to +200°F
Applications:
• Pneumatic
Technical Specifications
| Item#: | 63155 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | Mini |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1/4-18 |
| Fitting Dimension B | 1/4-18 |
| Working Pressure | 300 PSI |
| Temperature Range | -4 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.3 lb |
Product Restrictions
