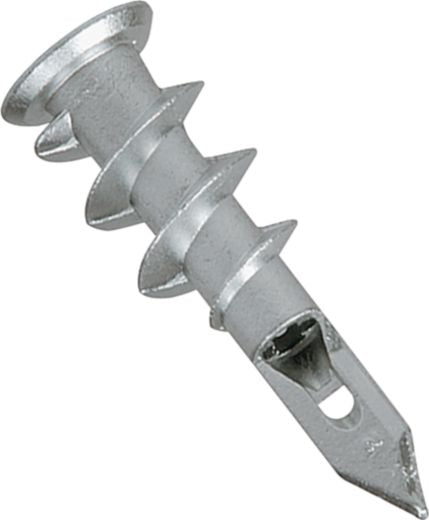

Mini Self-Drilling Wall Anchor, Steel, Die-Cast Zinc Finish, 1-1/4"
(Pack of
25)
SKU:98669 Item#: 98669
• One-piece anchor for mounting to drywall
• No pre-drilling or hole preparation
• Installs with little effort, using a #2 or #3 Phillips screwdriver or Power Driver
• Made from 100% zinc, die-cast for exceptional corrosion resistance
• Bugle head seats flush and is easily hidden behind brackets, fixtures and electronic devices
• Versatile internal core design allows use of No. 6 or No. 8 sheet metal screws and No. 6, No. 7 or No. 8 drywall screws

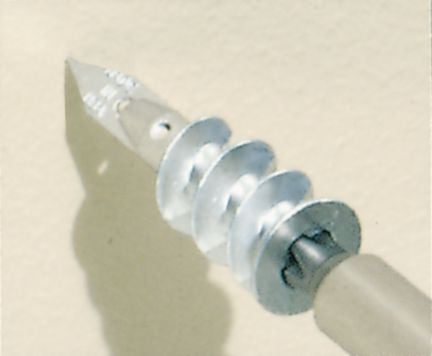

1. Place #2 Phillips screwdriver in recess of E-Z Anchor.

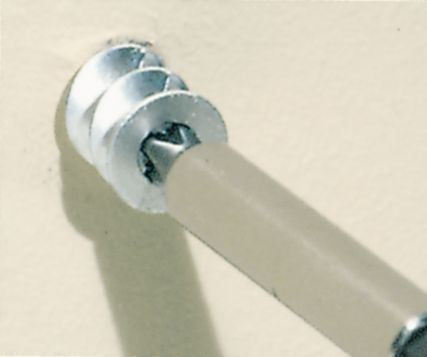

2. Drive E-Z Anchor into wall until flush with surface.

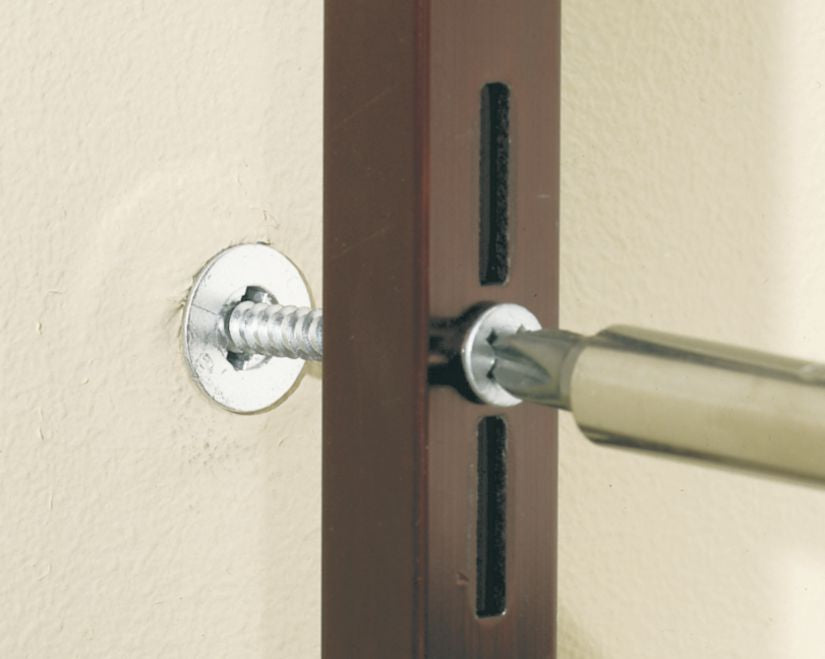

3. Place fixture over anchor, and drive screw with screwdriver.

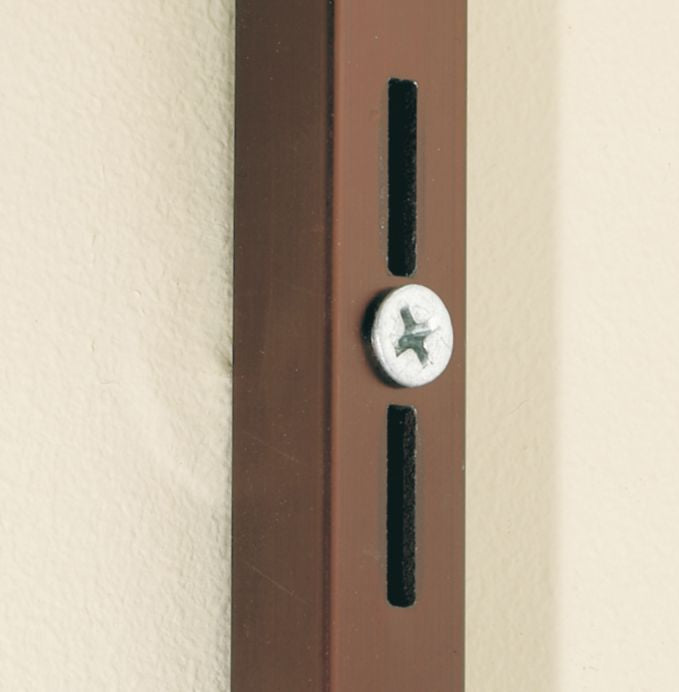

4. Tighten fixture into place. (Minimum of 1" thread engagement is recommended for anchor.)
NOTE: Screw length is determined by adding 1" to the thickness of the fixture to be attached.
Frequently Bought Together
Toggle Bolt Anchor Assortment 70Pcs
$0.00
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Assortment 283Pcs
$0.00
Couldn't load pickup availability
Standard Self-Drilling Wallboard Anchor Kit 41Pcs
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M8
$0.00
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
ALLIGATOR® Anchor Nylon #4 to #10
$0.00
Couldn't load pickup availability
Arrow Point Drywall Anchor Steel #8
$0.00
Couldn't load pickup availability
Hollow Wall Screw Anchor Extra Short Style # 6-32
$0.00
Couldn't load pickup availability
Product Description
• One-piece anchor for mounting to drywall• No pre-drilling or hole preparation
• Installs with little effort, using a #2 or #3 Phillips screwdriver or Power Driver
• Made from 100% zinc, die-cast for exceptional corrosion resistance
• Bugle head seats flush and is easily hidden behind brackets, fixtures and electronic devices
• Versatile internal core design allows use of No. 6 or No. 8 sheet metal screws and No. 6, No. 7 or No. 8 drywall screws
1. Place #2 Phillips screwdriver in recess of E-Z Anchor.
2. Drive E-Z Anchor into wall until flush with surface.
3. Place fixture over anchor, and drive screw with screwdriver.
4. Tighten fixture into place. (Minimum of 1" thread engagement is recommended for anchor.)
NOTE: Screw length is determined by adding 1" to the thickness of the fixture to be attached.
Technical Specifications
| Item#: | 98669 |
|---|---|
| Manufacturer Model #: | 5033900QUOTE #36652 |
| Type | Wall Anchor |
| Material | Steel |
| Pullout Ultimate Average Lbs.Drywall Thickness 5 / 8" | 50 |
| Shear Ultimate Average Lbs.Drywall Thickness 1 / 2" | 110 lb |
| Shear Ultimate Average Lbs.Drywall Thickness 3 / 8" | 3/8" - 90 Lbs., 1/2" - 110 Lbs., 5/8" - 140 Lbs. lb |
| Pullout Ultimate Average Lbs.Drywall Thickness 3 / 8" | 3/8" - 30 Lbs., 1/2" - 40 Lbs., 5/8" - 50 Lbs. |
| Pullout Ultimate Average Lbs.Drywall Thickness 1 / 2" | 40 |
| Pullout Ultimate Average Lbs. | 50 |
| Shear Ultimate Average | 140 lb |
| Shear Ultimate Average Lbs.Drywall Thickness 5 / 8" | 140 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
