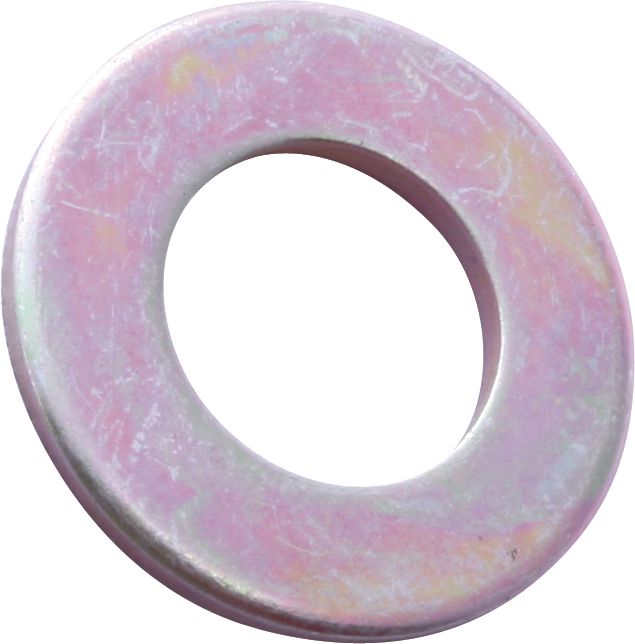

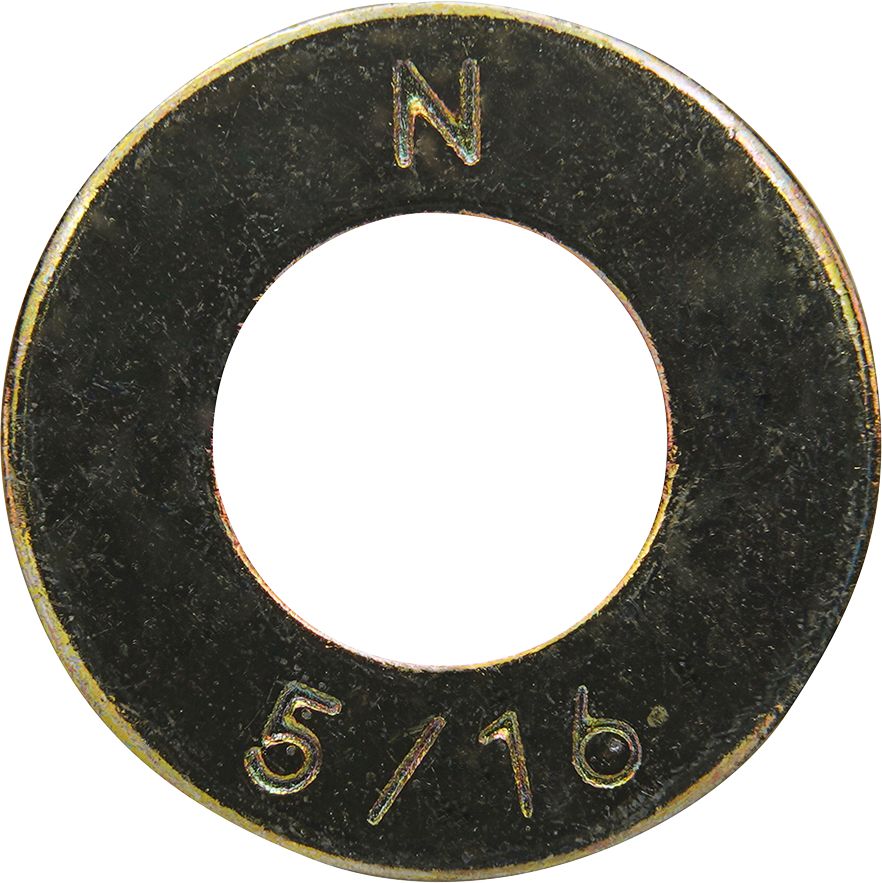

Flat Washer, SAE, Thru-Hardened, Steel, Yellow Zinc Finish, 0.344" ID, 0.688" OD, 0.051 to 0.08" Thickness, 5/16"
(Pack of
100)
SKU:FA88436 Item#: FA88436
The SAE Flat Washer delivers the reliable performance mechanics and auto body shops demand for critical fastening applications. Constructed from 1050 annealed HRPO and hardened to Rc 38/45, this automotive washer resists dishing, bellying, and cracking under heavy loads while distributing pressure evenly across soft materials. The zinc-plated finish with yellow chromate coating provides superior corrosion resistance, ensuring long-lasting durability in harsh automotive environments. With SAE-specified dimensions for a precise fit on standard fasteners, this washer prevents pull-through failures and surface damage while maintaining tight connections that won't loosen under vibration.
• 1050 annealed HRPO*
• Hardened and drawn to Rc 38/45
• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
*Hot rolled, pickled and oiled steel
Frequently Bought Together
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M8
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M8
Couldn't load pickup availability
Fender Washer Standard Steel 1-1/4"
Couldn't load pickup availability
Product Description
The SAE Flat Washer delivers the reliable performance mechanics and auto body shops demand for critical fastening applications. Constructed from 1050 annealed HRPO and hardened to Rc 38/45, this automotive washer resists dishing, bellying, and cracking under heavy loads while distributing pressure evenly across soft materials. The zinc-plated finish with yellow chromate coating provides superior corrosion resistance, ensuring long-lasting durability in harsh automotive environments. With SAE-specified dimensions for a precise fit on standard fasteners, this washer prevents pull-through failures and surface damage while maintaining tight connections that won't loosen under vibration.• 1050 annealed HRPO*
• Hardened and drawn to Rc 38/45
• Zinc-plated to 0.0002" minimum thickness with yellow chromate finish
• Thru-hardened to resist dishing, bellying or cracking
*Hot rolled, pickled and oiled steel
Technical Specifications
| Item#: | FA88436 |
|---|---|
| Nominal Size | 5/16 " |
| Grade | Thru-Hardened |
| Finish | Yellow Zinc |
| Type | Flat Washer |
| I.D. | 0.344 " |
| O.D. | 0.688 " |
| Thickness | 0.051 – 0.080 " |
| Material | Carbon Steel |
| Pattern | SAE |
| Specifications | ANSI B18.22.1 |
| UNSPSC #: | 31161807 |
| TAA Compliant: | No |
| Weight: | 0.43 lb |
