Home Fasteners Multi-Grip Rivet 120° Countersunk Head 1/8"
Fasteners

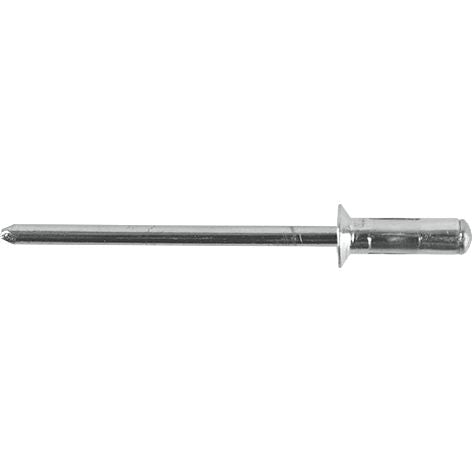

Multi-Grip Rivet, 120° Countersunk Head, Aluminum Body/Steel Mandrel, 1/8" Diameter, 0.093 to 0.25" Grip Range, 0.383" Body Length
(Pack of 100)

Item#: 1543584

Kent Automotive

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Read More
Check Availability

Catalog page#: 11-114

Frequently Bought Together


Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82353

Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm

Item#: 55605

Lockbolt Collar Standard Flange Aluminum 3/16"

Item#: 1543683

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1981

Multi-Grip Rivet Dome Head Aluminum 5/32"

Item#: 1980

Multi-Grip Rivet Dome Head Steel 1/8"

Item#: 1543591

Open End Rivet Dome Head Stainless Steel 3/16"

Item#: 97071

Open End Rivet Large Flange Head SS 1/8"

Item#: 97076

Open End Rivet Dome Head Aluminum 1/4"

Item#: 85109

Front Bumper and Radiator Support Drive Rivet

Item#: KT13537

Miniature Incandescent Bulb 12V 2CP

Item#: P22266

Front Bumper Drive Rivet Plastic 10mm Hole

Item#: KT14285

Product Description

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Technical Specifications

Item#: 1543584
Type Multi-Grip
Head Style 120° Countersunk Head
Material Body / Mandrel Aluminum/Steel
Diameter 1/8 "
Grip Range 0.093 – 0.250 "
Hole Size 0.129 – 0.138 "
Head Diameter 0.209 "
Head Height 0.029 "
Body Length 0.383 "
Shear Strength 165 lb
Tensile Strength 230 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.2205 lb
