Home Fasteners Multi-Grip Rivet Dome Head Aluminum 5/32"
Fasteners

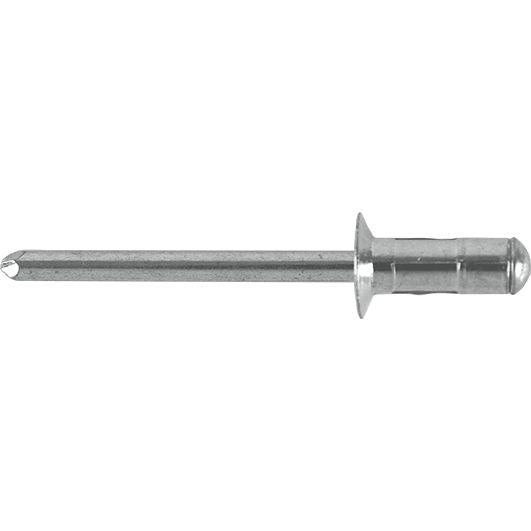

Multi-Grip Rivet, Dome Head, Aluminum Body/Steel Mandrel, 5/32" Diameter, 0.04 to 0.25" Grip Range, 0.375" Body Length
(Pack of 100)

Item#: 1980

Kent Automotive

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

Catalog page#: 11-114

Frequently Bought Together


Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm

Item#: 55608

Open End Rivet Dome Head Aluminum 3/16"

Item#: 485

Hex Flange Bolt Grade 10.9 M6-1 x 16mm

Item#: 28679

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1982

Multi-Grip Rivet Large Flange Head Aluminum 3/16"

Item#: 1543593

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543601

Open End Rivet Dome Head Aluminum 1/8"

Item#: 41612

Lockbolt Collar Standard Flange Aluminum 3/16"

Item#: 1543683

Sealing-Type Blind Rivet Large Flange Head 1/8"

Item#: P61817

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Bumper Fascia General Purpose Split Rivet 3/16"

Item#: KT13747

Product Description

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1980
Type Multi-Grip
Head Style Dome Head
Material Body / Mandrel Aluminum/Steel
Diameter 5/32 "
Grip Range 0.040 – 0.250 "
Hole Size 0.161 – 0.169 "
Head Diameter 0.312 "
Head Height 0.047 "
Body Length 0.375 "
Shear Strength 255 lb
Tensile Strength 375 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.35 lb
